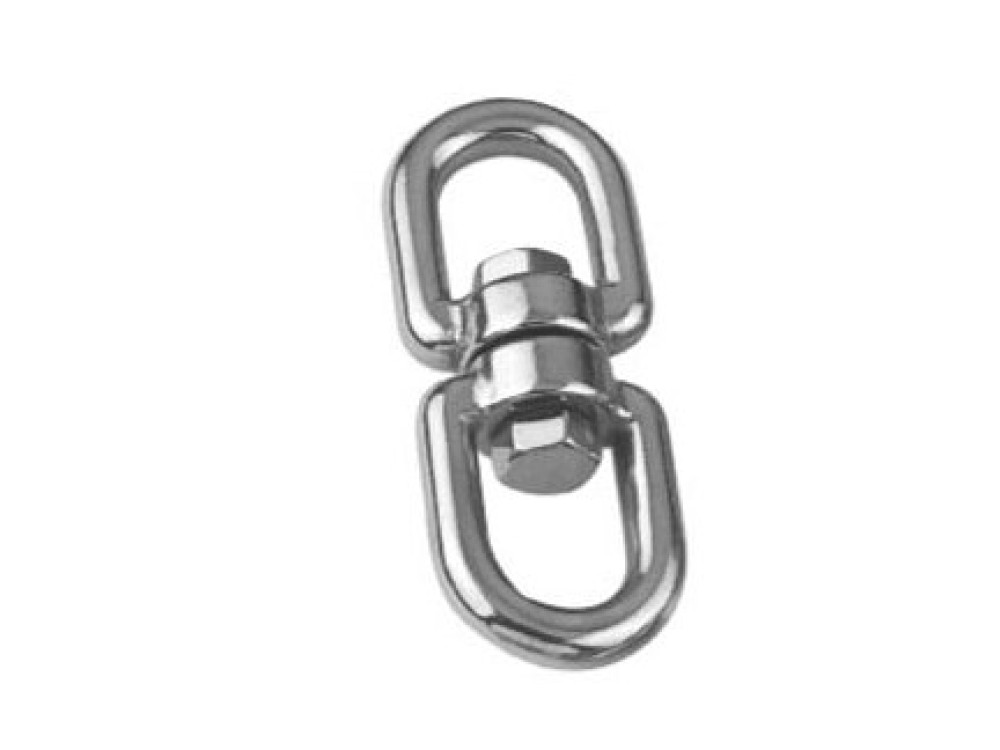

EU Swivel Eye And Eye ,SS304 OR SS316
- Category:Chain Swivel
- Material:Stainless steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China EU Swivel Eye And Eye ,SS304 OR SS316:
|
SIZE |
Φ mm |
A mm |
B mm |
C mm |
SWL kgs |
BL kgs |
| M4 | 4 | 11.5 | 13 | 50 | 113 | 450 |
| M5 | 5 | 13 | 14 | 60 | 163 | 650 |
| M6 | 6 | 14.5 | 15.5 | 66.5 | 300 | 1200 |
| M8 | 8 | 19.5 | 21.5 | 90 | 475 | 1900 |
| M10 | 10 | 23.5 | 26 | 112 | 875 | 3500 |
| M13 | 13 | 33 | 33.5 | 148.5 | 1250 | 5000 |
| M16 | 16 | 38 | 42.5 | 186 | 2125 | 8500 |
| M20 | 19 | 40.5 | 51 | 223 | 2500 | 10000 |
| M22 | 22 | 48.5 | 61 | 258 | 2875 | 11500 |
| M25 | 25 | 65 | 73 | 290 | 3250 | 13000 |
