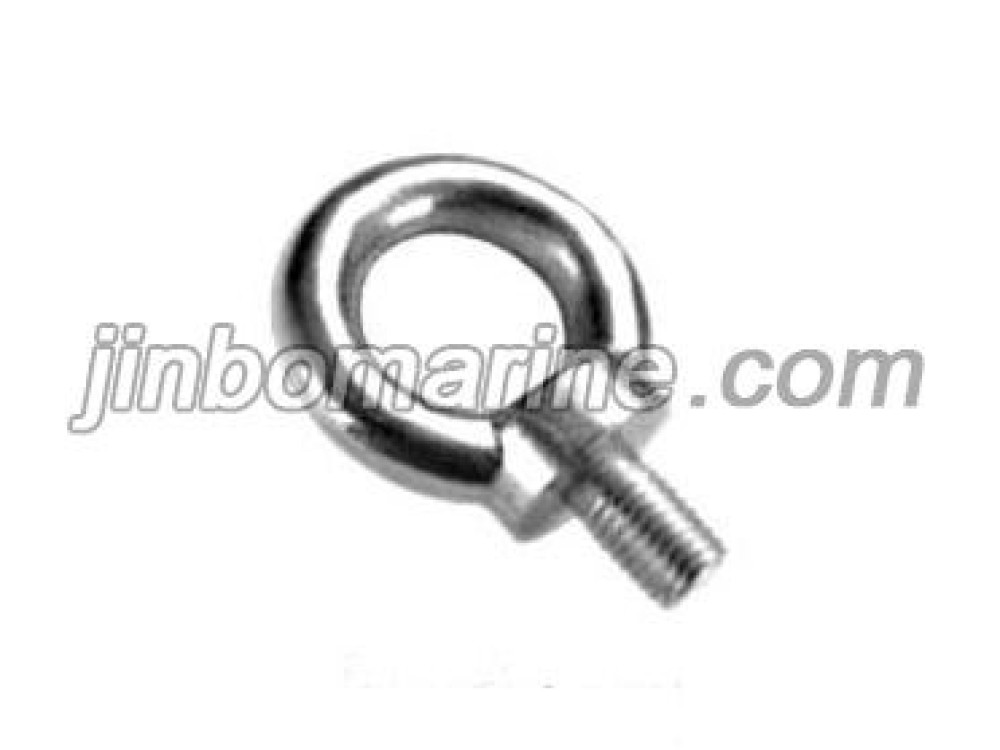

Eye Bolt JIS 1168

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Eye Bolt JIS 1168:

SIZE A
mm 		B
mm 		C
mm 		D
mm 		E
mm 		L
mm 		WLL
T
M6 26 14 5.1 6 27.2 13 0.05
M8 32.6 15 6.3 8 33.3 15 0.08
M10 41 20 8 10 41.5 18 0.15
M12 50 24 10 12 51 22 0.22
M14 56 26.5 11.5 14 56 25 0.3
M16 60 29 12.5 16 60 27 0.45
M18 67 31 14.5 18 66 28 0.5
M20 72 33 16 20 71 30 0.63
M22 81 35 18 22 80.5 35 0.8
M24 90 38 20 24 90 38 0.95
M36 126 67 28 36 122 55 2.3
M42 151 80 35.5 42 150.5 65 3.4
M48 170 90 40 48 170 70 4.5
M64 210 110 50 64 210 90 9
M80 266 130 63 80 263 105 15
M90 302 150 71 90 301 120 18
M100 340 170 80 100 335 130 20
