FA-SPYCY Single Core Flame Retardant Marine Power & Light Cable 0.6/1KV

JIS C 3410-1999 Power & Lighting Cable

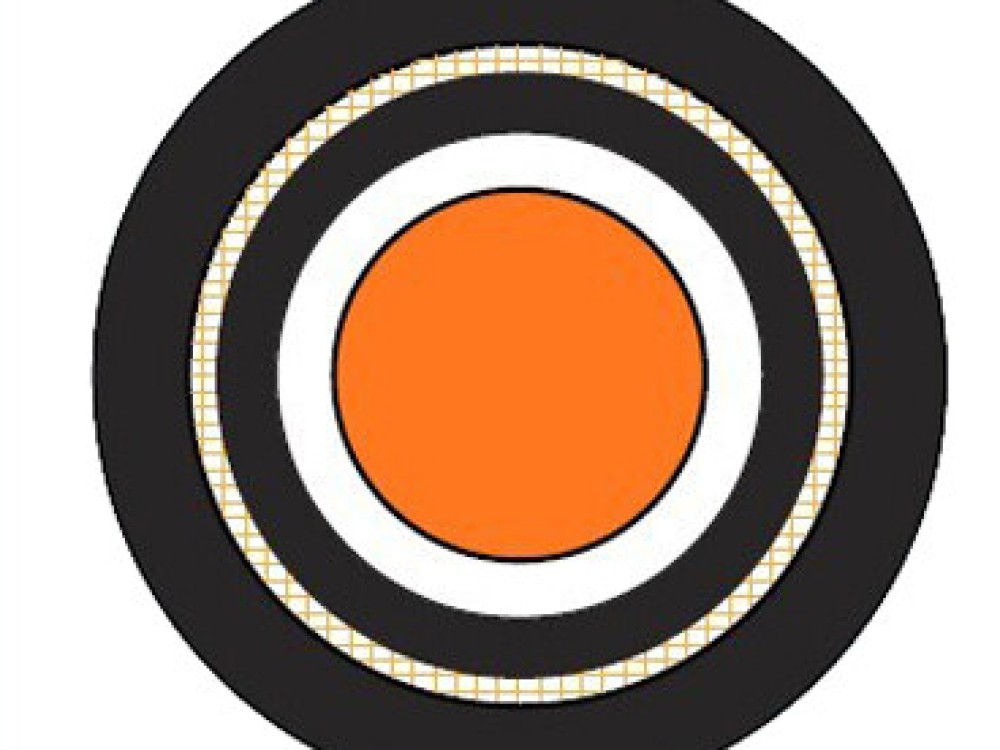

• 0.6/1KV FA-SPYCY Cable is single core EPR insulation PVC Sheath Galvanized Steel Wire Braided flame retardant marine power & lighting cable with protective covering.

• 0.6/1KV FA-SPYC Cable is single core EPR insulation PVC Sheath Galvanized Steel Wire Braided flame retardant marine power & lighting cable.

• 0.6/1KV FA-SPYCBY Cable is single core EPR insulation PVC Sheath Tinned Copper Wire Braided flame retardant marine power & lighting cable with protective covering.

• 0.6/1KV FA-SPYCB Cable is single core EPR insulation PVC Sheath Tinned Copperl Wire Braided flame retardant marine power & lighting cable.

Max Rated Conductor Temperature: 85 ℃

Design : JIC C 3410(1999)

Flammability: IEC 60332-1 & IEC 60332-3 Category A

Number of Conductor: 1Core

Size of Conductor (mm2): 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300

Halogen-free, Low Smoke, Flame retardant

The bending radius for the installation of cables should be not less than the values given as follows：

Type of cable		Minimum bending radius
Up to 1.8/3kV	Unarmored or unbraided
	D ≤ 25mm	4XD
	D > 25mm	6XD
	Metal braid screened or armored	6XD
	Tape screened	8XD
3.6/6kV	Single core	12XD
above	3-core	9XD

The cable is fixed installation, used for power, lighting and control in most area and open deck area in ship.
