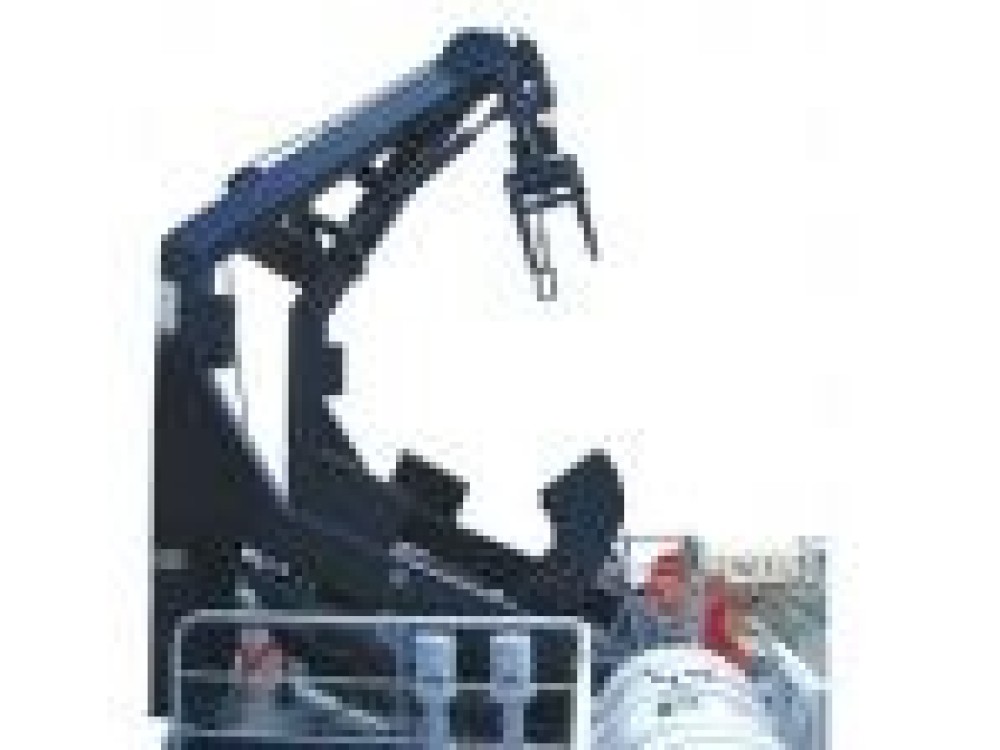

Fast Rescue Boat Landing Davit
- Category:Marine Davit and crane
- Standards:SOLAS, MSC.218(82),MSC81(70), MSC226.(82)
- Certificate:ABS,LR, BV, GL,DNV,RINA, NK, KR, RS, IRS, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Fast Rescue Boat Landing Davit:
Max. Working Load: 28KN
Hoisting Load: 28KN
Lowering Load: 28KN
Hoisting Speed: ≥48 m/min
Lowering Speed: 48-60 m/min
Motor: 45KW
Max. Width: 3125mm

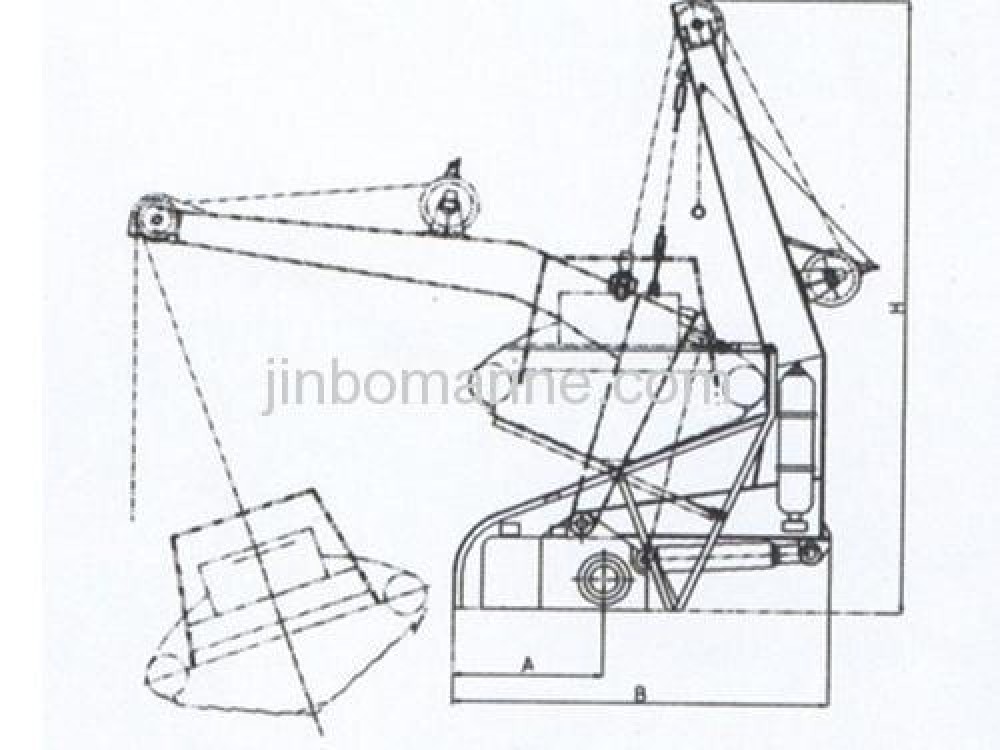

Main Specification
| Type | Hoisting Load | Hoisting Speed | Lowering Load | Lowering speed | Power | Size(mm) | ||
| KN | m/min | KN | m/min | kw | A | B | H | |
| LFR-30 | 15 | ≧48 | 15 | 50-60 | 37 | 2040 | 2520 | 4000 |
| LFR-30 | 21 | ≧48 | 21 | 50-60 | 37 | 2505 | 3100 | 4300 |
| LFR-30 | 27 | ≧48 | 27 | 50-60 | 45 | 3290 | 3900 | 5460 |
| LFR-35 | 35 | ≧48 | 35 | 50-60 | 55 | 3120 | 3490 | 4890 |
| LFR-35 | 55 | ≧48 | 55 | 50-60 | 90 | 3400 | 4100 | 5050 |
