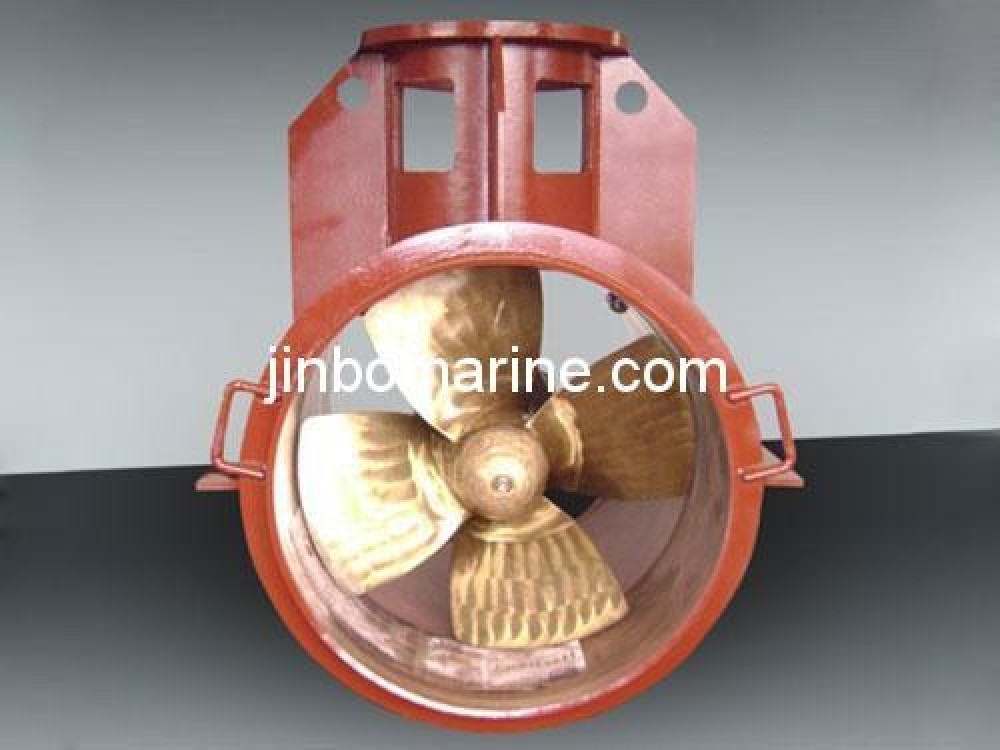

Fixed Pitch Propeller Bow Thrusters
- Category:Bow Thruster
- Certificate:CCS,ABS,LR,BV,DNV etc.
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

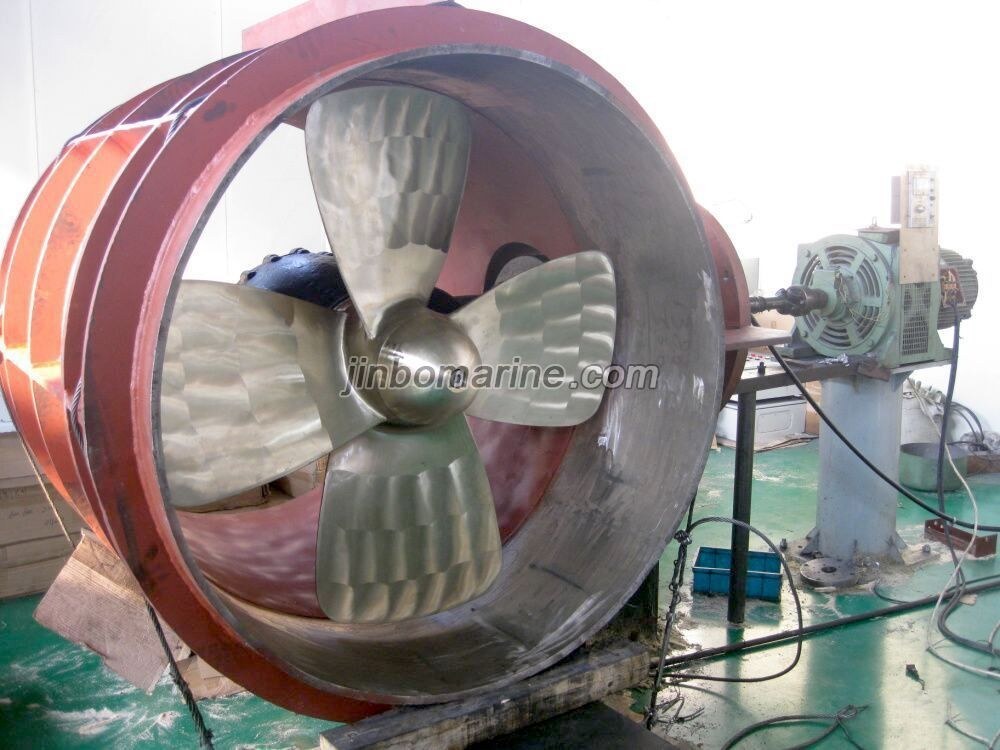

China Fixed Pitch Propeller Bow Thrusters:
Bow thrusters increase the vessel's resistance to forward motion through the water. Bow thruster is a propeller mounted in one or more tunnels in the bow, below the waterline to make maneuvering vessels much easier.
Features:
Very good strength
Strong and durable shaft and seal are adopted,ensure long time
operation.
Low noise and vibration
Provide a comfortable living environment
for sailor on board.
Easy Installation and Periodical Inspection
It has a structure that it is able to weld
anywhere on outer surface of ducted for installation.
Compact new control system can provide easy operation. Customers can choose
various configuration of prime mover, electric motor, diesel engine or
hydraulic motor.
Specification:
| Fixed pitch propeller bow thruster parameters | |||||||||||||
| Model | FP-500 | FP-600 | FP-700 | FP-800 | FP-900 | FP-1000 | FP-1100 | FP-1300 | FP-1480 | FP-1650 | FP-2000 | FP-2400 | |
| Max input power | 63/72 | 90/105 | 135/165 | 180/190 | 200/235 | 280/290 | 315/340 | 445/480 | 560/620 | 680/730 | 1050/900 | 1580/1720 | |
| Ratio | 1.52 | 2.071 | 2.07 | 2.417 | 2.42 | 3.09 | 3.09 | 3.78 | 4.364 | 4.73 | 4.82 | 4.63 | |
| Max input torque | 600 | 900 | 900 | 1400 | 1400 | 2100 | 2100 | 3000 | 3800 | 4500 | 7250 | 15400 | |
| Max input speed | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1750 | 1450/1190 | 980/1190 | |
| Propeller speed | 954/1151 | 700/845 | 700/845 | 600/724 | 600/724 | 469.1/566 | 469.1/566 | 384/463 | 332.3/401 | 307/370 | 301/247 | 211/257 | |
| Propeller diameter | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1300 | 1480 | 1650 | 2000 | 2400 | |
| Max thrust | 10/11.2 | 14.5/16.3 | 20/24.8 | 29.5/30.5 | 31/35.4 | 43/45.2 | 49/53.8 | 67/73 | 88/95 | 105/110 | 165/150 | 250/260 | |
| Cylinder length | 600 | 800 | 800 | 920 | 920 | 1045 | 1045 | 1190 | 1320 | 1446 | 1680 | 1990 | |
| Cylinder internal | 515 | 615 | 715 | 818 | 918 | 1020 | 1120 | 1328 | 1510 | 1680 | 2030 | 2430 | |
