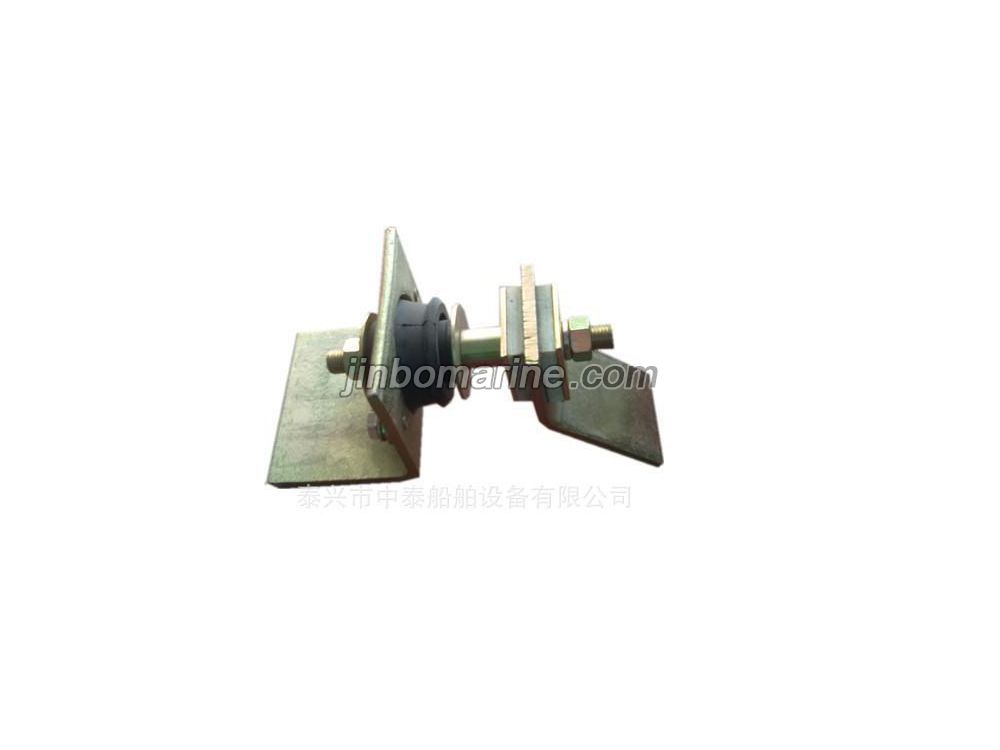

Fixed Suspended Hanger

The elastic elements are made by special type rubber, it has fine vibration resistance and impact resistance.
Advantage: High temperature, low temperature resistance, oil resistance and aging resistance.
The support adopts the insulating cushion so it can receive high load and the higher temperature.
Applicable range: suitable for horizontal or vertical exhaust pipe.

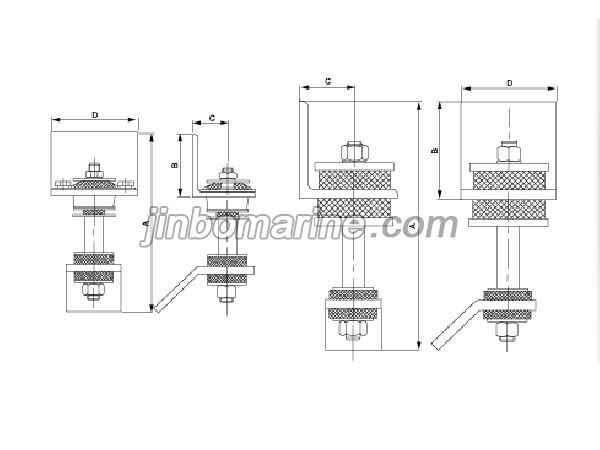

Model	Size				Static Load	Workload
	A(mm)	B(mm)	C(mm)	D(mm)	kgf	kgf
VOP-021	230	80	45	110	600	200
VOP-025	255	100	60	120	700	230
VOP-026	280	100	55	130	800	270
VOP-027	310	125	75	130	1000	350
TS-444-3	320	125	70	120	1000	350
TS-472-3	360	160	90	160	2000	700
