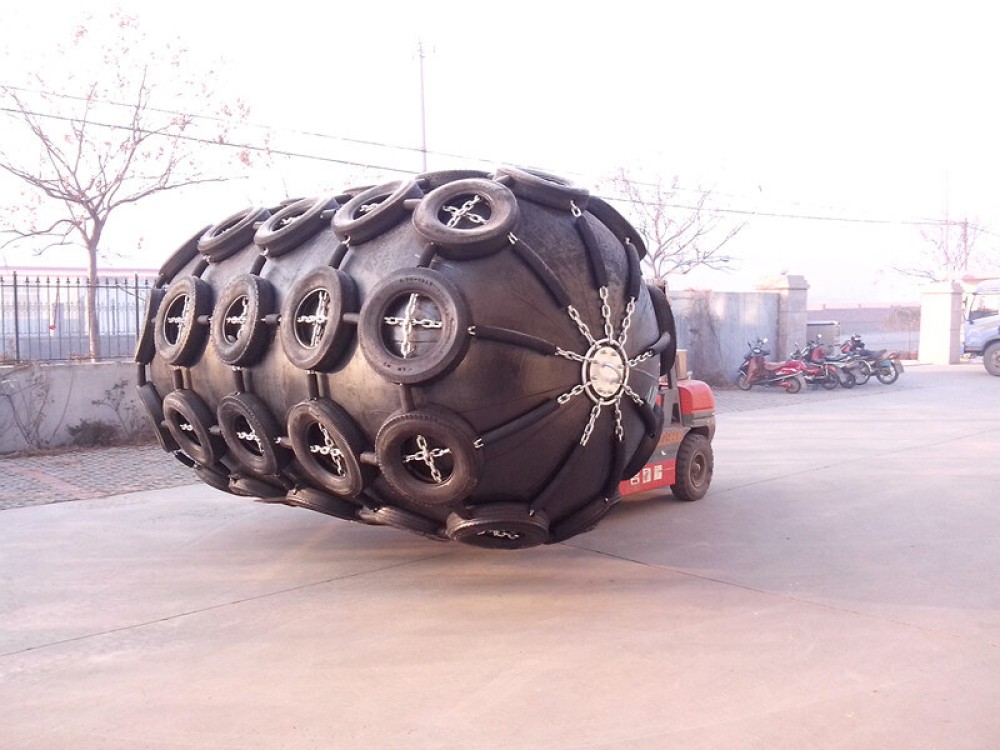

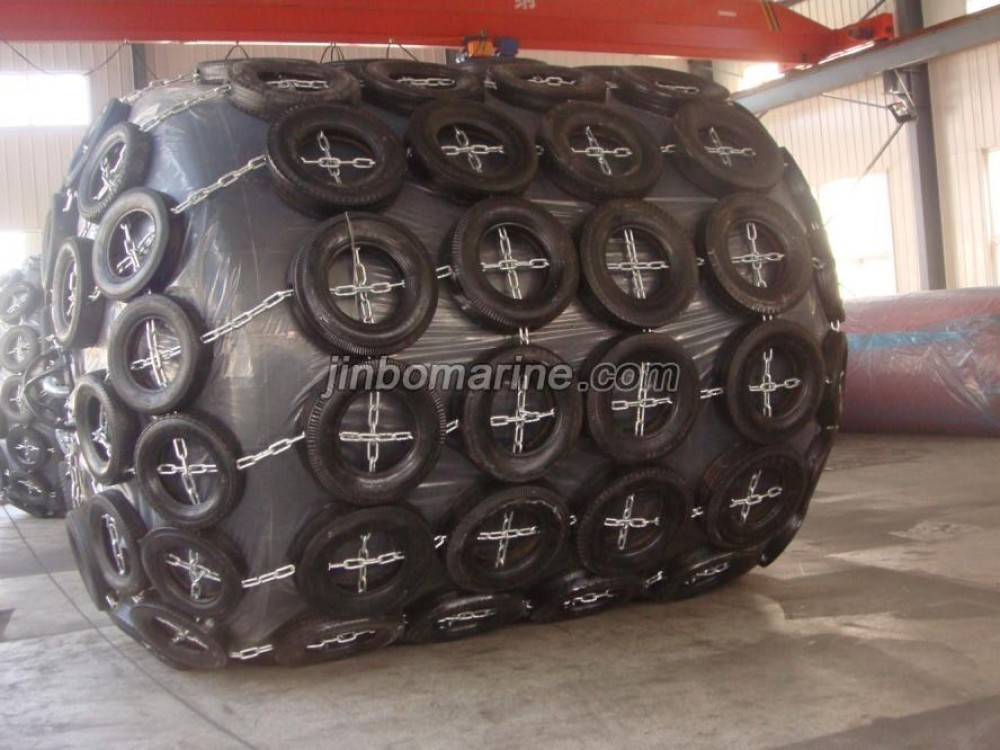

Floating Rubber Fender
- Category:Marine Fender
- Material:rubber
- Standards:ISO 17357-2002
- Certificate:CCS,ABS,DNV,BV,RINA,LR,mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Floating Rubber Fender.pdf
Details
Product Specification
The floating fender is made of synthetic-cord-reinforced rubber sheet,filled with compressed air inside to enable it to float on the water and work as a shock absorber between two ships, or between ships and berthing structure when they come alongside each other on the water.
Feature
Rapid response and emergency fendering
Durable in use.
High energy absorption and low reaction force and surface pressure.
No decline in the rate of energy absorption when obliquely compressed, under normal circumstances, and uniform surface pressure for any contact area.
Low reaction force to prevent damage from repeated impacts against the hull of ship, quay, jetty or mooring rope.
Ability to float and rise and fall with the ebb and flow of tides and the movements of a ship.
High standard of uniform quality in compression performance with no deterioration of the rubber.
Easy installation.
Structure Of Pneumatic Rubber Fender
Application Of Pneumatic Rubber Fender
1.It is installed in the dock or port, it is used when ships berth.
2.It is installed on shipboard, it is used when berthing in the sea.
3.Other applications of Pneumatic Rubber Fender:
a.Can be used as a buoy;
b.Can be used for carrying goods;
c.Can be used as sealing material of pipes.
Size Chart
|
No. |
Size (Diameter x Length) |
Initial pressure |
Energy absorption |
Reaction force |
|
mm x mm |
MPa |
KJ |
KN |
|
|
1 |
500 x 1000 |
0.05 |
6 |
64 |
|
2 |
600 x 1000 |
0.05 |
8 |
74 |
|
3 |
700 x 1500 |
0.05 |
17 |
137 |
|
4 |
1000 x 1500 |
0.05 |
32 |
182 |
|
5 |
1000 x 2000 |
0.05 |
45 |
257 |
|
6 |
1200 x 2000 |
0.05 |
63 |
297 |
|
7 |
1350 x 2500 |
0.05 |
102 |
427 |
|
8 |
1500 x 3000 |
0.05 |
153 |
579 |
|
9 |
1700 x 3000 |
0.05 |
191 |
639 |
|
10 |
2000 x 3500 |
0.05 |
308 |
875 |
|
11 |
2500 x 4000 |
0.05 |
663 |
1381 |
|
12 |
2500 x 5000 |
0.05 |
857 |
1835 |
|
13 |
2500 x 5500 |
0.05 |
943 |
2019 |
|
14 |
3000 x 5000 |
0.05 |
1050 |
2000 |
|
15 |
3000 x 6000 |
0.05 |
1312 |
2488 |
|
16 |
3300 x 4500 |
0.05 |
1175 |
1884 |
|
17 |
4500 x 9000 |
0.05 |
4752 |
5747 |
|
18 |
4500 x 12000 |
0.05 |
6473 |
7984 |
