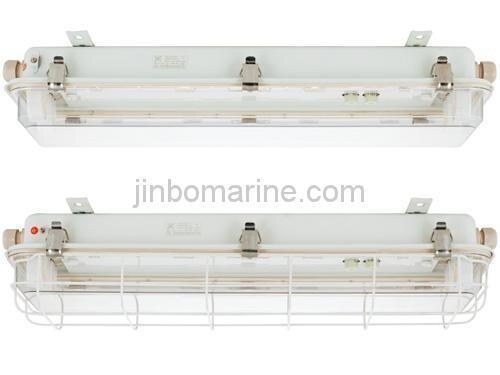

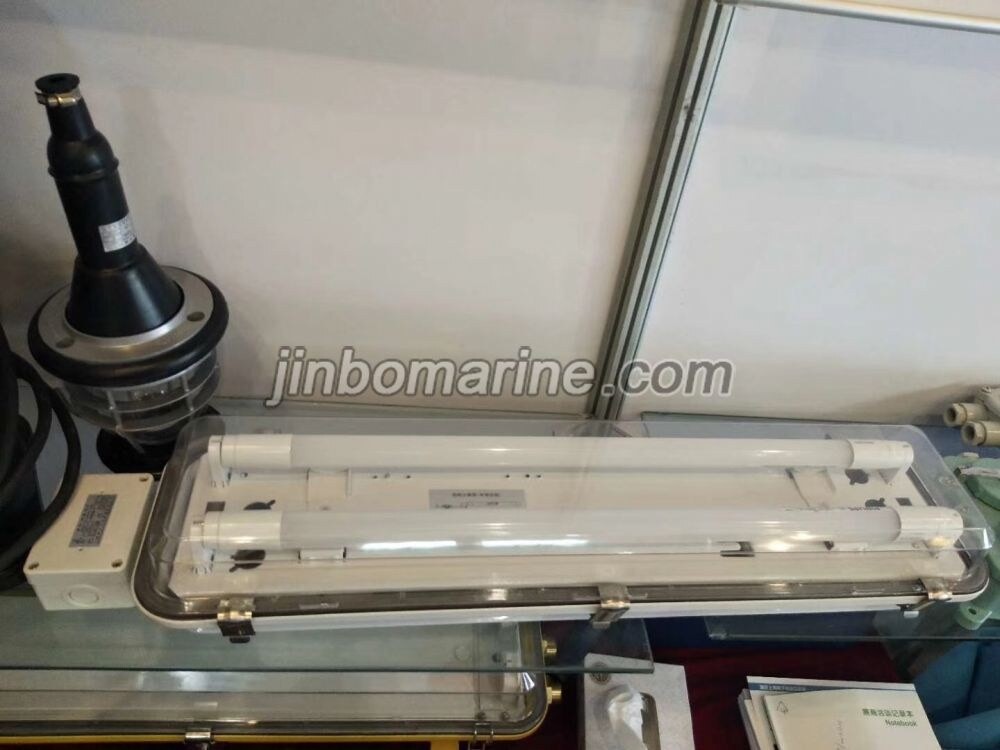

Fluorescent Pendant Light JCY22-2
- Category:Marine Fluorescent Lights
- Material:Steel Plate, PC Material and Seal Structure
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Fluorescent Pendant Light JCY22-2:
Used to illumination of water dripping, water spattering, water coagulating place in ships such as oven cabin, dry cabin tunnel, pipeline and weather deck, environment temperature is -20°C~+55°C.
Standards:
Confirm to IEC600092-306-2009 and GRADE ENTRY NORMS FOR STEEL SHIPS.
Our product approved by the CCS(China Classification Society)
Main Specification:
| Voltage | 110V/60Hz, 220V/50Hz, 220V/60Hz | ||
| Power Factor | >0.85 | ||
| Lamp Holder | G13 | ||
| Cable Diameter | Dia14mm-16mm | ||
| Protection Class | IP56 | ||
| Type | JCY22-2 | JCY22-2E | JCY22-2EF | JCY32-2 | JCY32-2E | JCY32-2EF | JCY42-2 | JCY42-2E | JCY42-2EF |
| Power | 2X20W | 2X20W | 2X20W | 2X30W | 2X30W | 2X30W | 2X40W | 2X40W | 2X40W |
| Weight | 7.2kg | 7.2kg | 7.2kg | 9kg | 9kg | 9kg | 11kg | 11kg | 11kg |

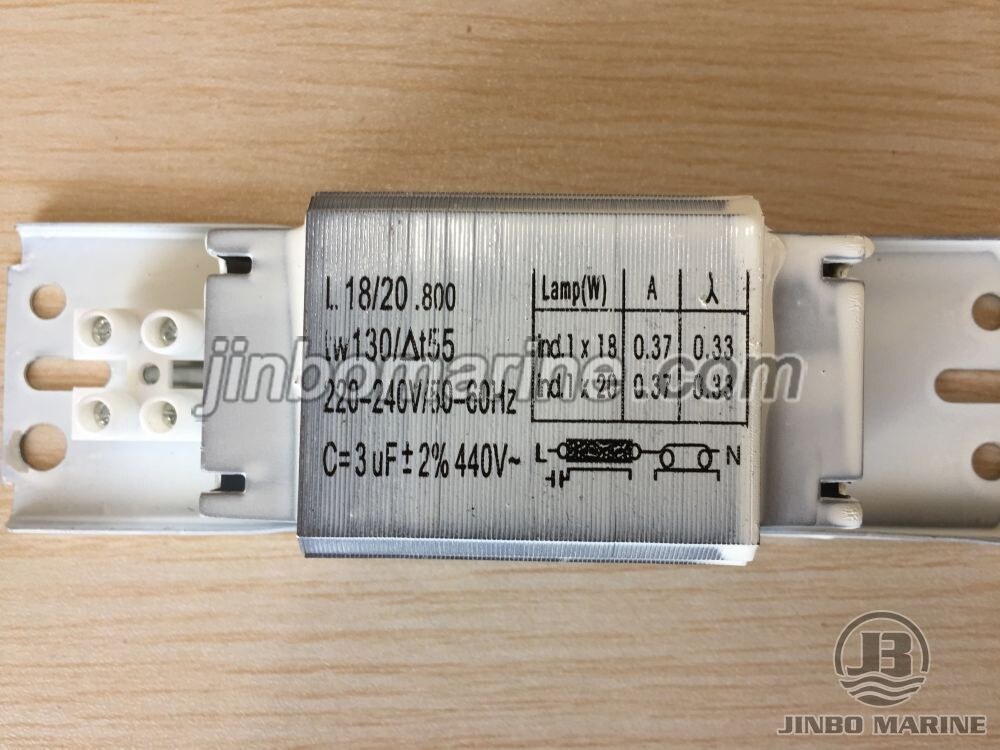

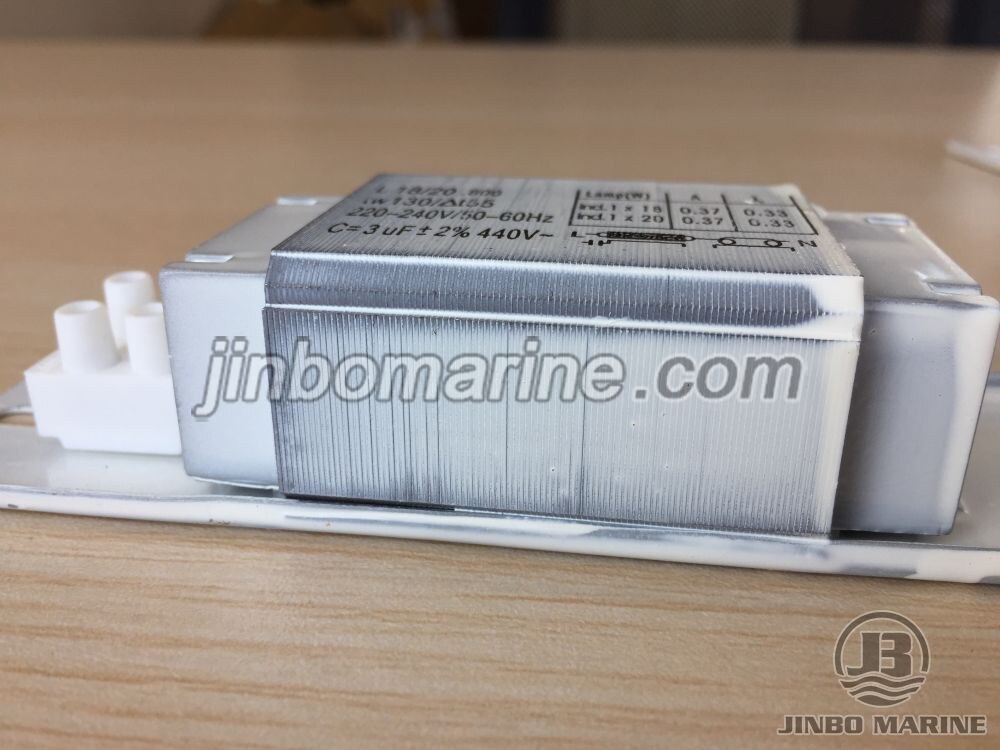

Ballast
