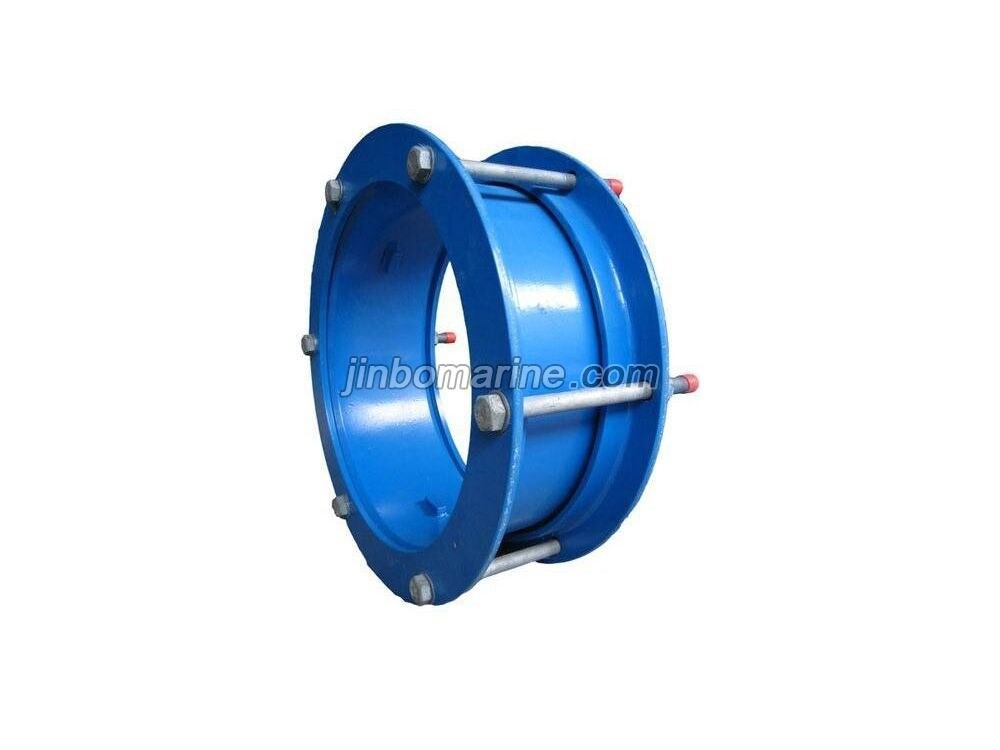

Follower Type Sleeve Expansion Joint

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

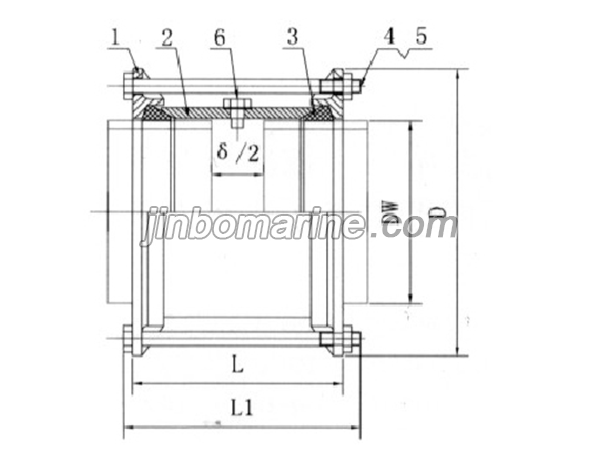

China Follower Type Sleeve Expansion Joint:

No Name Quantity Material
1 Follower 2 QT400-15,Q235
2 Sleeve 1 QT400,Q235
3 Sealing ring 2 NBR,NR,FPM
4 Bolt n Q235,35,304
5 Nut 2n Q235,35,304
6 Bolt 2 (Only use for ship)

Follower Type Sleeve Expansion Joint Main Specifications

DN Pipe O.D Linear movement Overall Dimension
L L1 D
65 76 90 180 208 155
80 89 180 208 165
100 108 180 208 190
114 180 208 195
125 133 180 208 215
140 180 208 225
150 159 180 208 245
168 180 208 255
200 219 180 208 310
250 273 180 223 375
300 325 110 220 273 440
350 355 220 273 470
377 220 273 490
400 406 220 273 520
426 220 273 540
450 457 220 273 570
480 220 273 590
500 508 220 273 625
530 220 273 645
600 610 220 273 730
630 220 273 750
700 720 220 273 850
800 820 150 290 377 965
900 920 290 377 1065
1000 1020 290 377 1165
1200 1220 290 377 1365
1400 1420 290 377 1590
1500 1520 290 377 1690
1600 1620 290 377 1795
1800 1820 290 377 2000
2000 2020 290 377 2200
2200 2220 290 400 2420
2400 2420 290 400 2635
2600 2620 290 400 2835
2800 2820 290 400 3040
3000 3020 290 400 3240
3200 3220 290 400 3440
3400 3420 400 490 3640
3600 3620 400 490 3860
3800 3820 400 490 4080
4000 4020 400 490 4300
