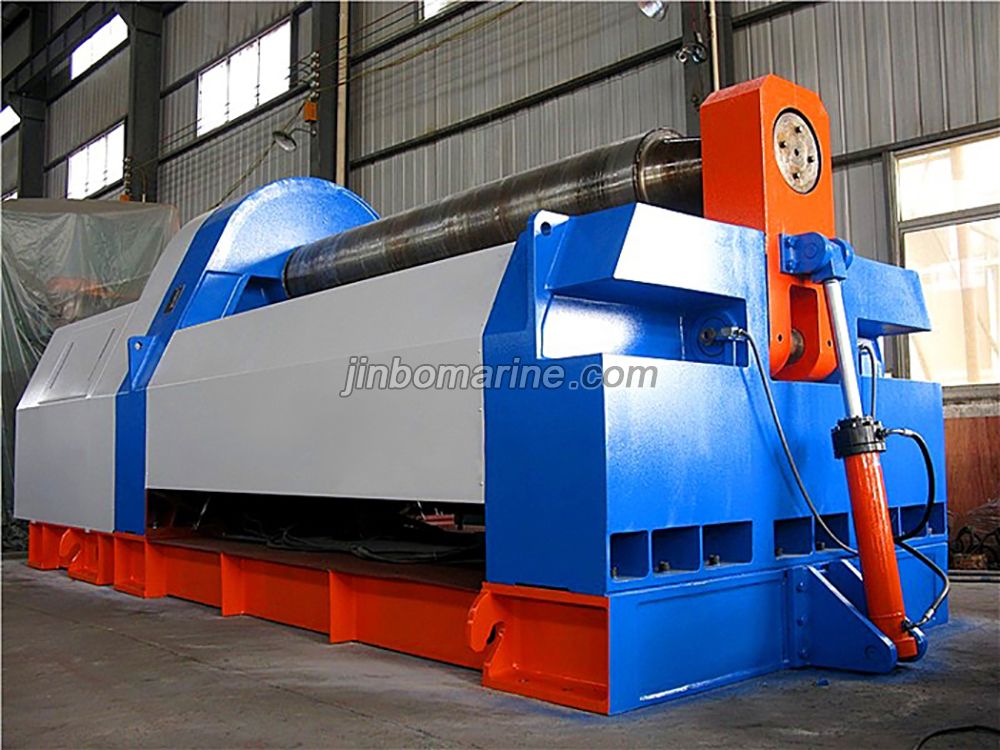

Four Roller Plate Rolling Machine For Shipayd
- Category:Shipbuilding Steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Four Roller Plate Rolling Machine

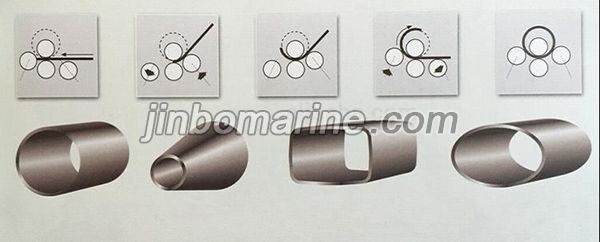

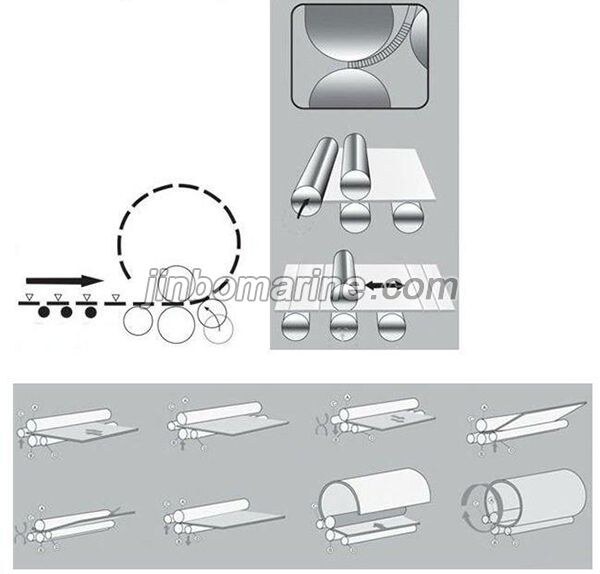

The machine widely used in petroleum, chemical industry, cement, boiler, shipbuilding, aviation, water conservancy, power transmission towers and other machinery and equipment. Its working principle is rotating bending deformation. For the upper roller can be moved no matter up and down, but also horizontally, so no need additional press or equipment, can realize pretending, bending, as well as correction of the work piece.
Four Roller Plate Rolling Machine Technical Specifications
Model | Max | Max | Yielding | Rolling | Min. | Top roll | Lower roll | Side rolls | Speed | Main |
thickness | width | strength | speed | diameter | diameter | diameter | diameter | m/min | power | |
mm | mm | Mpa | m/min | mm | mm | mm | mm | kw | ||
W12-25*2000 | 25 | 2000 | 245 | 4 | 800 | 350 | 320 | 240 | 80 | 22 |
W12-20*2500 | 20 | 2500 | 245 | 4 | 640 | 350 | 320 | 240 | 80 | 30 |
W12-30*2000 | 30 | 2000 | 245 | 4 | 1000 | 400 | 360 | 240 | 80 | 37 |
W12-25*2500 | 25 | 2500 | 245 | 4 | 800 | 400 | 360 | 240 | 80 | 37 |
W12-35*2000 | 35 | 2000 | 245 | 4 | 1200 | 420 | 380 | 210 | 80 | 37 |
W12-30*2500 | 30 | 2500 | 245 | 4 | 1000 | 400 | 360 | 230 | 80 | 37 |
W12-40*2000 | 40 | 2000 | 245 | 4 | 1400 | 480 | 400 | 420 | 80 | 45 |
W12-45*2000 | 45 | 2000 | 245 | 4 | 1600 | 500 | 450 | 280 | 80 | 45 |
W12-35*2500 | 35 | 2500 | 245 | 4 | 1200 | 480 | 400 | 420 | 80 | 45 |
W12-40*2500 | 40 | 2500 | 245 | 4 | 1400 | 500 | 450 | 380 | 80 | 45 |
W12-45*2500 | 45 | 2500 | 245 | 4 | 1600 | 530 | 480 | 450 | 80 | 63 |
W12-35*3000 | 35 | 3000 | 245 | 4 | 1200 | 500 | 450 | 380 | 80 | 45 |
W12-45*3000 | 45 | 3000 | 245 | 4 | 1600 | 560 | 500 | 450 | 80 | 63 |
W12-55*2500 | 55 | 2500 | 245 | 4 | 2000 | 600 | 550 | 500 | 78 | 75 |
W12-55*3000 | 55 | 3000 | 245 | 4 | 2000 | 620 | 560 | 500 | 78 | 75 |
W12-65*3000 | 65 | 3000 | 245 | 4 | 2400 | 670 | 600 | 550 | 78 | 110 |
