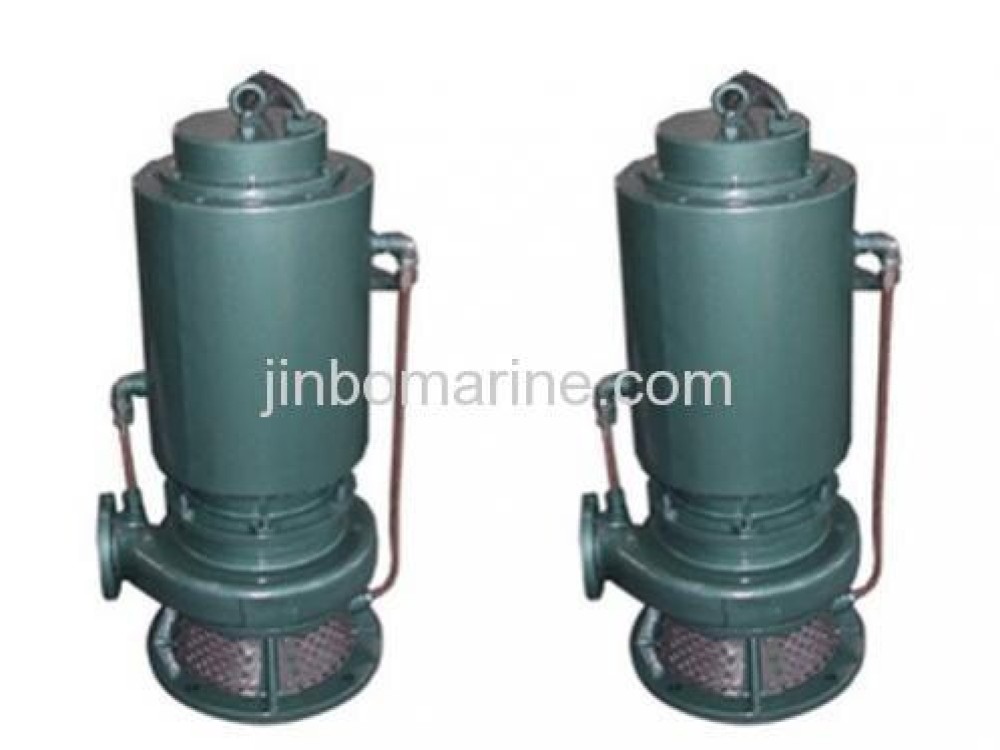

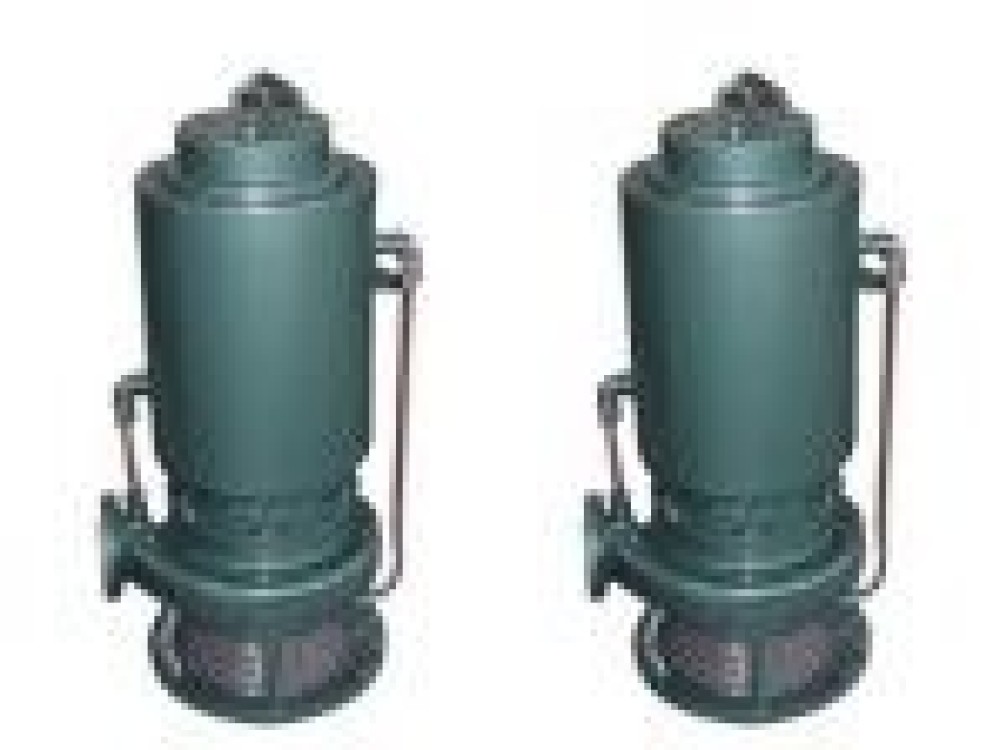

FS Series Marine updraft Subersible Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China FS Series Marine updraft Subersible Pump:

FS series is suitable for conveying temperature not exceed 40 ℃, sediment concentration or insoluble in water volume ratio less than 0.1% of solid particles, particle size is not more than 0.2 mm of water or weak corrosive liquid and water supply and drainage, etc.

Main Specification

Type Capacity Head Power Current Caliber Weight
m3/h m kw A mm kg
FS8.4-40-2.2 8.4 40 2.2 5.7 40 45
FS15-26-2.2 15 26 2.2 5.7 40 49
FS25-17-2.2 25 17 2.2 5.7 50 41
FS65-7-2.2 65 7 2.2 5.7 100 41
FS100-4.5-2.2 100 4.5 2.2 5.7 128 38
FS8.4-50-3 8.4 50 3 7.54 40 47
FS12.5-40-3 12.5 40 3 7.54 40 47
FS15-36-3 15 36 3 7.54 40 46
FS20-30-3 20 30 3 7.54 40 48
FS25-36-3 25 26 3 7.54 50 46
FS40-16-3 40 16 3 7.54 65 47
FS65-10-3 65 10 3 7.54 100 45
FS100-6-3 100 6 3 7.54 128 48
FS160-4-3 160 4 3 7.54 128 43
FS12.5-50-4 12.5 50 4 8.9 40 59
FS25-32-4 25 32 4 8.9 50 57
FS40-21-4 40 21 4 8.9 65 54
FS65-13-4 65 13 4 8.9 100 51
FS200-4-4 200 4 4 8.9 150 52
FS20-50-5.5 20 50 5.5 12 50 75
FS25-40-5.5 25 40 5.5 12 50 76
FS40-28-5.5 40 28 5.5 12 65 83
FS100-12-5.5 100 12 5.5 12 125 65
FS40-40-7.5 40 40 7.5 16.8 65 105
FS65-26-7.5 65 26 7.5 16.8 80 101
FS200-9-7.5 200 9 7.5 16.8 150 100
