Fuel Oil Flow Meter
- Category:Marine Flow Meter
- Material:Cast Iron, Cast Steel, Stainless Steel, Brass(DN10)
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Fuel Oil Flow Meter:

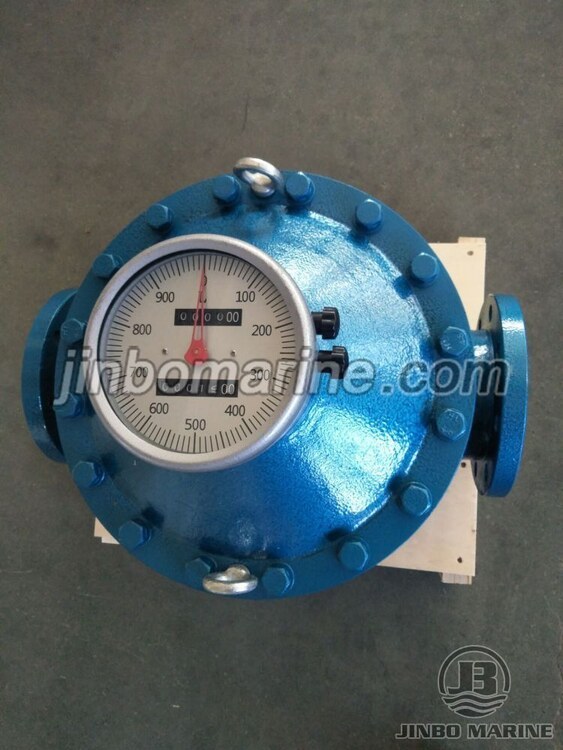

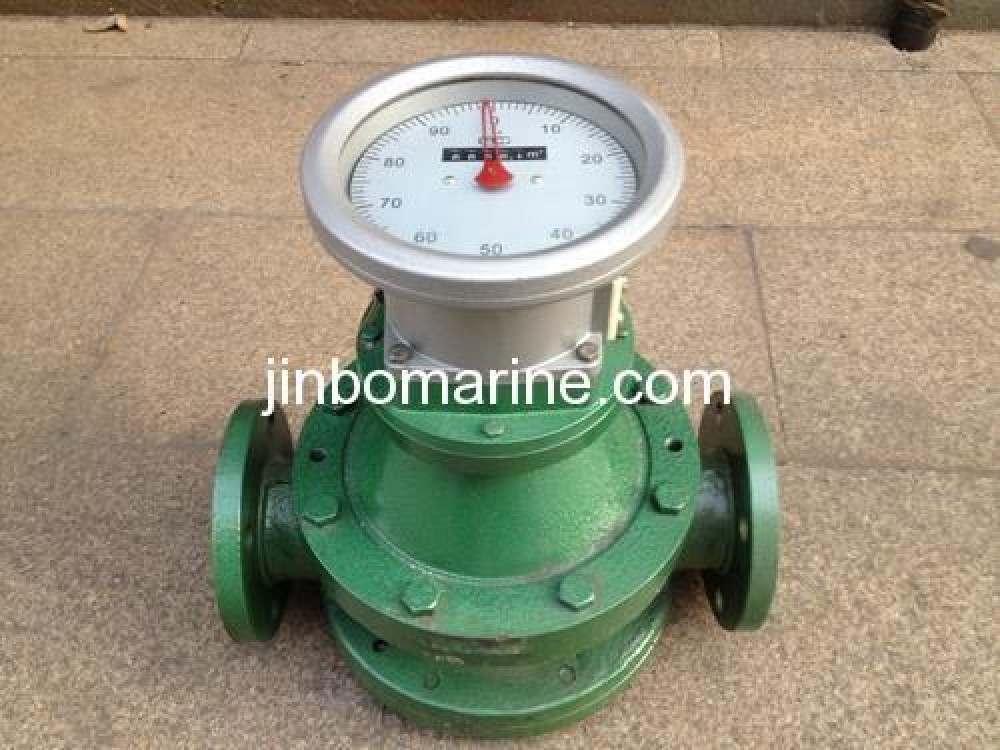

Fuel Oil Flow Meter is Oval Gear Flow Meter, used for oil and chemical liquid, size is from DN10 to DN200.
Material: Cast Iron, Cast Steel, Stainless Steel, Brass(DN10)
Flange: GB/T9119-2000
Input Power: 5V DC, 24mA.
Main Specification:
|
Accuracy
|
+/-0.5% |
| Repeatability | 0.15% |
| Nominal Diameter | DN10, DN15, DN20, DN25, DN40, DN50, DN80, DN100, DN150 |
| Nominal Pressure | 1.6MPa |
| Viscosity | 0.6~200MPa.s |
| Working Temperature | 0~60 Degrees |
| Power Supply | 5VDC, 24mA |
| Output Signal | Square Wave (Pulse) |
