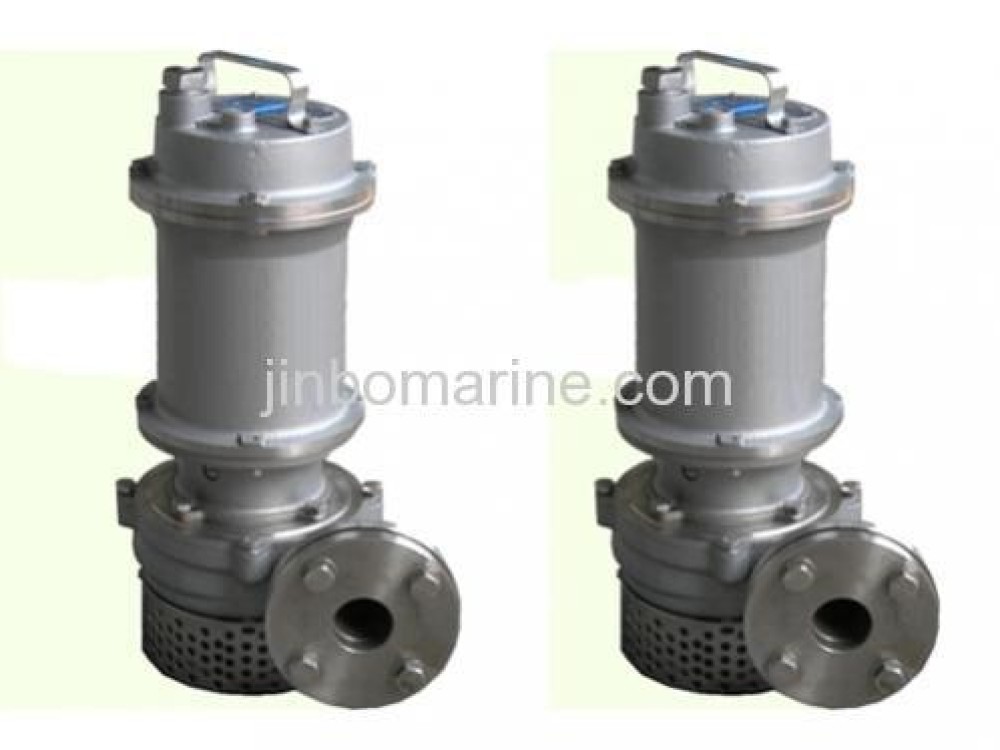

FX Seires Marine Downdraft Submersible Pump
- Category:Sewage Pump
- Certificate:CCS
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Fx Seires Marine Downdraft Sumersible Pump.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China FX Seires Marine Downdraft Submersible Pump:
FX Seires Marine downdraft Submersible Pump are used to transport the freshwater and other purpose the temperature is not higher than 40℃, solid granules is not more than 0.2mm. Impeller with against pine device, Mechanical seal face material USES silicon carbide - silicon carbide, durable, safe and reliable.
Main Specification
| Type | Capacity | Head | Power | Current | Caliber | Weight | |
| (m3/h) | (l/s) | (m) | (kW) | (A) | (mm) | (kg) | |
| FX10-14-0.75 | 10 | 2.8 | 14 | 0.75 | 1.8 | 40 | 40 |
| FX6-25-1.1 | 6 | 1.7 | 25 | 1.1 | 2.73 | 25 | 25 |
| FX10-18-1.1 | 10 | 2.8 | 18 | 1.1 | 2.73 | 40 | 25 |
| FX15-14-1.1 | 15 | 4.2 | 14 | 1.1 | 2.73 | 40 | 25 |
| FX25-9-1.1 | 25 | 6.9 | 9 | 1.1 | 2.73 | 50 | 25 |
| FX40-6-1.1 | 40 | 11.1 | 6 | 1.1 | 2.73 | 65 | 34 |
| FX10-24-1.5 | 10 | 2.8 | 24 | 1.5 | 3.87 | 40 | 32 |
| FX10-34-2.2 | 10 | 2.8 | 34 | 2.2 | 6 | 40 | 39 |
| FX25-30-3 | 25 | 6.9 | 30 | 3 | 6.5 | 50 | 45 |
| FX15-45-4 | 15 | 4.2 | 45 | 4 | 8.6 | 40 | 49 |
| FX25-32-4 | 25 | 6.9 | 32 | 4 | 8.6 | 50 | 49 |
| FX25-40-5.5 | 25 | 6.9 | 40 | 5.5 | 12 | 50 | 64 |
