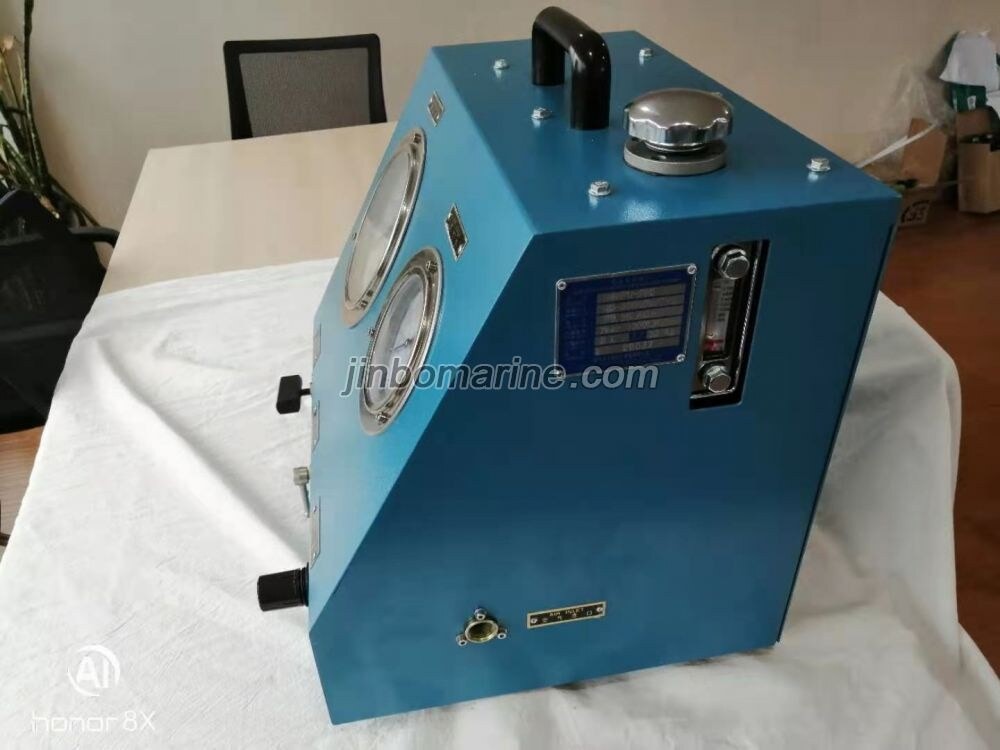

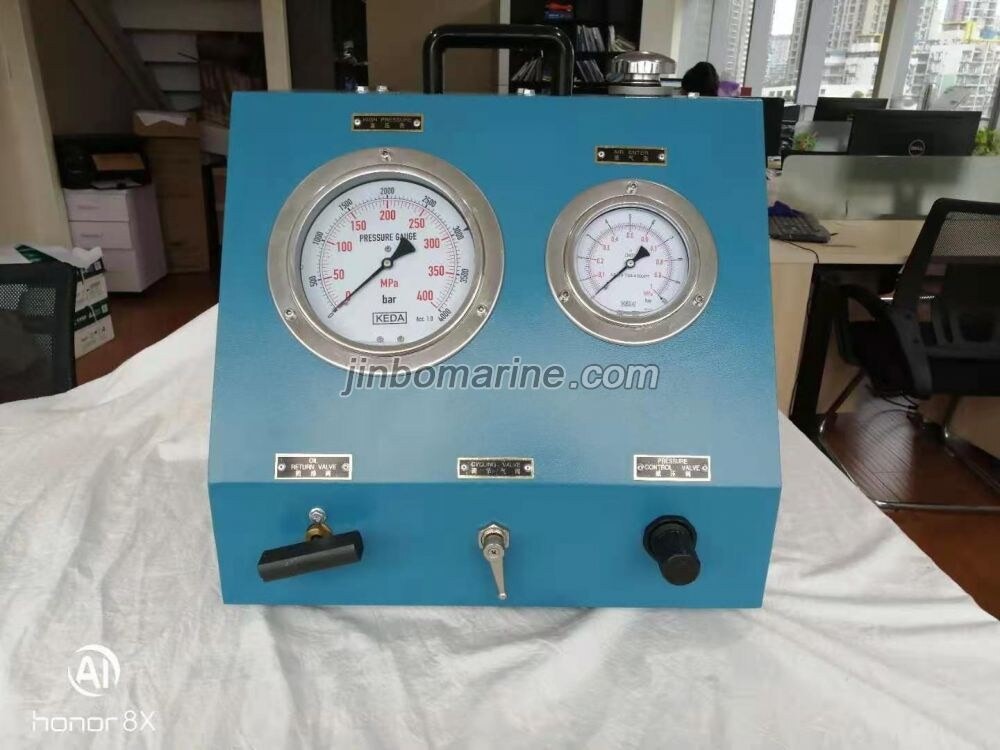

FYB-225 Air Driven High Pressure Hydraulic Pump

Request a Quote Not what you need, please send your RFQs via Email.

Details

China FYB-225 Air Driven High Pressure Hydraulic Pump:

FYB-225 Air Driven High Pressure Hydraulic Pump is a new type of hydraulic stretching and pressing equipment. It transforms the lower air pressure into pressure oil and becomes an ideal power source.

FYB series hydraulic booster pump has the advantages of high output pressure, simple operation, safe and reliable, easy to carry and so on. It can be widely used in large and medium-sized mechanical screw fastening, large transmission parts and keyless matching of structural parts in metallurgical mining, petrochemical industry, shipbuilding industry, locomotive and vehicle manufacturing industry. It is an ideal tool for assembling and matching various large and medium-sized machines.

Technical data:

Model FYB-225
Weight 28KG(net weight)
Size 430*370*415 mm
Output pressure Maximum 225MPa (input air pressure 9bar)
Pump working speed About. 450 cydles per
minute, input pressure 8bar
Tank capacity 4.5L
Air consumption 1.05 liters 1 minutes,input pressure 8bar
Maxi flow (At no pressure) About 0.35 liters I mins,
input pressure 8bar
Oil supply per circle 0.8 mliliter (0.049 cubic inches)
