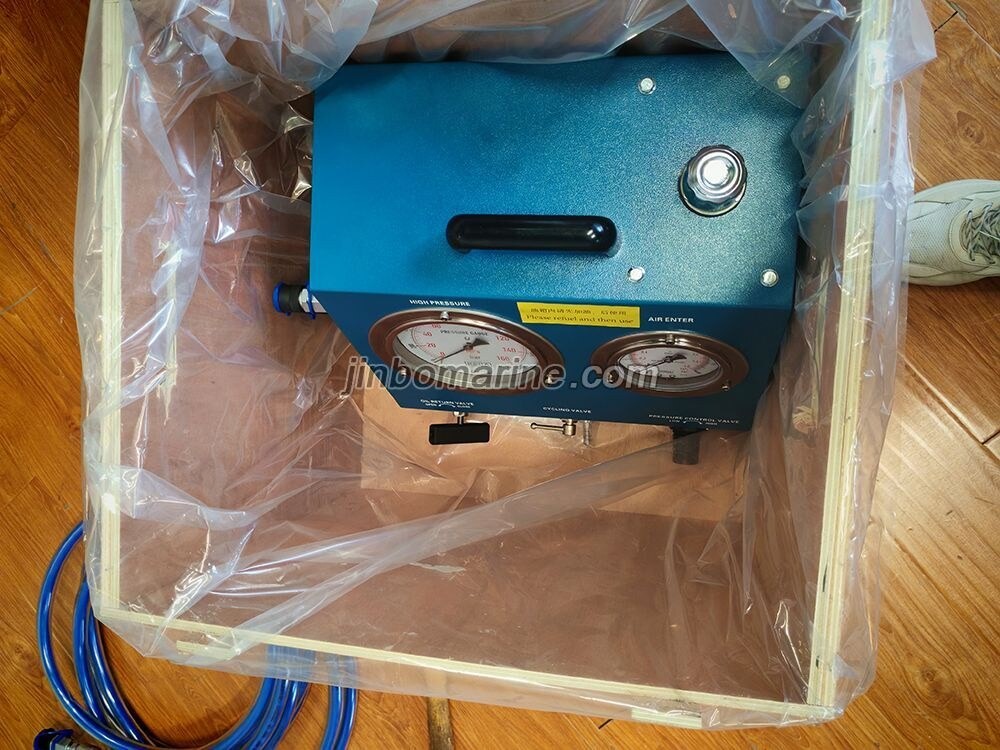

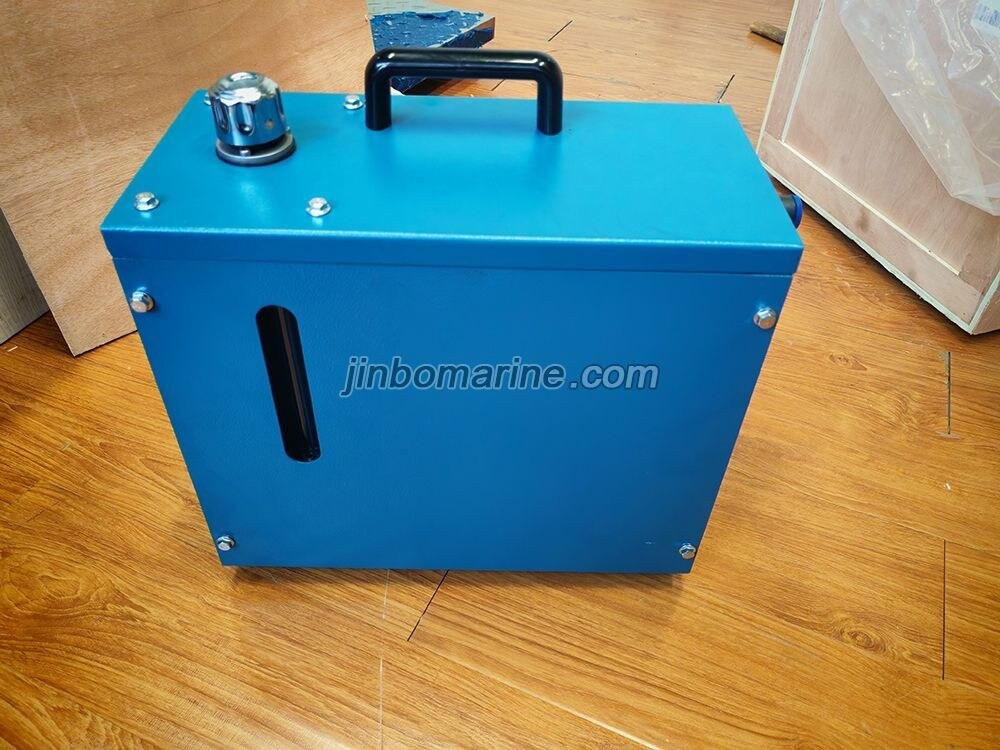

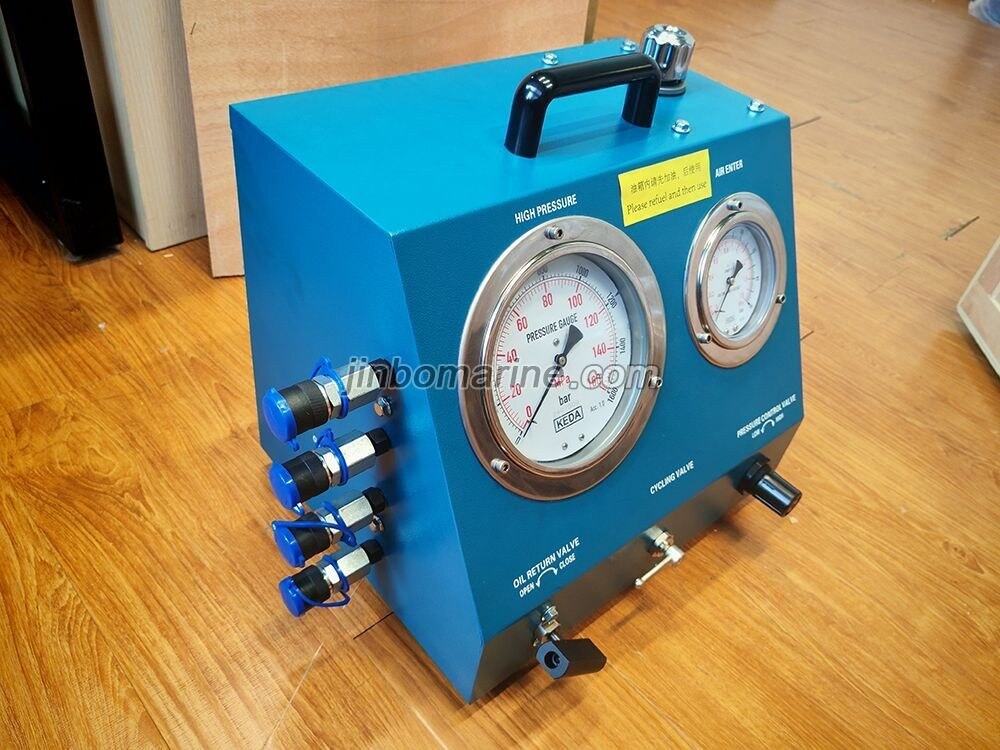

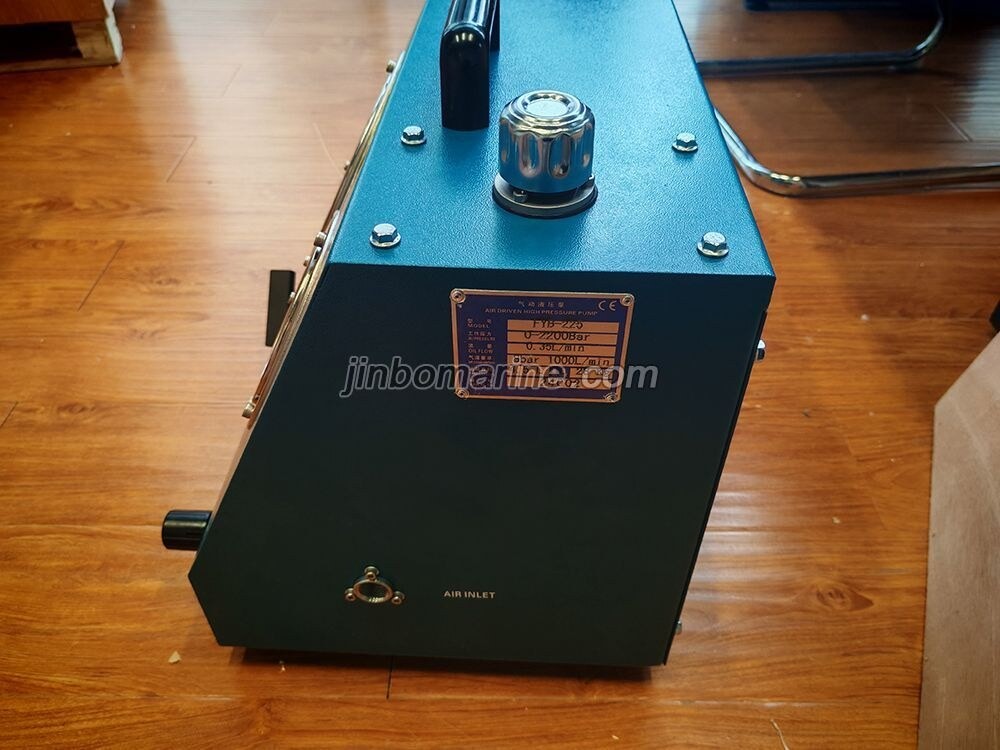

China FYB-225 with 4 Outlets Air Driven High Pressure Hydraulic Pump:
FYB-225 Air Driven High Pressure Hydraulic Pump With four ways outlets:
FYB-225 Air Driven High Pressure Hydraulic Pump is a new type of hydraulic stretching and pressing equipment. It transforms the lower air pressure into pressure oil and becomes an ideal power source.
FYB series hydraulic booster pump has the advantages of high output pressure, simple operation, safe and reliable, easy to carry and so on. It can be widely used in large and medium-sized mechanical screw fastening, large transmission parts and keyless matching of structural parts in metallurgical mining, petrochemical industry, shipbuilding industry, locomotive and vehicle manufacturing industry. It is an ideal tool for assembling and matching various large and medium-sized machines.
| Model | FYB-225 |
| Weight | 28KG(net weight) |
| Size | 430*370*415 mm |
| Output pressure | Maximum 225MPa (input air pressure 9bar) |
| Output port | 4PCS |
| Pump working speed | About. 450 cydles per |
| minute, input pressure 8bar | |
| Tank capacity | 4.5L |
| Air consumption | 1.05 liters 1 minutes,input pressure 8bar |
| Maxi flow (At no pressure) | About 0.35 liters I mins, |
| input pressure 8bar | |
| Oil supply per circle | 0.8 mliliter (0.049 cubic inches) |

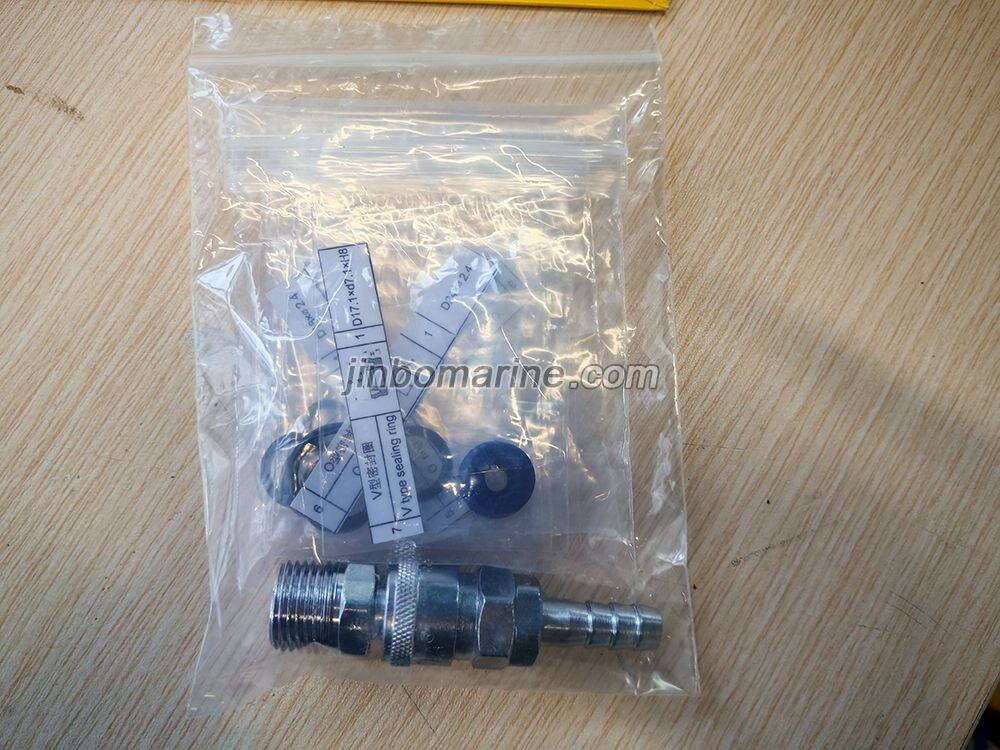

Spar parts kit:

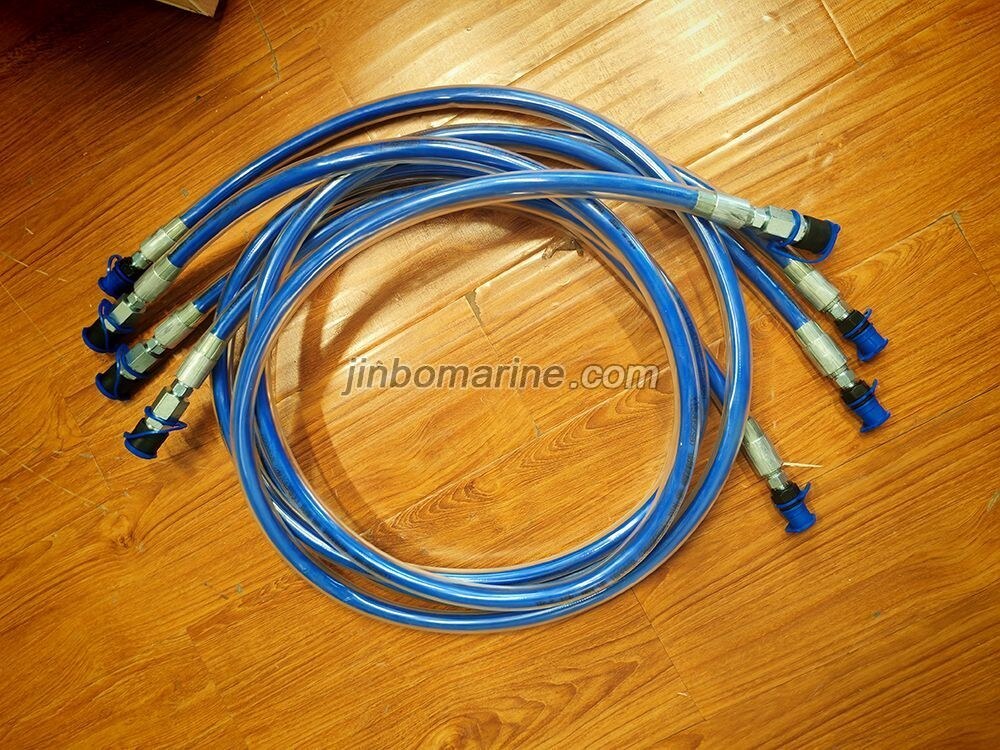

2 meters High pressure pipe 4PCS
