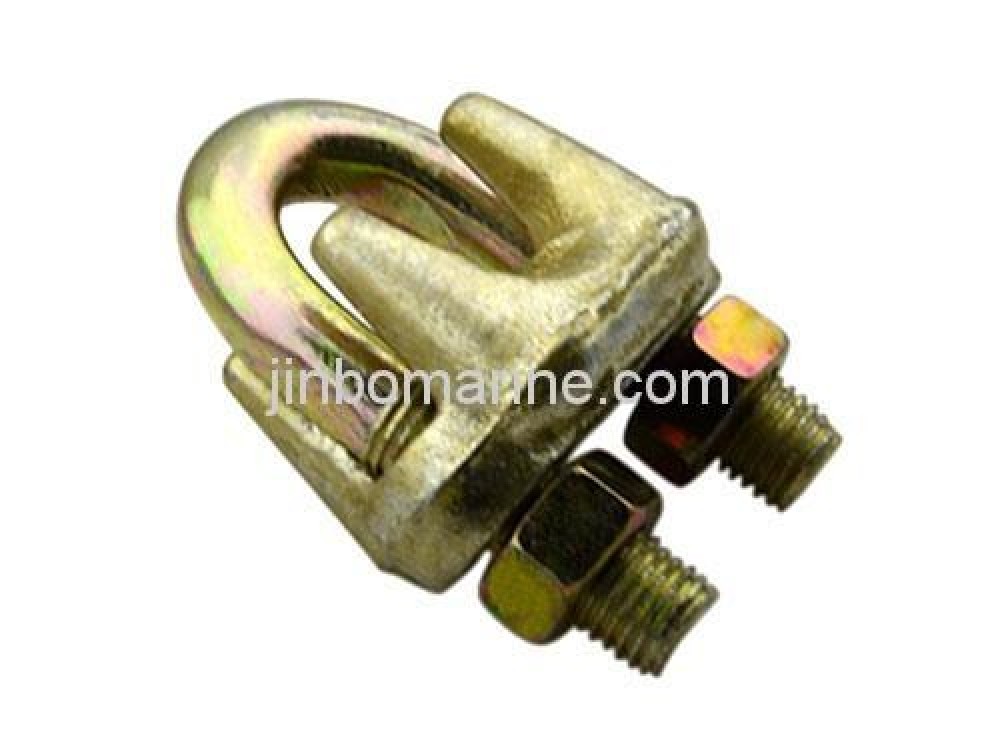

Galv Malleable Wire Rope Clips Type A

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Similar Name

Malleable wire rope clips type A

Malleable wire rope clips clamps A

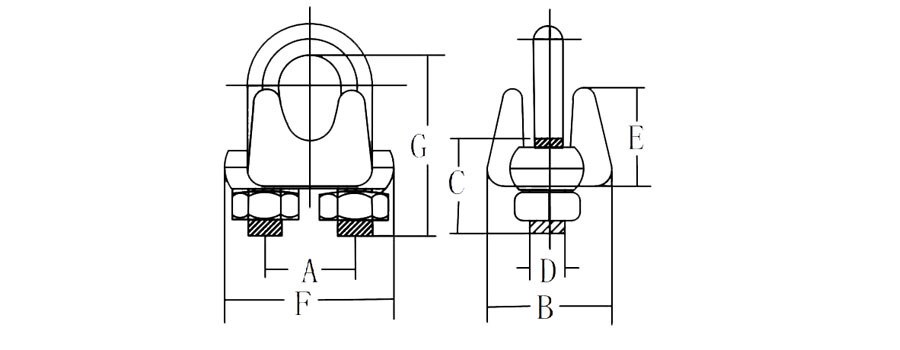

Size Table

Size mm A B C D E F G 100/WT kg
6 12 17 14 5 14 23 24 2.5
8 15 21 16 6 17 28 30 4.5
10 19 28 20 8 21 38 37 9
12 24 34 25 10 27 45 47 18
15 29 40 30 12 32 52 56 28
20 36 47 36 14 38 62 70 47
22 40 52 39 16 43 69 77 62
25 43 56 44 18 50 76 85 85
28 48 62 48 20 57 85 95 120
32 55 67 51 22 61 93 108 157
40 64 81 62 24 73 111 120 261
45 72 88 70 27 86 123 137 363
50 80 95 80 30 95 135 154 480
