Gasoline high pressure water pump
- Category:Gasoline engine driven water pump
- Standards:Standard
- Packing Details:Standard packing
- Delivery Time:7 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

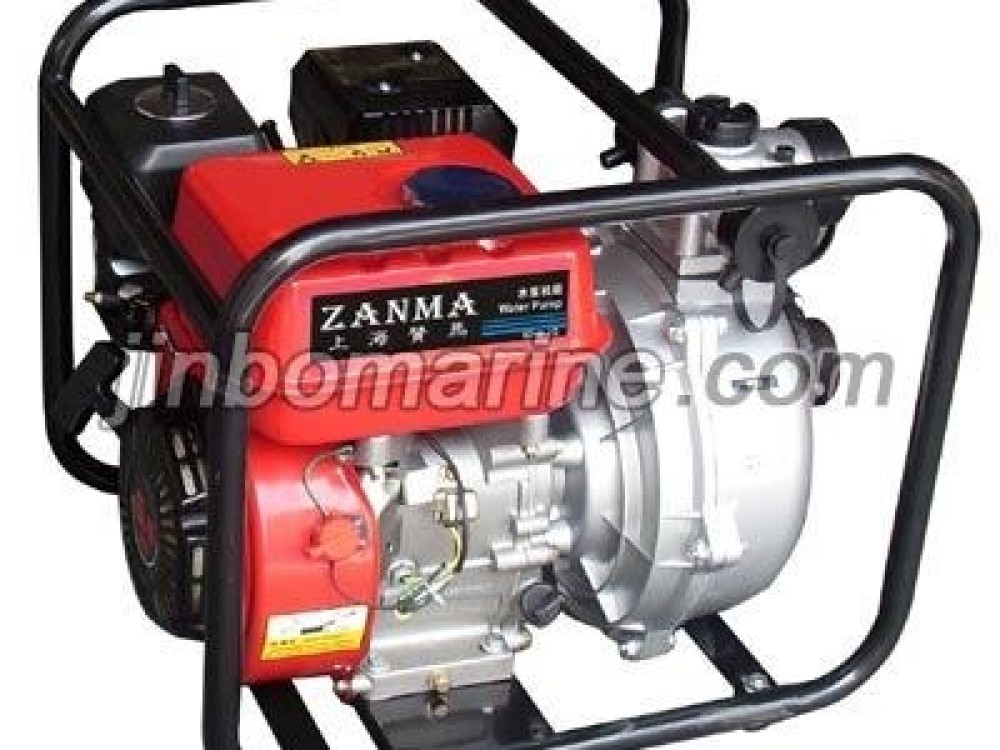

Gasoline high pressure water pump
Parameter
| Gasoline high pressure water pump | ||||
| Set | Model | 40HB-15G | 50HB-2G | 80HB-3G |
| Name | Gasoline high pressure water pump | |||
| Inlet/Outlet diameter | 40mm(1.5") | 50mm(2") | 80mm(3") | |
| Cont. Capacity(m3/h) | 20 | 30 | 40 | |
| Cont. Head lift(m) | 55 | 65 | 80 | |
| Max.Suction head(m) | 8 | 8 | 8 | |
| Engine | Engine model | 170F | 170F | 188F |
| Engine type | Single cylinder,4-stroke,air cooled gasoline engine | |||
| Displacement(CC) | 208 | 208 | 398 | |
| Max.output power(HP) | 7.5 | 7.5 | 7.5 | |
| Rated spee(RPM) | 3600 | 3600 | 3600 | |
| Fuel consumption ratio(g/kw.h) | <395 | <395 | <390 | |
| starting method | Recoil start | |||
| Fuel tank capacity(L) | 3.6 | 3.6 | 6 | |
| Options | Electric starter | N/A | N/A | Available |
| Oil annunciator | Available | Available | Available | |
| Pack | Packing size(mm) | 520x395x450 | 530x420x470 | 650x460x530 |
| Net weight(Kgs) | 23 | 26 | 42 | |
| Gross weight(Kgs) | 25 | 28 | 46 | |
| 20FT Qty | 335 | 295 | 176 | |
