GB2032 Flanged Fire Hydrant
- Category:Fire Hydrant
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

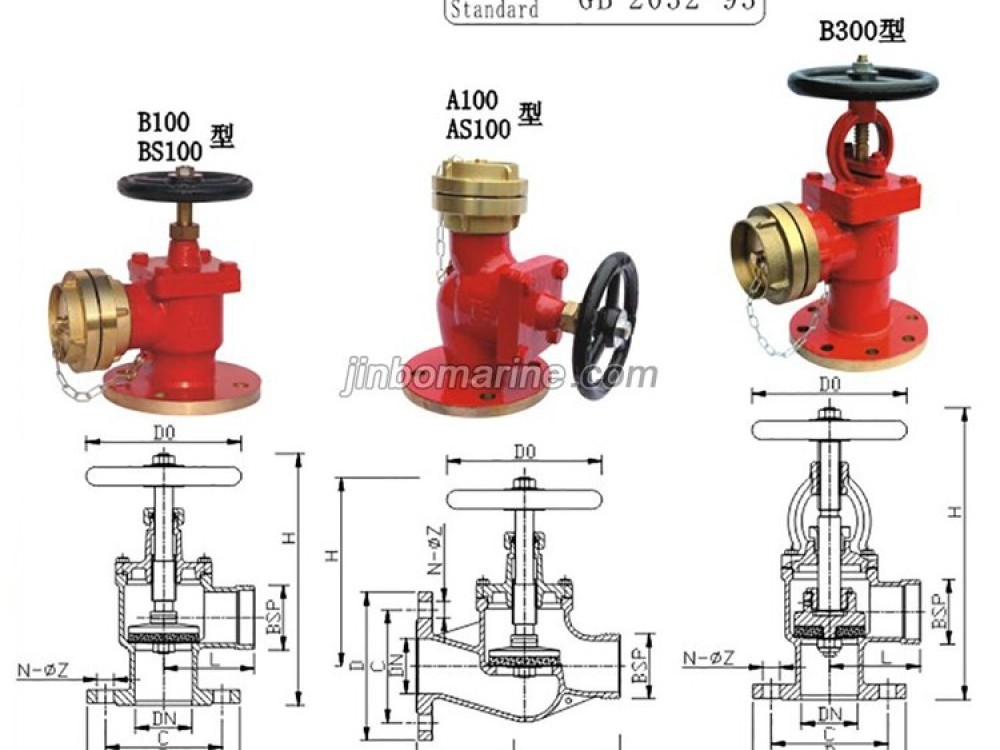

Model number | Nominal pressure(PN) | Overall dimensions | Hand wheel | Flange size | |||||
L | H | BSP | D0 | D | C | N-ΦZ | Flange standard | ||
A10040 | PN10 | 160 | 55 | 1 1/2"(BSP) | Φ100 | Φ125 | Φ93 | 6-Φ15 | GB569 |
B10040 | 68 | 210 | |||||||
A10050 | 180 | 170 | 2"(BSP) | Φ140 | Φ135 | Φ103 | |||
B10050 | 80 | 230 | |||||||
A10065 | 205 | 185 | 2 1/2"(BSP) | Φ160 | Φ155 | Φ123 | |||
B10065 | 95 | 245 | |||||||
AS10040 | PN10 | 160 | 155 | 1 1/2"(BSP) | Φ100 | Φ150 | Φ110 | 4-Φ18 | GB2501 |
BS10040 | 68 | 210 | |||||||
AS10050 | 180 | 170 | 2"(BSP) | Φ140 | Φ165 | Φ125 | |||
BS10050 | 80 | 230 | |||||||
AS10065 | 205 | 185 | 2 1/2"(BSP) | Φ160 | Φ185 | Φ145 | |||
BS10065 | 95 | 245 | |||||||
B30040 | PN30 | 68 | 245 | 1 1/2"(BSP) | Φ100 | Φ125 | Φ93 | 6-Φ15 | GB569 |
B30050 | 80 | 270 | 2"(BSP) | Φ140 | Φ135 | Φ103 | |||
B30065 | 95 | 290 | 2 1/2"(BSP) | Φ160 | Φ170 | Φ132 | 8-Φ18 | ||
B30080 | 100 | 395 | 3"(BSP) | Φ200 | Φ185 | Φ147 |
