GCD Bulkhead transmission devices
- Category:Marine Shaft
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China GCD Bulkhead transmission devices:
It is suitable for transmission of power between airtight cabins of small and medium vessels. The device conform to ship’s requirement.It is suitable for the pump shaft of vessel that transport crude oil,petroleum,chemical liquid,or other shafting rhrough engine room,watertight bulkhead .

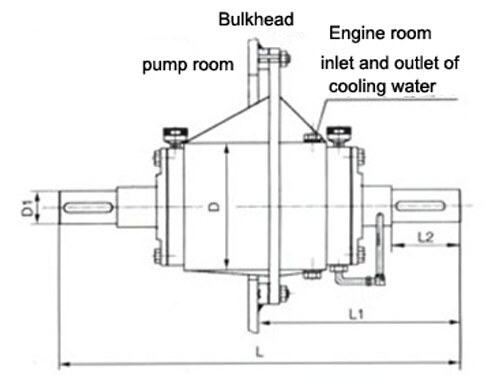

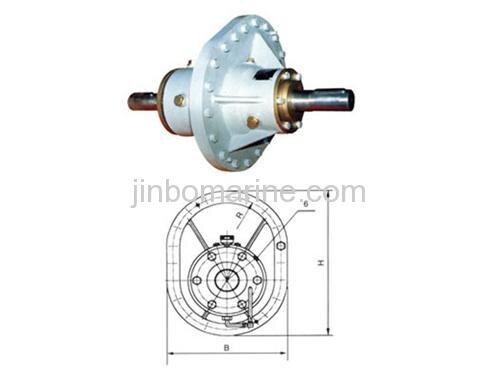

| Model |
cooling water
consumption (m3/h) |
L | H | B | L1 | L2 | D | R | D1 | Weight(kg) | Inlet and outlet of cooling water |
| GCD-30 | 1 | 580 | 550 | 420 | 280 | 58 | 235 | 187.5 | Ø30 | 100 | M14x1.5 |
| GCD-40 | 1 | 640 | 550 | 420 | 310 | 82 | 235 | 187.5 | Ø40 | 109 | |
| GCD-50 | 1 | 680 | 550 | 420 | 330 | 82 | 235 | 187.5 | Ø50 | 126 | |
| GCD-60 | 1 | 720 | 550 | 420 | 350 | 105 | 295 | 187.5 | Ø60 | 133 | |
| GCD-70 | 1 | 760 | 550 | 420 | 380 | 105 | 295 | 187.5 | Ø70 | 150 | |
| GCD-80 | 1 | 800 | 550 | 420 | 390 | 130 | 295 | 187.5 | Ø80 | 180 | |
| GCD-90 | 1.5 | 880 | 550 | 420 | 410 | 130 | 295 | 187.5 | Ø90 | 230 | |
| GCD-100 | 1.5 | 930 | 670 | 540 | 480 | 165 | 351 | 245 | Ø100 | 260 |
