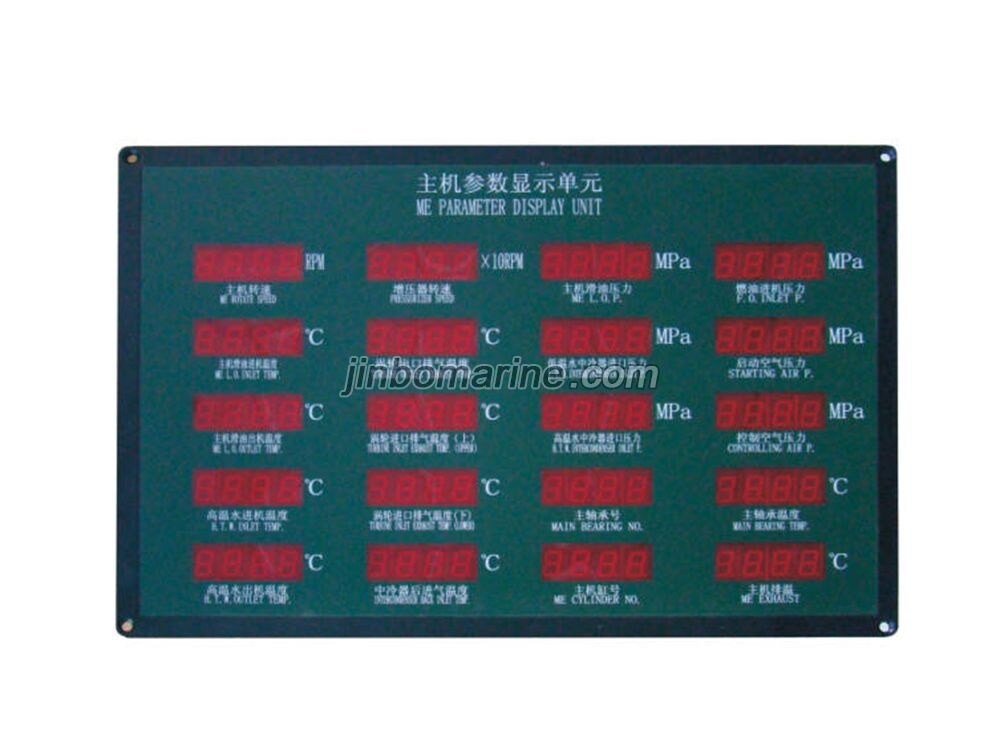

GCJB-1 Main Engine Parameter Detection Board

GCJB-1 host parameter display box adopts microprocessor design, mainly used for the display of analog parameters of the host or auxiliary engine, working voltage DC24V input port RS485.

Function:
Display the content in the form ofLED:
a.Engine speed
b.Turbo-charger speed
c. Main engine lub oil pressured.Fuel inlet pressure
e.Main engine lub oil inlettemperature
f.Turbine outlet exhaust temperatureg.Low temperature water cooler inletpressure
h.Start air pressure
i.Engine lub oil out temperaturej.Turbine inlet exhaust temperature(on)
k.High temperature water cooler inletpressure
i.Control air pressure
m. High temperature water inlettemperature
Turbine inlet exhaust temperature(below)
o.Main bearing temperaturep.High temperature water outlettemperature
q.Inlet air temperature afterintercooler
r. Engine exhaust temperature
