GCWD-2 Fog Horn Control System

Request a Quote Not what you need, please send your RFQs via Email.

Details

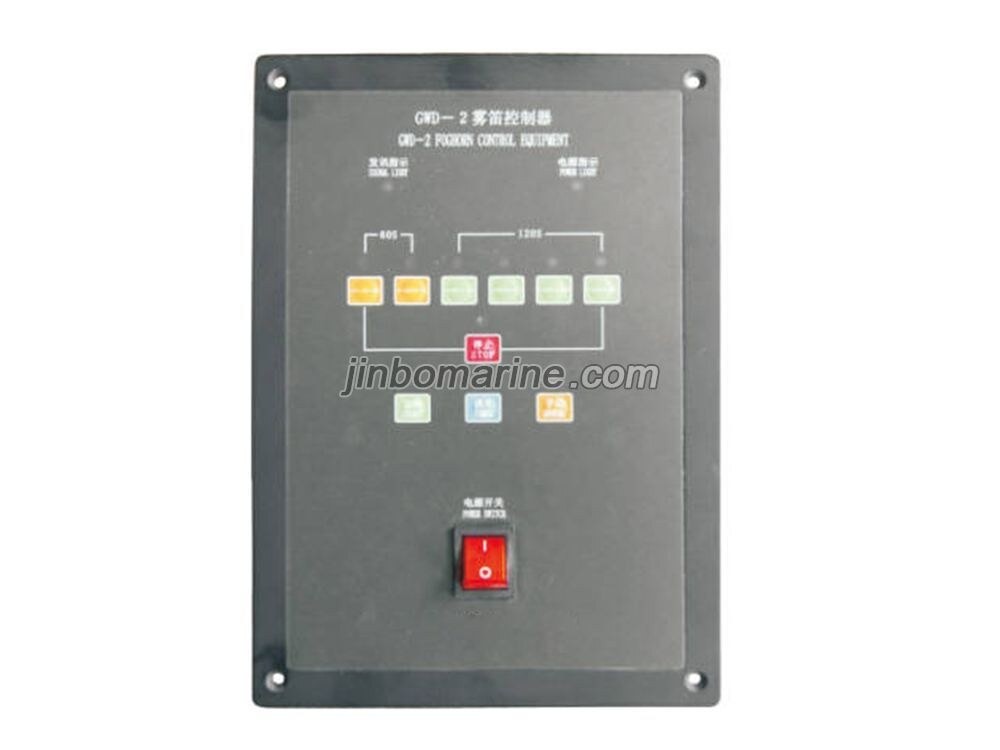

GCWD-2 Fog Horn Control System

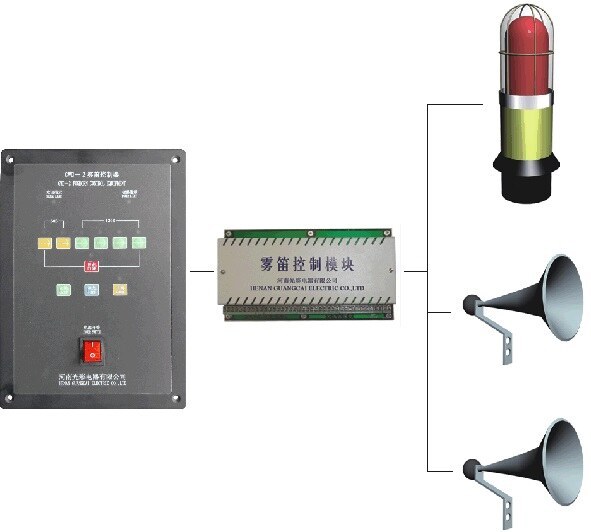

The fog whistle controller consists of an operation display panel (dual whistle, single whistle) and an input/output module.

Features:

1, automatic fog whistle timing

One long and three short every 2 minutes;One long and two short every 2 minutes;One long and one short every 2 minutesEvery 2 minutes;

Three shorts per minute;

One short, one long and one short every 1 minute;2, manually whistle

Press the "Manual" button at the touch of a button,thetoghorn controller automatically switches to "Manual" andsends the signal at the "manual”rhythm.Press the“Stop”or“Manual" touch button, then press the left and right sidecontrol buttons (external) to control manually.

3,external control input

External manual button or universal alarm contact can beused.

4,control output

Passing fog light passive contact;

Passing the passive contact of the flute solenoid valve;Electrically heating the passive contact;

5, you can press the "dirnming" touch button to adjust thebrightness of the indicator light, with automatic power-offfunction.

Technical Parameters:

1,Power supply:AC220V主20%;2,Solenoid valve≤10OW;

3,The fog lamp power is≤10OW;

4, electric heating control terminal power≤200W;5, the ambient temperature:-10~ C~+50°cG,relativc humidity:≤RH95%6(+40“C,

7, It has good electromagnetic compatibility , and there arestrict anti-interference measures in the microcomputertechnology;

8,Ingress protection: IP22
