GFM16-1 Fire Extinguisher Dry Powder Filling Machine

GFM16-1 fire extinguisher dry powder filling machine is a new product developed by our factory after absorbing the advantages of powder fillers at home and abroad. It can quickly suck dry powder into the cylinder and be directly filled in the container by vacuum fluidics, and it can also conduct sucking and filling simultaneously.

It features small volume, easy movement,simple operation and lack of environmental pollution. Thus labor intensity is
decreased and work environment is improved. It is especially suitable for the filling, production and maintenance of dry powder extinguisher and also suitable for filling various powder products. So it is an ideal equipment in the powder filling industry.

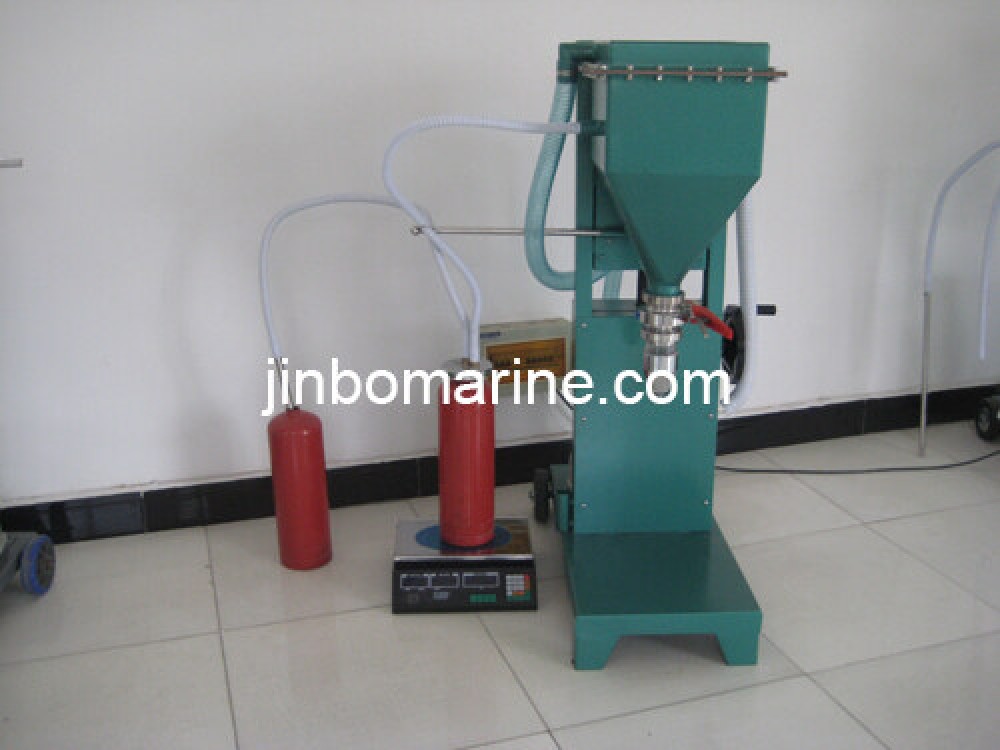

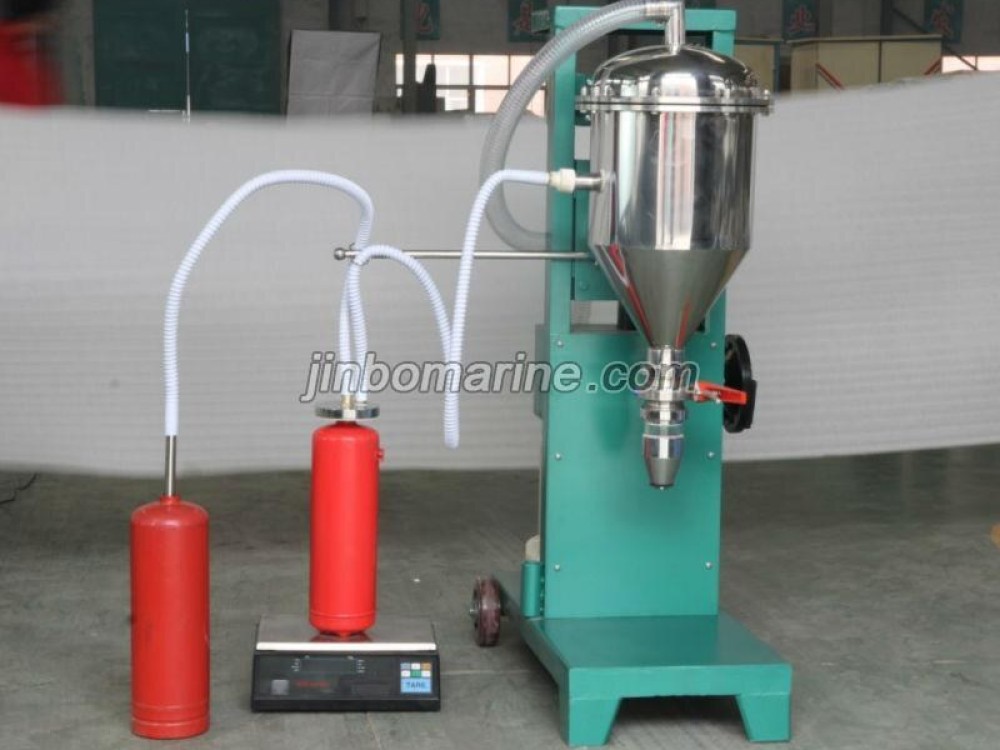

GFM16-1 fire extinguisher dry powder filling machine have two types,one type adopt normal steel powder cylinder,the other one adopt stainless steel powder cylinder.

Volume:870×590×1320mm

Weight:110kg

Voltage:AC 380V

Power:1.1KW

Filling rate:5kg/min

Filling residue:1kg≤0.04

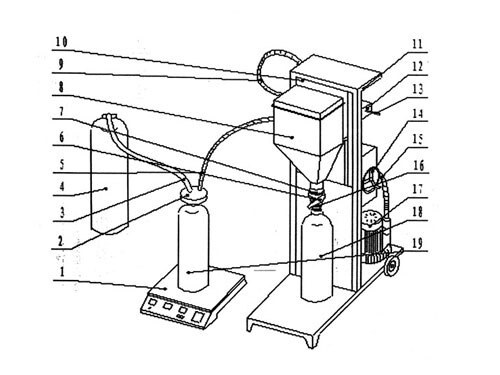

1.Electronic scale 2.Filling and cover 3.Powder suction pipe

4.Powder source 5.Air suction pipe 6.Switch of powder cylinder

7.Valve 8.Powder cylinder 9.Main air pipe

10.Electric box 11.Frame 12.Direction valve

13.Push rod 14.Elevating wheel 15.Pump-line

16.Observation window 17.Air pump 18.Fire extinguisher

19.Fire extinguisher
