GPL24 Model Blade Filter
- Category:Filter
- Delivery Time:15 days
- Packing Details:Wooden box
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

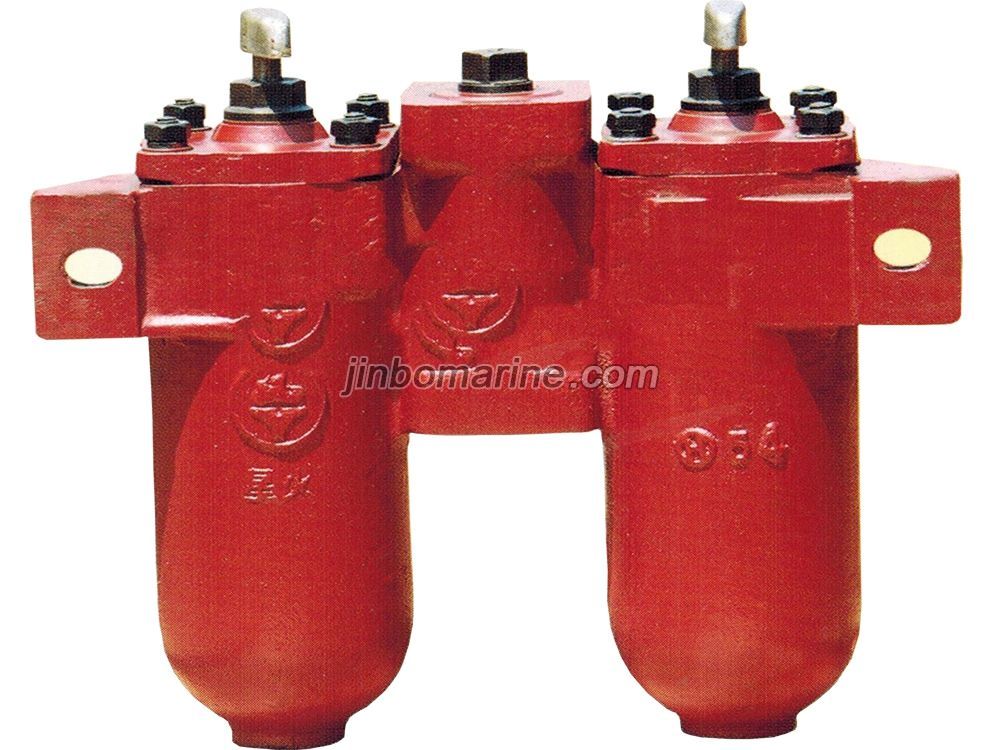

GPL24 Model Blade Filter
The fuel enters the inlet of the filter,through the transfer value into the oil chamber of the filter,and into the cleaning oil chamber through the metal filter core from the outside to the inside,then into the fuel system of diesel engine,the pressure difference of the inlet and the outlet of the filter is 0.05-0.10MPa.the handle must be turned a round anticlockwise,the dirt on the surface of the metal core is bladed,the pressure difference falls,if the result is not good,the metal core can be disaeesmbled and washed.
Path | Filter precision | Work pressure | work temperature | Suitable medium | |||||
1/2"-50mm | 15um-50umm | ≤1.6MPa | ≤150℃ | fuel or heavy oil |

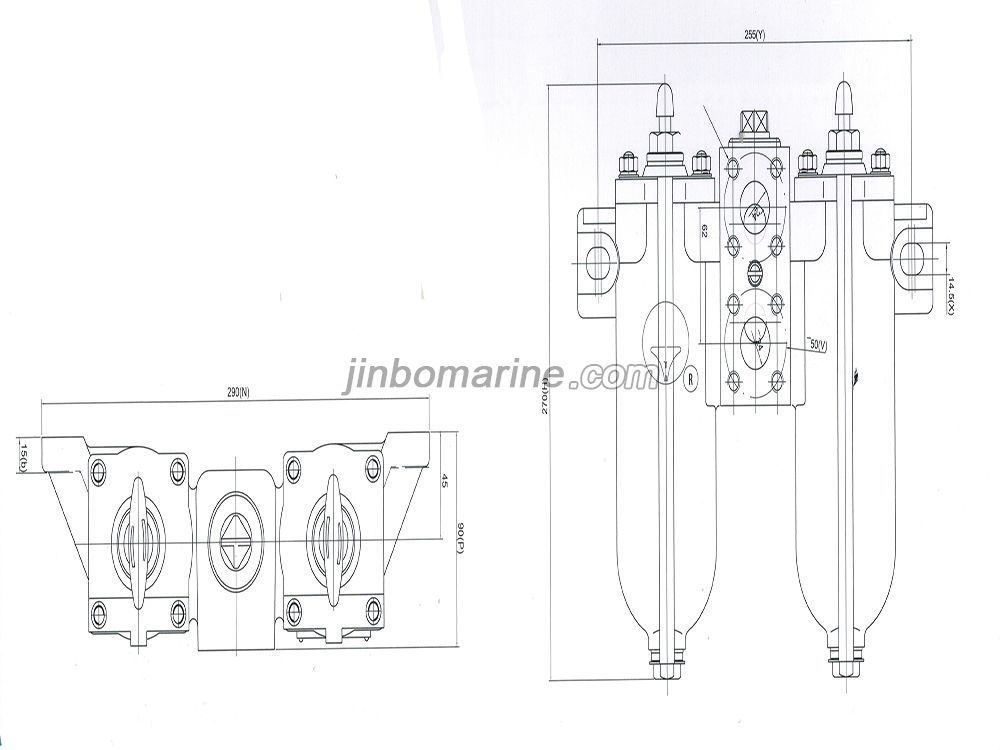

GPL24 Model Blade Filter Structure Diagram
GPL24 Model Blade Filter Technical Parameters
Model | Caliber and jointing size(mm) | Overall size(mm) | Installing size(mm) | ||||||||||||||
DN | E | K | N-K1 | H | H1 | L | W | Y | b | b1 | X | Z | V | r | R | ||
GPL24 | 24 | 70 | 75 | 8-M10 | 275 | / | 290 | 90 | 255 | 15 | 5 | 14.5 | 28 | 50 | 7 | 14 |
