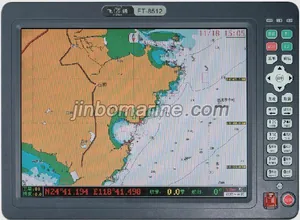

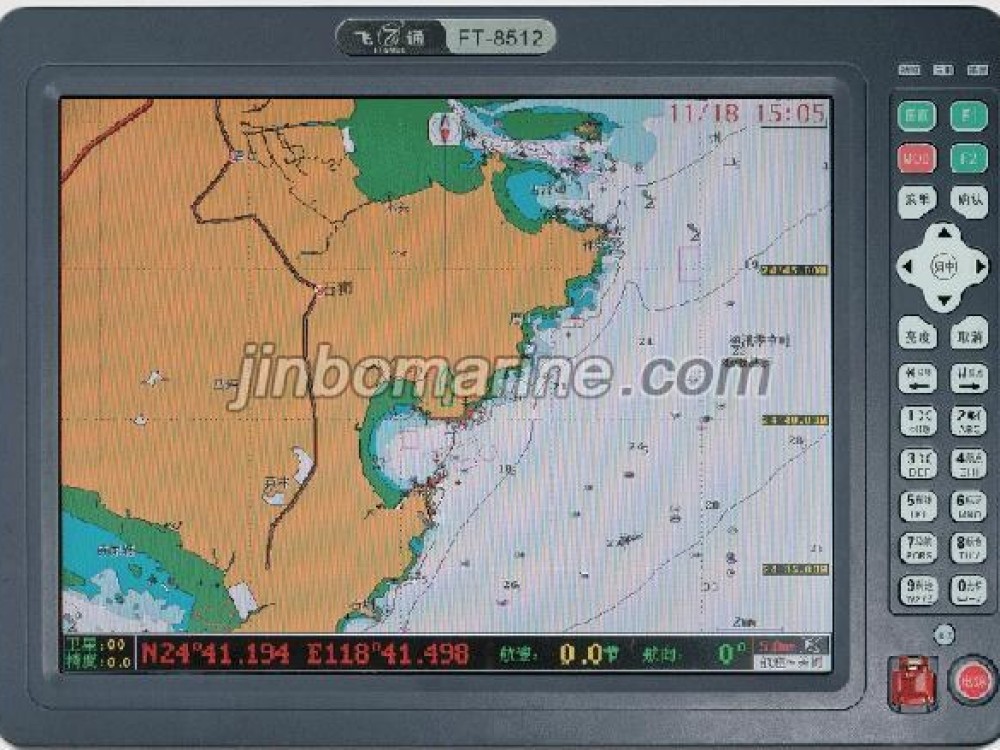

GPS (12.1-inch)
- Category:Marine Communication And Navigation Equipment
- Standards:standard
- Certificate:CCS
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
GPS (12.1-inch)
(1)、Main function
1.12.1-inch color LCD display screen with a resolution
of 800 * 600 display .
2.Provided coastline of country (ECDIS), Geographic Names ,mark, Information display
3.Provided waypoints, routes, track ,navigation plan function
4.Electronic compass, cursor, data navigation features
5.Provided arrival, course deviated , shift, anchor, alarm set function
6.Available to store 10,000 waypoints 10,000 mark, 200,000 track point,200 routes, navigation function
7.Provided color selection of nautical charts
8.Provided AIS data information display interface (Option)
2.Provided coastline of country (ECDIS), Geographic Names ,mark, Information display
3.Provided waypoints, routes, track ,navigation plan function
4.Electronic compass, cursor, data navigation features
5.Provided arrival, course deviated , shift, anchor, alarm set function
6.Available to store 10,000 waypoints 10,000 mark, 200,000 track point,200 routes, navigation function
7.Provided color selection of nautical charts
8.Provided AIS data information display interface (Option)
(2).Technical Specifications
1.Receiver frequency : L1 signal 1575.42MHz
2.Acquisition / capture sensitivity : ≤-136dBm
3.Initial position-fix : ≤ 2min
4.Positioning accuracy : ≤ 15m
5.Positioning angle of elevation : > 5 °
6.Display Screen: 12.1-inch color LCD screen
7.Data interface port : format: NMEA0183 (4800 baud rate)
8.Power supply : DC13.8V ± 15%
9.Operatin temperature : -15 ℃ - +55 ℃
10.Dimensions: 325 (W) * 235 (H) * 135 (D) mm
2.Acquisition / capture sensitivity : ≤-136dBm
3.Initial position-fix : ≤ 2min
4.Positioning accuracy : ≤ 15m
5.Positioning angle of elevation : > 5 °
6.Display Screen: 12.1-inch color LCD screen
7.Data interface port : format: NMEA0183 (4800 baud rate)
8.Power supply : DC13.8V ± 15%
9.Operatin temperature : -15 ℃ - +55 ℃
10.Dimensions: 325 (W) * 235 (H) * 135 (D) mm
Note: Specifications are subject to change without notice.
