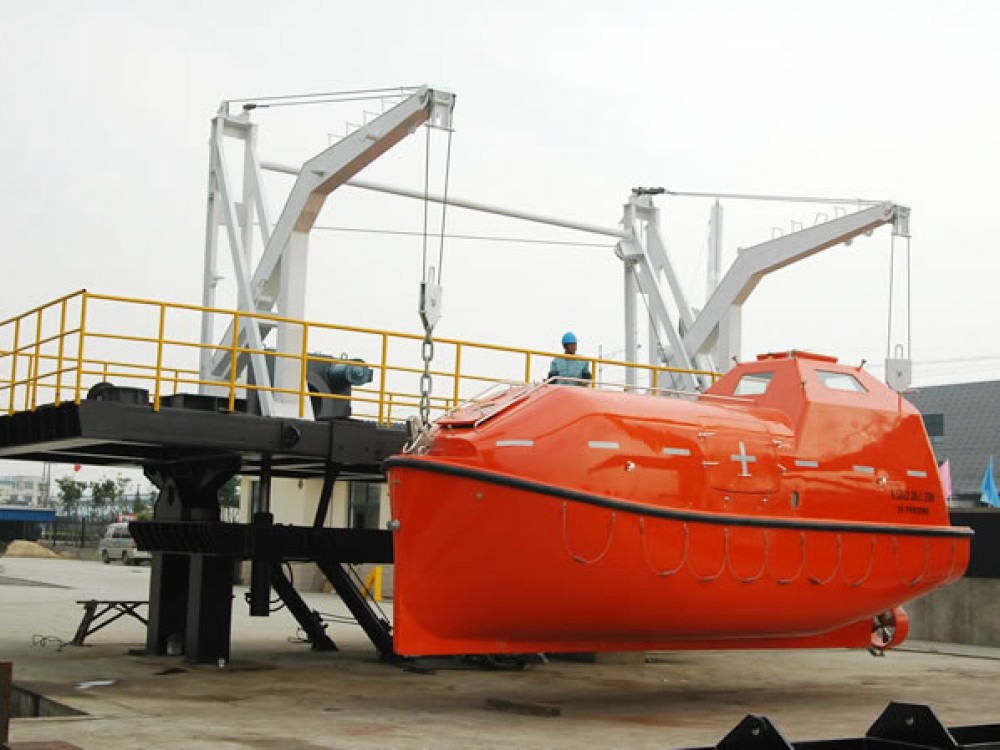

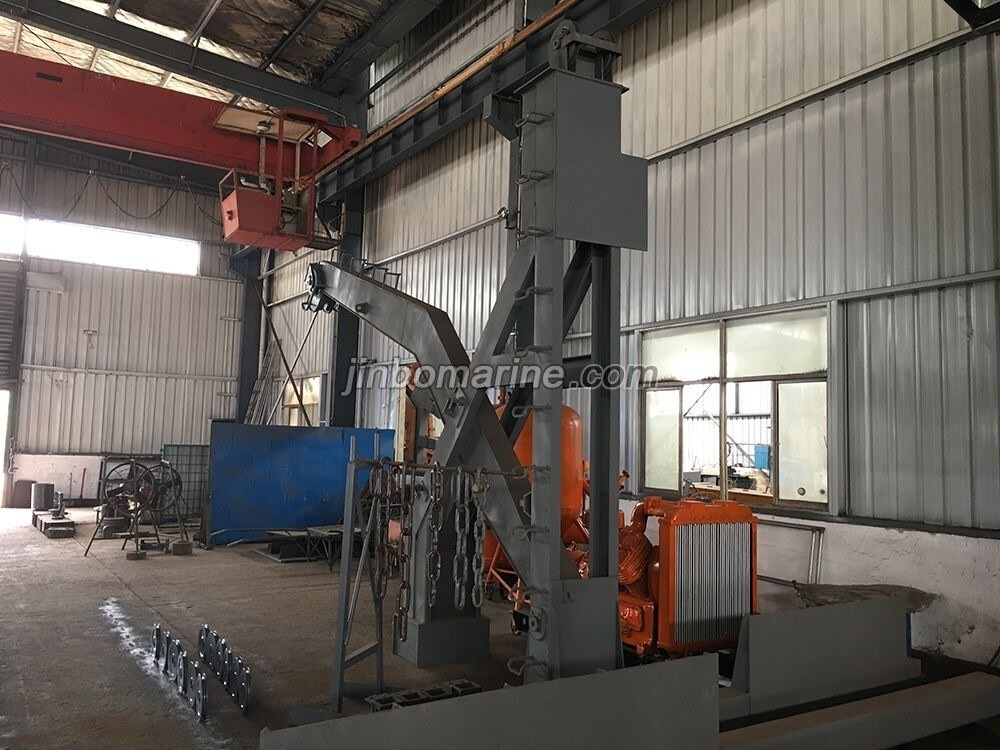

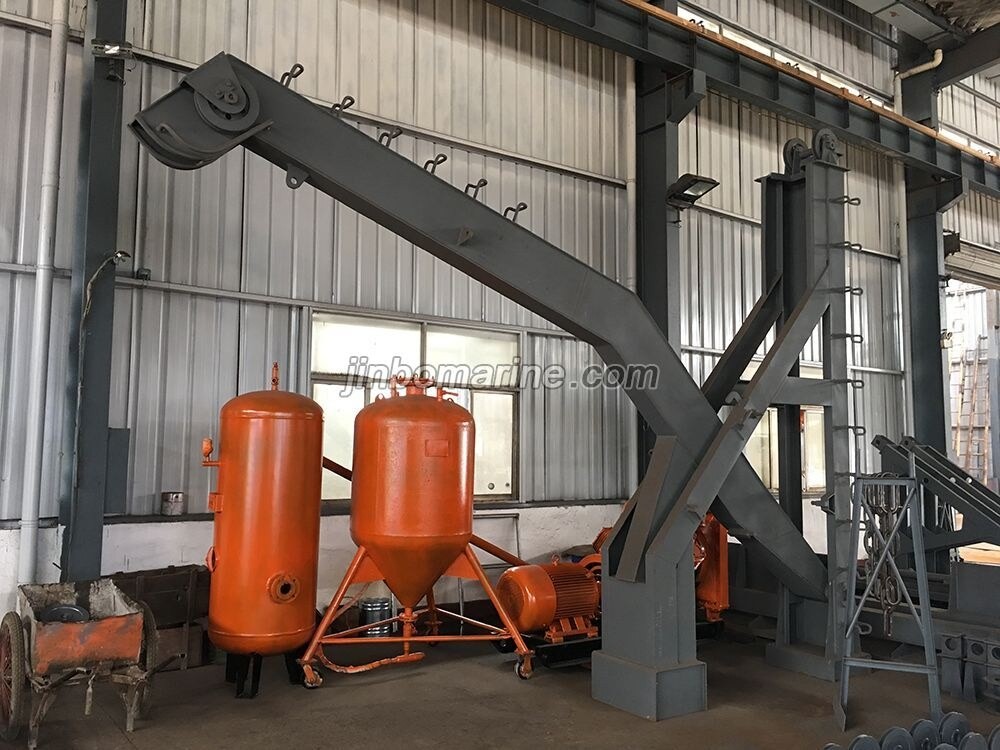

Gravity Luffing Arm Type Davit
- Category:Lifeboat Davit
- Standards:SOLAS
- Certificate:CCS,BV,ABS,DNV,LR,RINA ETC.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
The davit to be designed for embarkation when the boat in stowed position. The boat may be lowered without stopping in a continuous movement at a minimum time.

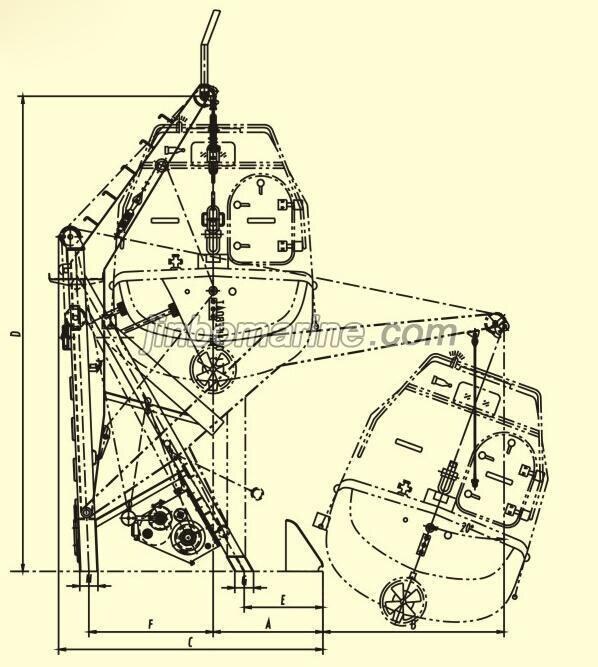

Main Dimensions And Specfications:
| Maximum davit load | Dimensions | Winch load | |||||||
| A | B | C | D | E | F | G | H | ||
| 18KN | 986 | 1245 | 2450 | 4000 | 1000 | 1064 | 400 | 400 | 25KN |
| 25KN | 1068 | 1655 | 2640 | 4750 | 1220 | 1320 | 450 | 450 | 25KN |
| 40KN | 1150 | 1667 | 2790 | 5080 | 1250 | 1370 | 450 | 450 | 25KN/40KN |
| 50KN | 1150 | 2470 | 2760 | 7060 | 850 | 1500 | 480 | 480 | 40KN/48KN/50KN |
| 55KN | 1213 | 2002 | 2921 | 5250 | 870 | 1400 | 500 | 500 | 42KN |
| 68KN | 1300 | 2455 | 3020 | 7060 | 800 | 1500 | 480 | 480 | 50KN/63KN |
| 60KN | 1200 | 2050 | 2900 | 6680 | 1250 | 1450 | 500 | 500 | 50KN/63KN |
| 85KN | 1600 | 2590 | 3510 | 7935 | 950 | 1650 | 520 | 520 | 85KN |
| 100KN | 1650 | 2850 | 3850 | 8495 | 1100 | 1950 | 500 | 500 | 100KN |
| 120KN | 1700 | 2513 | 4120 | 7500 | 1200 | 2600 | 520 | 620 | 120KN |
