Half Twist-action Hand Pump
- Category:Hand Pump
- Material:Iron or Copper Alloy
- Standards:standard
- Packing Details:Standard Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Marine Half Twist Action Hand Pump.pdf
Request a Quote
Not what you need, please send your RFQs via Email.
Details

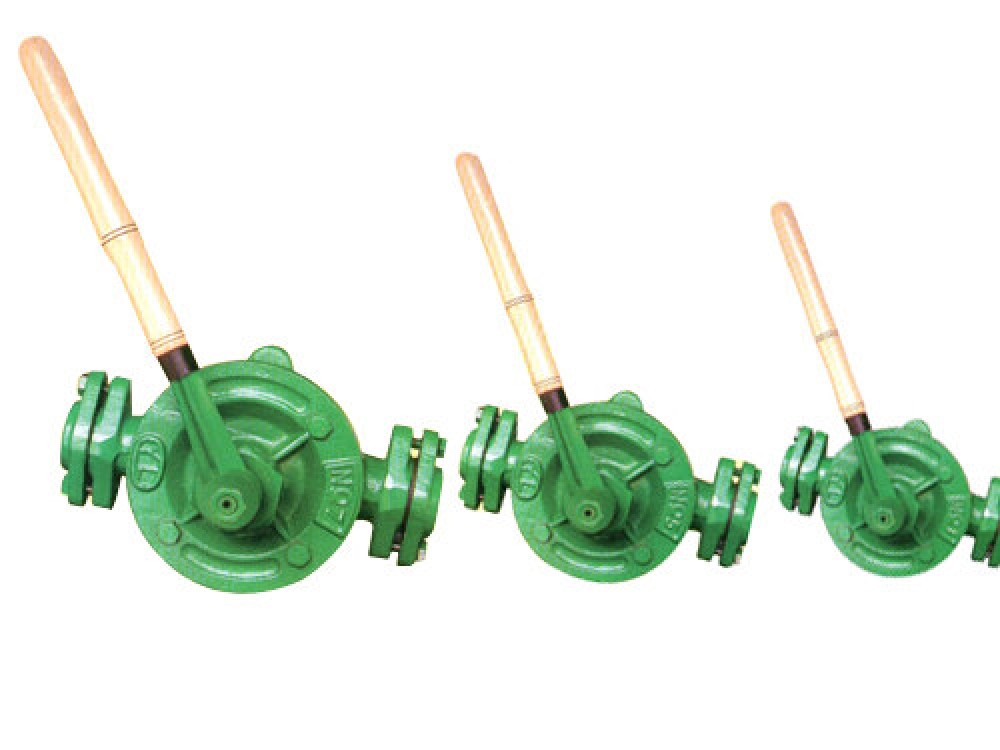

Half Twist-action Hand Pump
Marine half twist-action hand pump clean water, gasoline, kerosene, and iron and copper and other non-corrosive liquids, does not apply to fiber or other solid particles of the liquid, pumping the liquid below the temperature of 60℃.
Its performance range: flow rate 15-105 l/min, maximum lift of 26 meters. CYL hand pump compact structure, beautiful style and generous, easy to use and reliable.

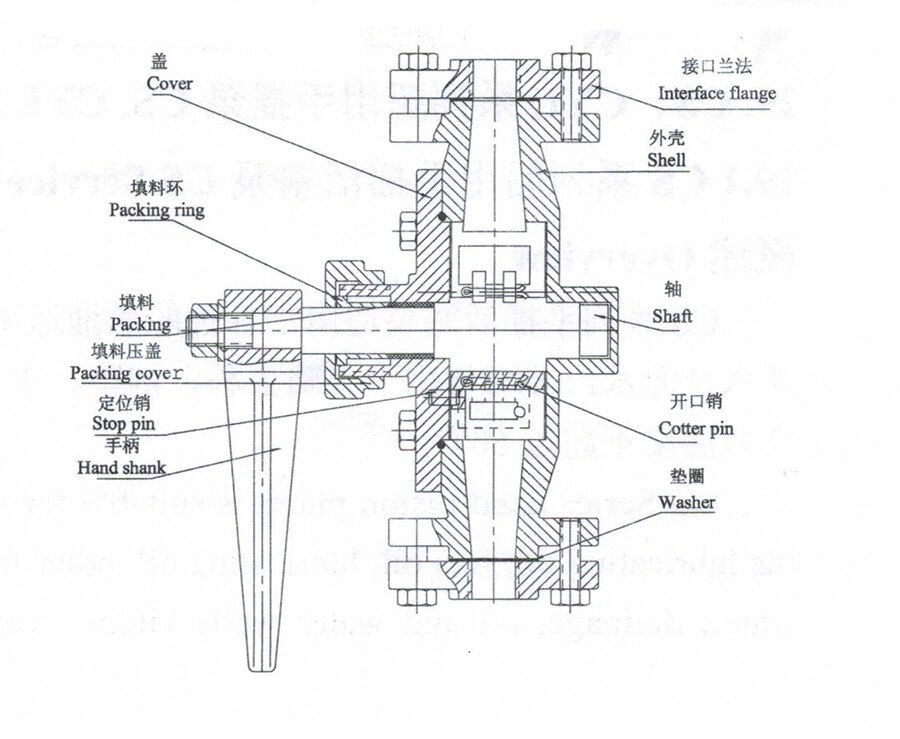

Structural Specifications
Main Specification
| Type | Capacity | Head | Suction vacuum height | Weight |
| (l/min) | (m) | (m) | (kg) | |
| YL-0 | 15 | 14 | 5 | 5 |
| YL-1 | 20 | 14 | 5 | 5.5 |
| YL-2 | 25 | 26 | 6 | 7.5 |
| YL-3 | 28 | 26 | 6 | 9 |
| YL-5 | 65 | 18 | 6.5 | 22.5 |
| YL-7 | 105 | 18 | 6.5 | 34.5 |
Type Code
YL: Half twist-action hand pump
15: Inlet/outlet Diameter
