Hand Operated Monitor PS30-50B
- Category:Manual Operated Fire Monitor
- Supply Ability:10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

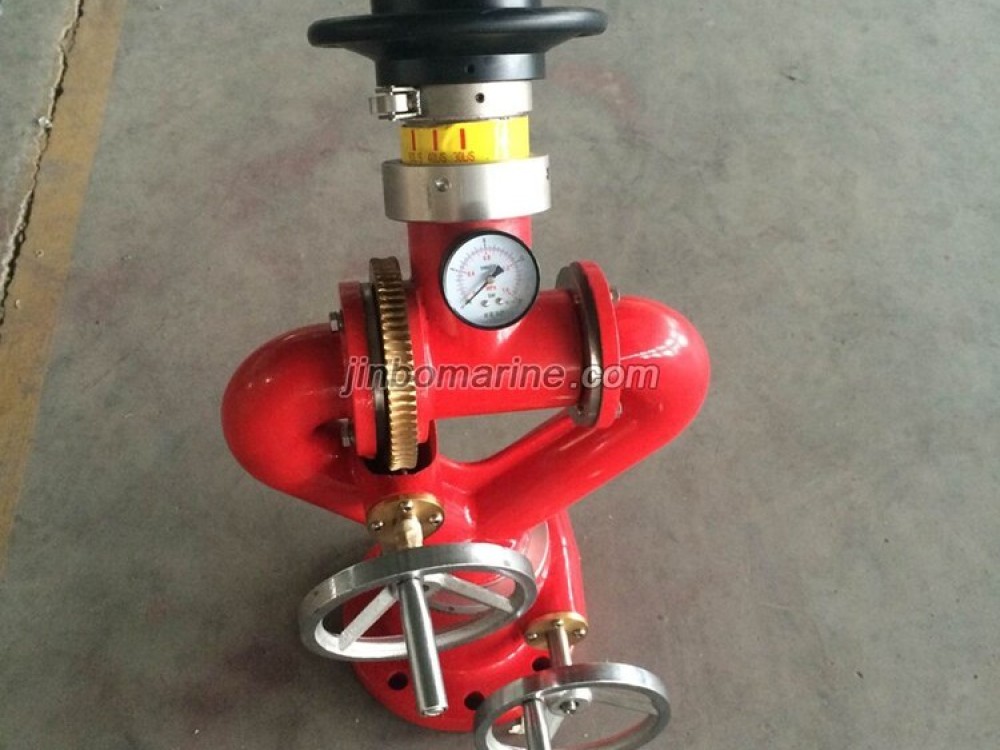

China Hand Operated Monitor PS30-50B:
Type: PS30-50B
Flow Range: 30-40-50 L/S Adjustable
Working Pressure: 10 bar
Max Reach @ Max Flow: 65m
Range of motion: -45°~+90°Vert , 360°Rot
Max fog angle :120°
Material (body):Aluminum
Material (Gear):bronze
Material (nozzle):Aluminum
Material (handwheel) : chromate cast iron
Pump requirement for minimum performance:30L/S@ 8 bar
Pipe dimensions for installation: 4 Inch
Monitor Inlet: DN100 flange
Monitor Outlet:2.5 inch (65mm)
Paint: Fire Red
Weight: 16KG
Flow Range: 30-40-50 L/S Adjustable
Working Pressure: 10 bar
Max Reach @ Max Flow: 65m
Range of motion: -45°~+90°Vert , 360°Rot
Max fog angle :120°
Material (body):Aluminum
Material (Gear):bronze
Material (nozzle):Aluminum
Material (handwheel) : chromate cast iron
Pump requirement for minimum performance:30L/S@ 8 bar
Pipe dimensions for installation: 4 Inch
Monitor Inlet: DN100 flange
Monitor Outlet:2.5 inch (65mm)
Paint: Fire Red
Weight: 16KG
