HB-SPCG Type Self-operated Dial Plate Level Gauge
- Category:Marine Level Gauge
- Certificate:CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
- Packing Details:Carton packaging.
- Delivery Time:about 7 to 10 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
It consists of sensor,capillary tube and displayer etc. widely used for diesel oil,lubricating oil,heavy fuel oil,solvents,gas,oil,water and other non-corrosive liquid.
Main technical specification:
Range:1 to 50 meter
Accuracy:grade 1.6
Overload: 120% of the maximum measure range
Dial diameter:150 mm
Casing material: SUS304 or aluminium alloy

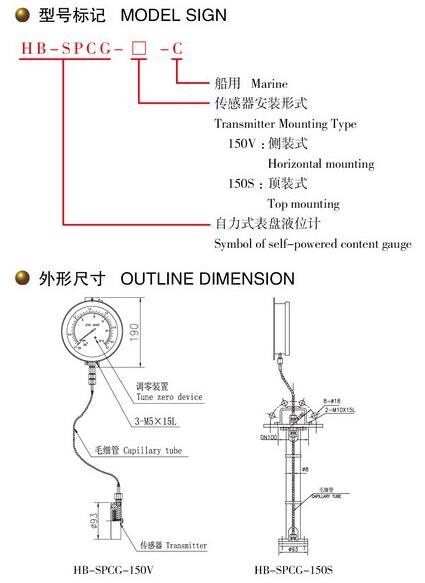

Standard Model And Specification:
| Model | Applicable medium | Connection size | Accuracy | Capillary tube length | Material | |||
| Low viscosity | High viscosity | Displayer | Capillary tube | Diaphragm | ||||
| HB-SPCG-150V | Normal liquid | 5K,10K25A | 5K,10K40A | Grade 6 |
≥1m ≤8m |
AC or SUS304 | SUS304 | QBe2.0 |
| HB-SPCG-150S |
JIS 5K,10K 100A GB2506-2005 DN100 PN6 |
|||||||
