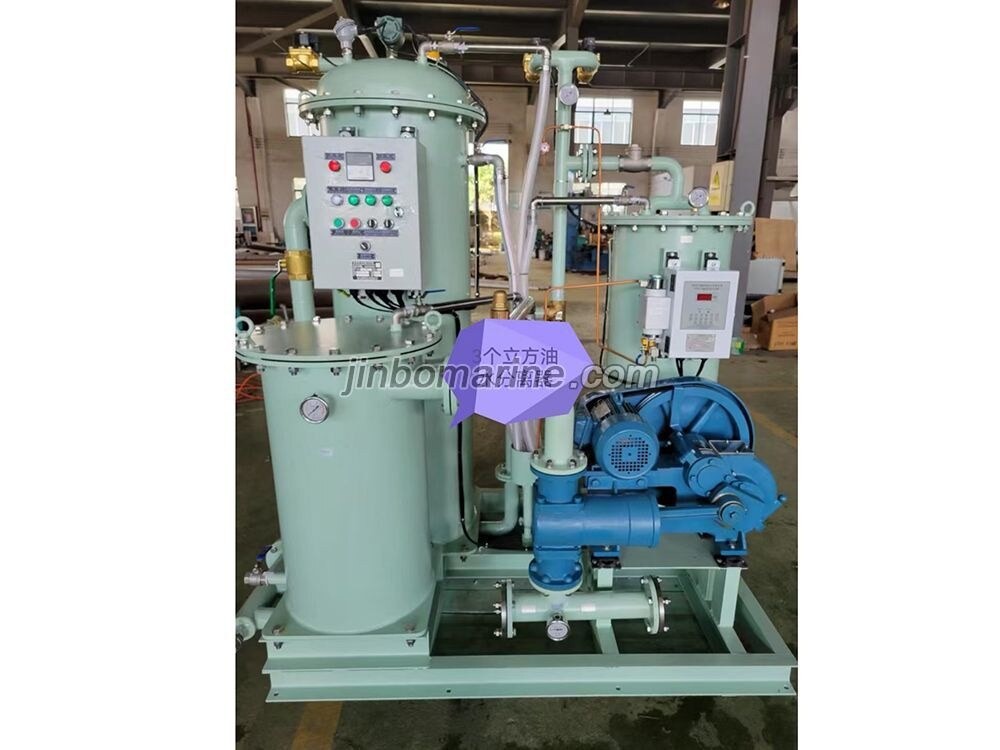

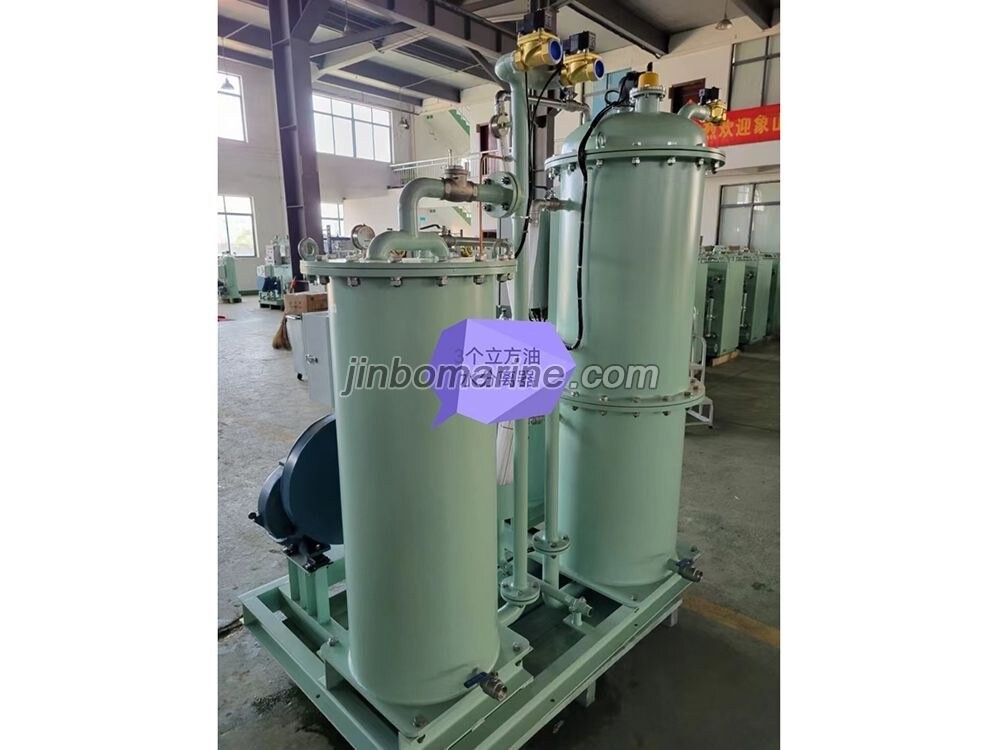

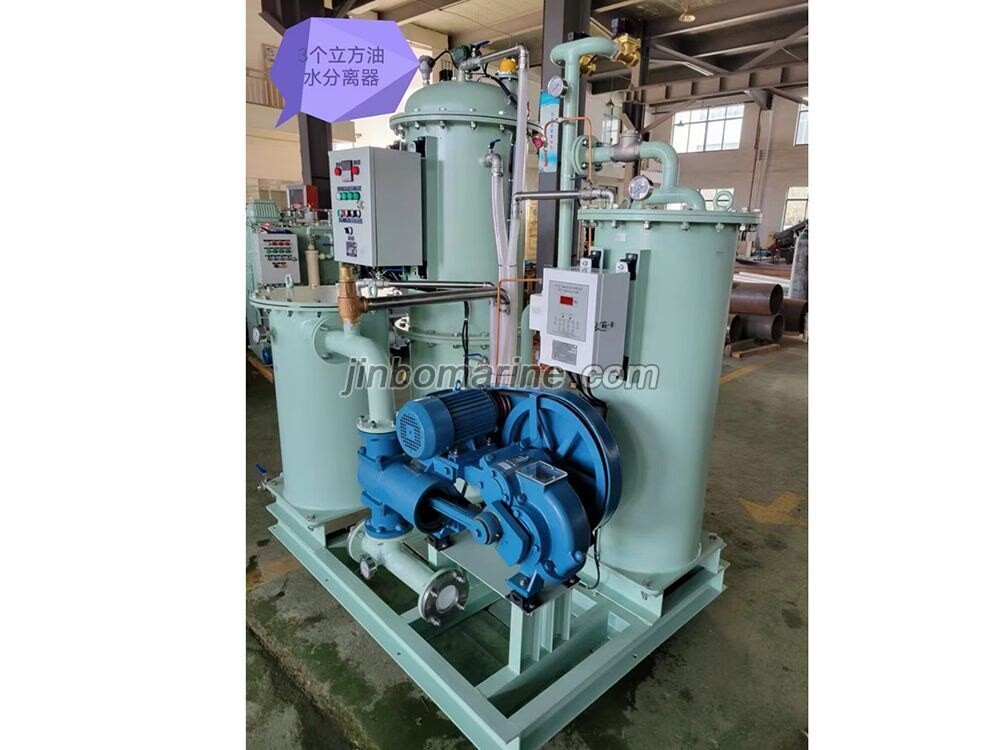

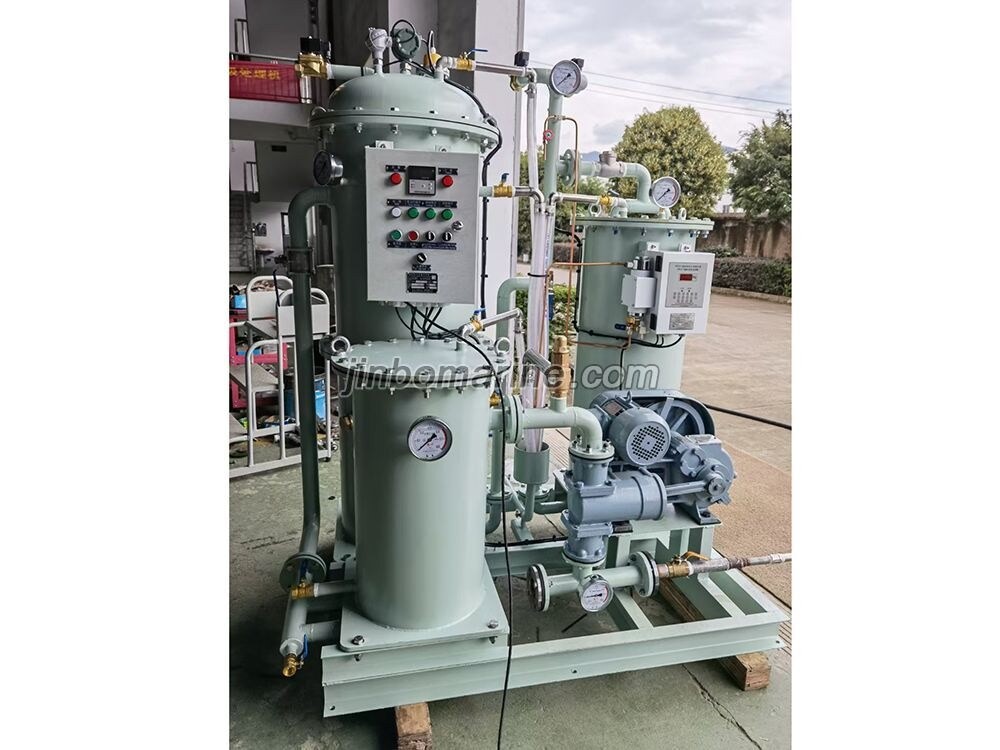

HBN-3.0 15PPM Bilge Separator Oily Water Separator
- Category:Marine Oil Water Seperator
- Certificate:CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
15ppm Bilge Separator HBN-3.0
HBN Series 15ppm bilge separator, a high-tech product of marine environmental protection area, is designed and exploited basing on the IMO.MEPC 107 (49) resolution "Revised guidelines and specifications for pollution prevention equipment for machinery space bilge of ships." All kinds of fuels used by ships, including the residual oil with extremely high density and emulsified oil mixture, can be separated effectively, and the effluent oil content is no more than 15ppm.
HBN Series 15ppm bilge separator, a high-tech product of marine environmental protection area, is designed and exploited basing on the IMO.MEPC 107 (49) resolution "Revised guidelines and specifications for pollution prevention equipment for machinery space bilge of ships." All kinds of fuels used by ships, including the residual oil with extremely high density and emulsified oil mixture, can be separated effectively, and the effluent oil content is no more than 15ppm.
HBN Series 15ppm Bilge Separator fully compliant with：
◎"Domestic voyage ship rules of statutory inspection techniques"，MSA, The People's Republic of China (2008)
◎The amended Article 14 in by-law I of "Convention on Prevention of Pollution from Ships''，IMO MARPOL.73/78
Recommended Capacity
| Model | Capacity m3/h | Applicable Gross Tonnage of Ships(GT) | Remark |
| HBN-0.1 | 0.1 | 400 | When selecting the oily water separator for the ship. |
| it is preferable to choose bigger size than law-fixed eapacity. | |||
| 1. 0.00044Gm3/h.(G:a gross tonnage of ship) | |||
| HBN-0.25 | 0.25 | 550 | for Ship under 1000 tons. |
| HBN-0.5 | 0.5 | 2500 | 2. 0.4+0.00004Gm3/h for ships whose gross |
| HBN-1.0 | 1 | 15000 | tonnage is between 1000 and 40000 tons. |
| HBN-2.0 | 2 | 40000 | 3. 3m3/h for ships over between 40000 |
| HBN-3.0 | 3 | 50000 | and 50000 tons. |
| HBN-5.0 | 5 | Unlimited gross tonnage | 4.5.0m3/h for ships over 50000tons. |
Specification
| Model | Capacity m³/h | Pressure | Matching pump | Electric | Bilge water | Stability | Way of | ||
| heaters | alarm device | control | draining oil | ||||||
| method | |||||||||
| Normal MPa | Design MPa | Mobel | Power kW | Power kW | Configuration | Configuration | Configuration | ||
| HBN-0. 1 | 0. 1 | 0. 03 | 0.3 | DZ-100 | 0. 12 | Optional | X0C-01 | Auto/Manual | Auto/Manual |
| HBN-0. 25 | 0. 25 | 0. 03 | 0.3 | DZ-250 | 0. 18 | Optional | X0C-01 | Auto/Manual | Auto/Manual |
| HBN-0. 5 | 0.5 | 0.03 | 0.3 | DZ-500 | 0. 25 | Optional | X0C-01 | Auto/Manual | Auto/Manual |
| HBN-1.0 | 1 | 0. 07 | 0.3 | DZ-1000 | 0. 37 | 1 | X0C-01 | Auto/Manual | Auto/Manual |
| HBN-2. 0 | 2 | 0. 07 | 0.3 | DZ-2000 | 0. 75 | 2 | X0C-01 | Auto/Manual | Auto/Manual |
| HBN-3.0 | 3 | 0.07 | 0.3 | DZ-3000 | 1.1KW | 2 | XOC-01 | Auto/Manual | Auto/Manual |
| HBN-5.0 | 5 | 0.07 | 0.3 | DZ-5000 | 1.5KW | 3 | XOC-01 | Auto/Manual | Auto/Manual |
| Model | External dimensions and mounting dimensions | Weight | ||||
| H | A | B | C | D | Kg | |
| HBN-0.1 | 1100 | 570 | 610 | 480 | 470 | 120 |
| HBN-0.25 | 1170 | 760 | 740 | 450 | 660 | 160 |
| HBN-0.5 | 1370 | 760 | 720 | 450 | 660 | 185 |
| HBN-1.0 | 1480 | 1080 | 850 | 1000 | 450 | 380 |
| HBN-2.0 | 1530 | 1180 | 880 | 1000 | 450 | 450 |
| HBN-3.0 | 3 | 1700 | 1100 | 1400 | 1100 | 820 |
| HBN-5.0 | 5 | 1900 | 1130 | 1500 | 1100 | 950 |
