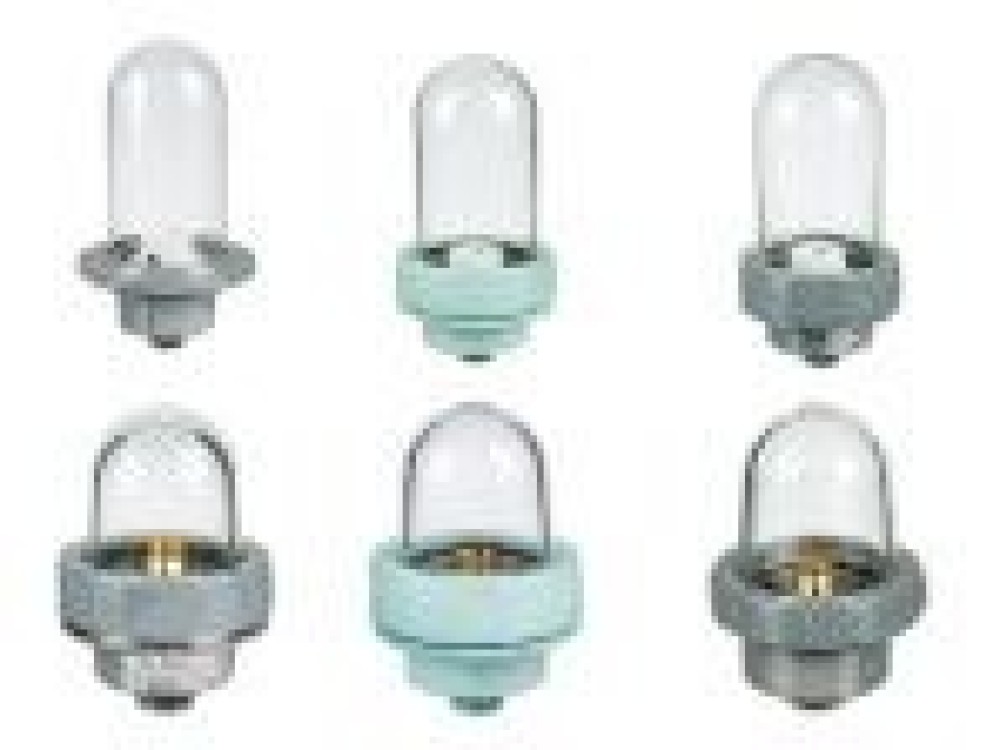

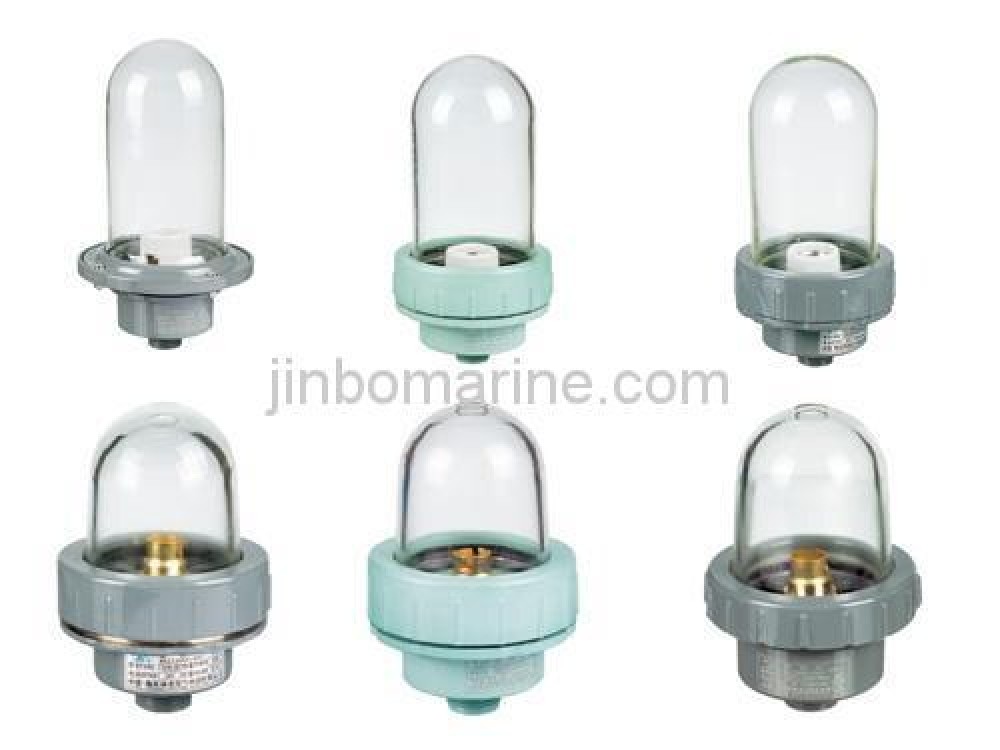

Head Light Picture

Head Light

Request a Quote Not what you need, please send your RFQs via Email.

Download this page

Details

Used as lamp signal for navigation.

Screw-type connecting flange, convenient to install and replace the bulb, High quality pyres glass for lampshade.

1. Confirm to the international regulation for preventing collision at sea, 1972 and grade entry norms for steel ships.

2. Confirm to the International Standard IEC60598-1-2008.

3. Confirm to the standard of marine electric signal light’s technical condition GB/T 3028-2012.

Type	CXH5-1	CXH5-1A	CXH5-1B	CXH5-2	CXH-2A	CXH-2B	CXH5-3
Visibility	3n.m	3n.m	3n.m	2n.m	2n.m	2n.m	2n.m
Level arc	360^o	360^o	360^o	360^o	360^o	360^o	360^o
Material	Aluminum	Plastic	Stainless Steel	Aluminum	Plastic	Stainless Steel	Plastic
Weight	0.9kgs	0.73kgs	1.73kgs	0.4kgs	0.5kgs	1.25kgs	0.3kgs
Voltage	24V,110V,220V			24V			24V,12V
Power	60W			30W			15W
Color	White, Red, Green, Yellow,Blue, Purple			Whire, Red, Green,Blue			White, Red, Green
Cable Diamter	Dia:12			Dia:12			Dia:12
Lamp Holder	E27			B15d			B15d
Protection Class	IP56
