Heavy Duty Hand Winch
- Category:Marine Winch
- Material:Cast steel
- Standards:standard
- Certificate:CCS
- Packing Details:Nude Packing
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details

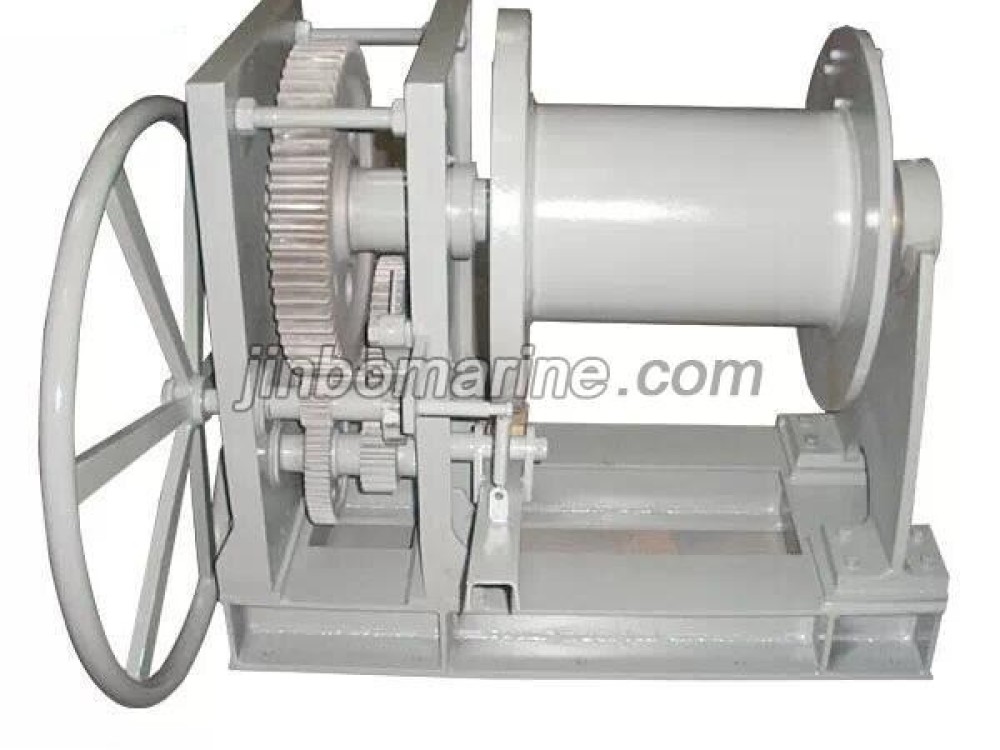

Marine Heavy Duty Hand Winch
General description
Marine hand winch is designed simple and functional. Pull capacity from 1-160kn.Mounted on the manual winch handle of rotary actuator stop (ratchet wheel and pawl), can keep the weight in the location of the need. Assembly or ascension weight with manual winch should also set up the handle and brake. Manual winch generally used in the small weight, establishment conditions with poor or no power.
Technical parameter
|
Type |
Pull |
Ratio |
Hand length(MM) |
Drum diam(MM) |
Wire diam(MM) |
|
5T |
50KN |
4.84 |
320 |
180 |
10 |
|
8T |
80KN |
4.83 |
350 |
250 |
14 |
|
10T |
100KN |
4.83 |
360 |
280 |
14 |
|
12T |
120KN |
4.86 |
360 |
300 |
15 |
|
16T |
160KN |
5.11 |
380 |
350 |
16 |
