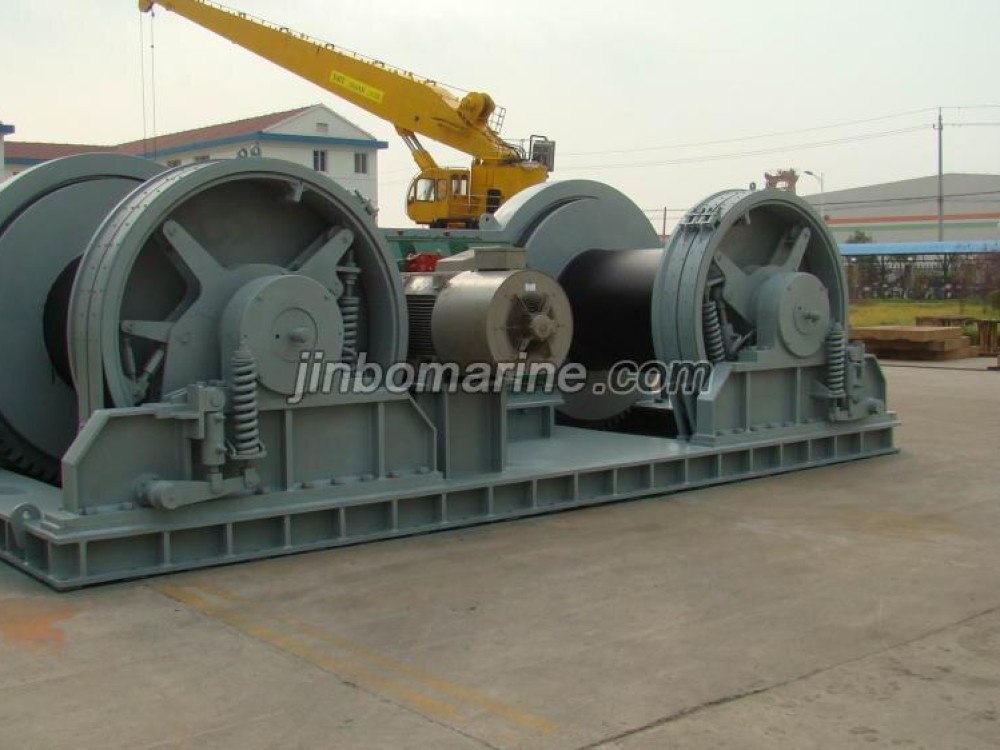

Heavy Duty Mooring Winch

  • Category:Marine Winch
  • Material:Cast steel
  • Standards:standard
  • Certificate:ABS,LR, BV, GL, CCS, RINA, IRS
  • Packing Details:Nude Packing
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

Heavy Duty Mooring Winch

General description

Wild range towing capacity can fit different vessel for towing operation with electric or hydraulic power driven by electric or diesel engine. High quality, easy operation, compact design, smooth operation for the lines without twisting.

Main parameter

For the 400Kn ship-shifting winch

Rated pull: 400kn

Nominal speed: 0-20m/min

Cable Diameter: 60mm

Capacity cable:300m

Holding load:1200 kn

Warping end load: 100kn

Working pressure: 16Mpa

Flow rate: 960L/min

We can adjust the working load and drum capacity according to customers requirements.
