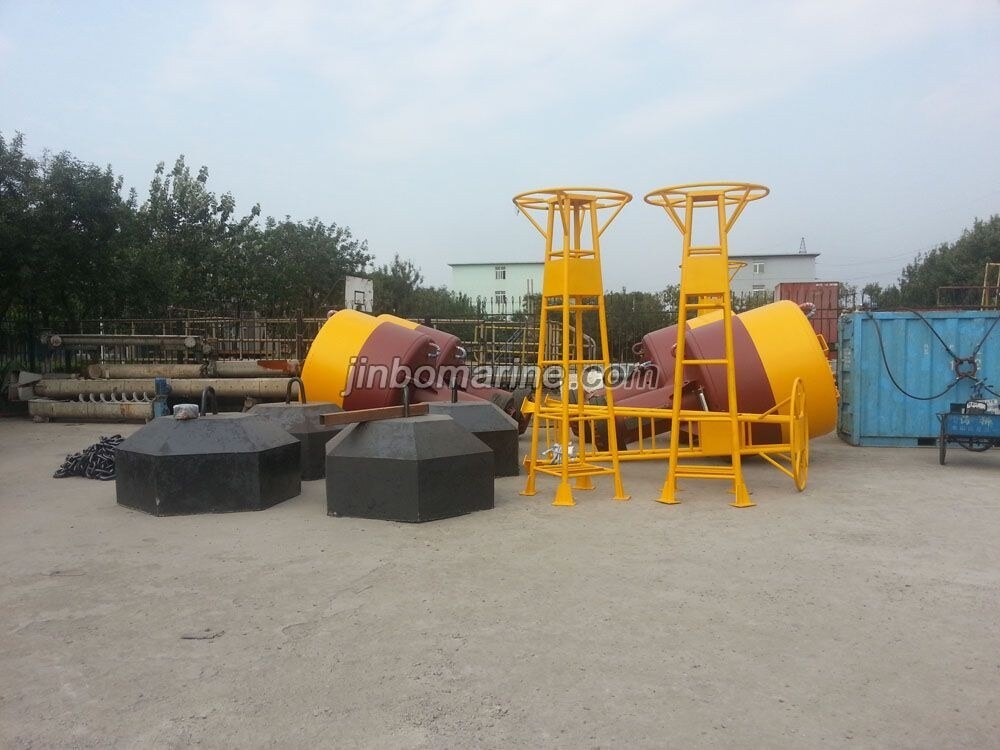

HF Inland Waterway Buoy
- Category:Navigation Buoy
- Delivery Time:35 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
HF Inland Waterway Buoy(in mm)
| Type | Diameter(mm) | Height | Height of Superstructure | Focal Height | Lantern | Power Source | Draft | Water Depth(m) | Weight |
| HF0.6-D1 | 660 | 2139 | 794 | 794 | 90mm | Optional | 1012 | 3.5-10 | 90kgs |
| HF1.0-D1 | 1080 | 2070 | 914 | 914 | 90mm | Optional | 721 | 2.5-15 | 280kg |
| HF1.2-D1 | 1220 | 2682 | 1220 | 1220 | 90mm | Optional | 1010 | 2.5-15 | 330kg |
Table of chains for Tube Lightbuoy
| Type | Bridle Chain | Main Chain | End Shackle | Short Chain | Joining Shackle | Sinker Weight(T) |
| HF0.6-D1 |
Φ8mmx2.75m 1Length |
Φ8mmx27.5m 1Length |
Φ12 4pcs |
Φ8mmx4.5m 1Length |
Φ12 1pcs | 0.5 |
| HF1.0-D1 |
Φ12mmx2.72m 1Length |
Φ13mmx27.5m 1Length |
Φ19 4pcs |
Φ13mmx4.5m 1Length |
Φ17 1pcs | 1 |
| HF1.2-D1 |
Φ13mmx2.77m 1Length |
Φ17mmx27.5m 1Length |
Φ25 4pcs |
Φ13mmx4.5m 1Length |
Φ17 1pcs | 1 |
