High Strength Polypropylene And Polyester Mixed Rope

Request a Quote Not what you need, please send your RFQs via Email.

Details

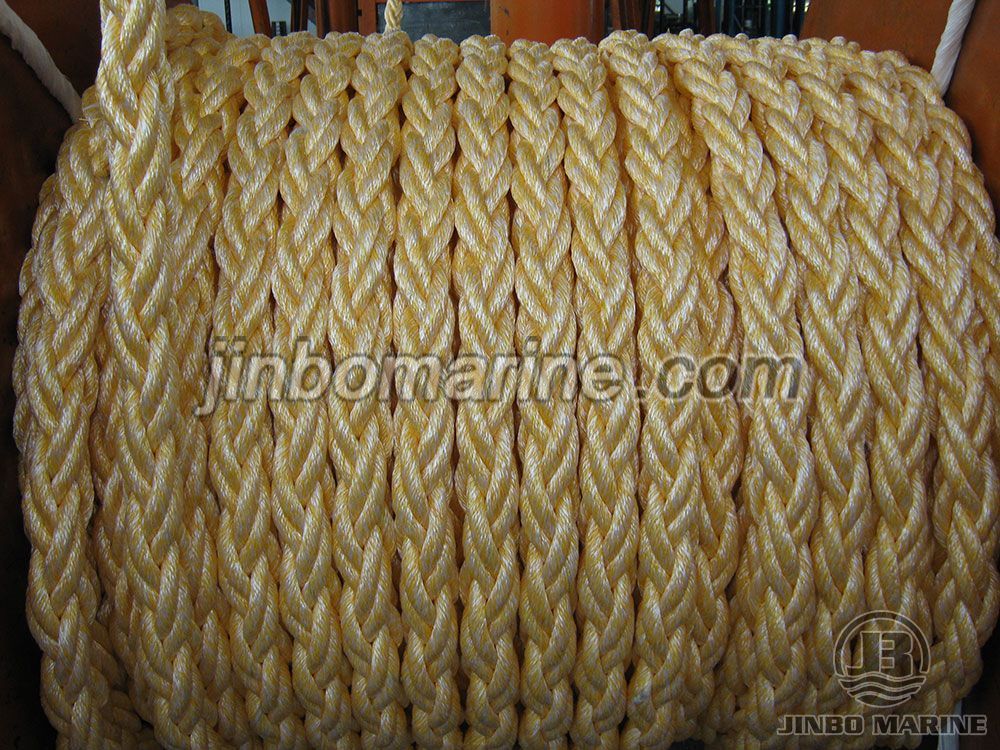

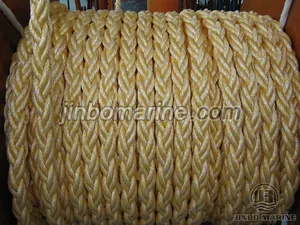

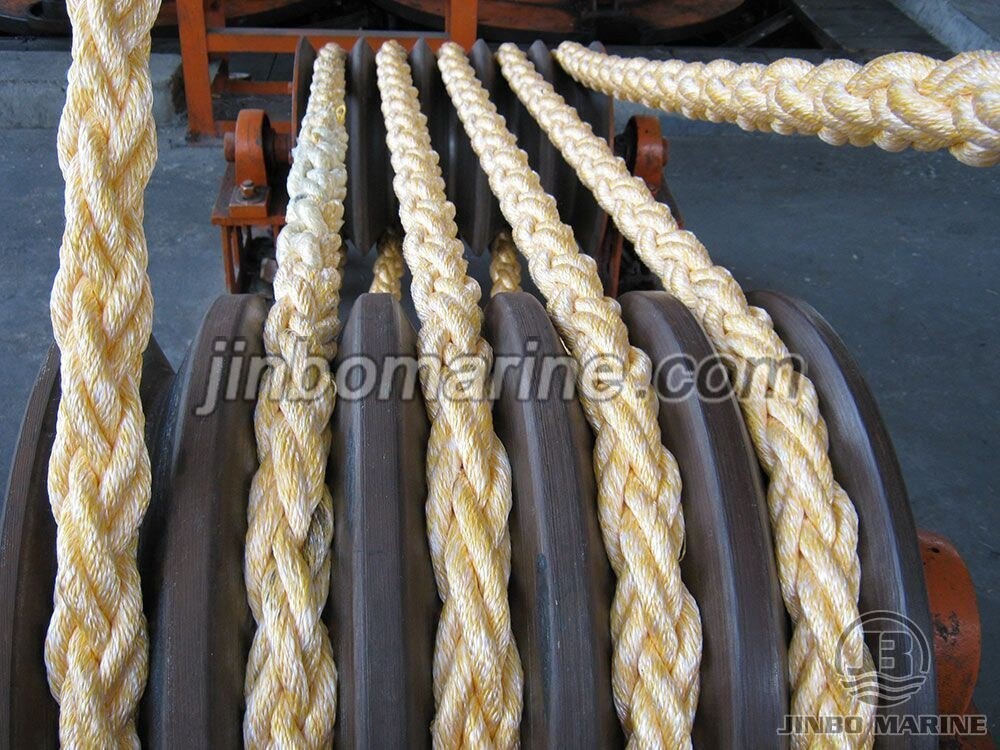

China High Strength Polypropylene And Polyester Mixed Rope:

It is a high tenacity rope, mixed by polypropylene and polyester rope, its perfect comninmation and construction creats the rope with much lower elongation, when we use it,it make sure the rope have better stability and safety.

Main Performance:

Conform to OCIMF guidelines.

Construction:24 strand plaited.

Spec density: 0.98 floating.

Melting point: 165 ℃/ 260℃

Abrasion resistance: very good.

UV resistance: good.

Working Temperature: 70℃ maximum

Chemical resistance: Good. Slight reaction to solvents and strong oxidant

Parameter Table:

Diameter Circumference Weight Breaking Strength
mm Inch Inch KGS/100 meter LBS/100 feet kg KN
24 15/16“ 3“ 33 22 13475 132
28 1 1/8“ 3 1/2“ 45 30 17895 176
32 1 1/4“ 4“ 58 39 22961 226
36 1 7/16“ 4 1/2“ 73 49 28567 281
40 1 9/16“ 5“ 90 60 34496 339
44 1 3/4“ 5 1/2“ 107 72 10964 402
45 1 25/32“ 5 5/8“ 112 75 43120 424
48 1 7/8“ 6“ 129 87 47432 465
52 2 1/16“ 6 1/2“ 147 99 54978 539
56 2 1/4“ 7“ 175 118 63602 624
60 2 3/8“ 7 1/2“ 196 132 72226 708
64 2 1/2“ 8“ 221 149 80850 793
68 2 11/16“ 8 1/2“ 249 167 90552 889
72 2 7/8“ 9“ 278 187 101332 994
80 3 5/32“ 10“ 342 230 122892 1206
88 3 7/16“ 11“ 412 277 148764 1460
96 3 13/16“ 12“ 490 329 175714 1724
112 4 7/16“ 14“ 661 444 238238 2338
120 4 3/4“ 15“ 759 510 272734 2675
