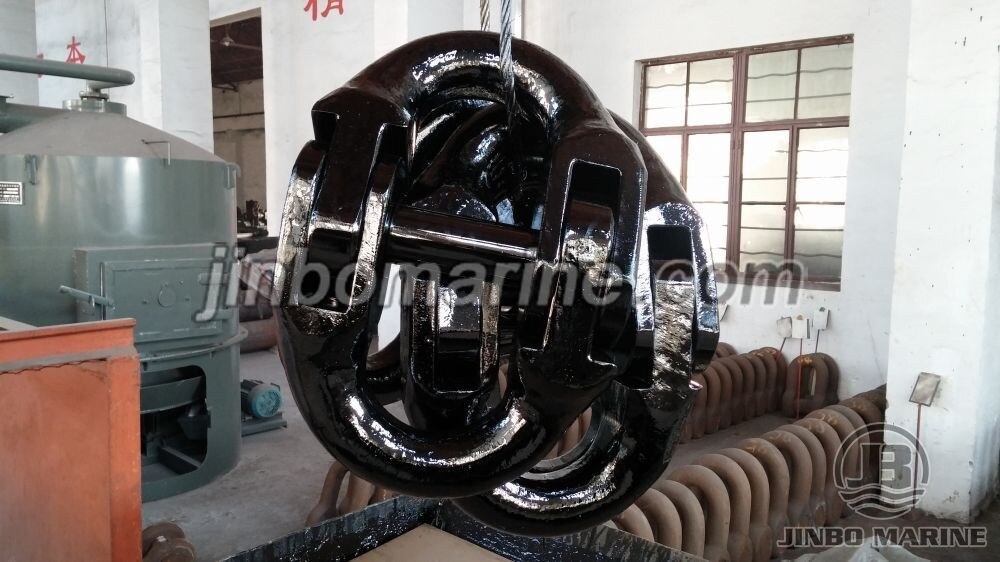

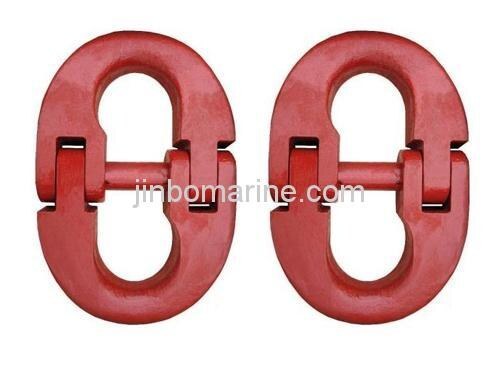

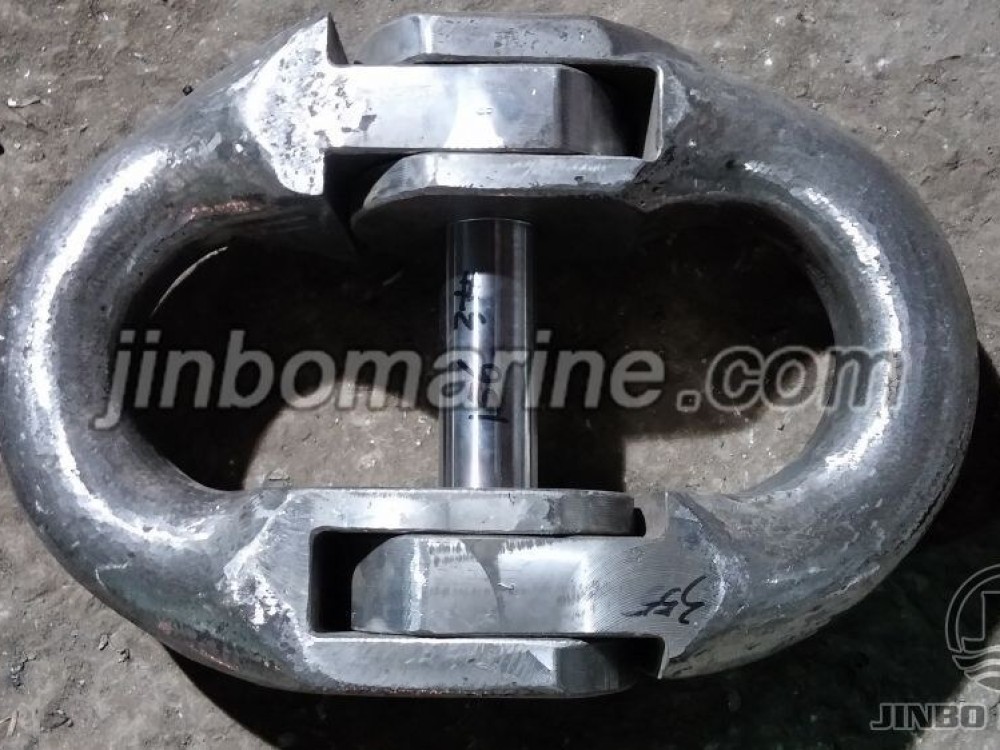

Hinge Link
- Category:Steel Wire Rope
- Material:Alloy Steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Hinge Link:
Material: Alloy Steel, Forging
Finish: Primer and Coating
Used for mooring toowing.
Proof Load Testing
Main Specification:
| Niminal Size(mm) | Wire Rope Size(mm) | SWL(Ton) | Proof Load(Tons) | Weight(kgs) |
| 76 | 50-60 | 110 | 165 | 76 |
| 92 | 62-70 | 150 | 225 | 138 |
| 108 | 76-88 | 240 | 360 | 214 |
