HLF020 Series Hydraulic Jack
- Category:High Pressure Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

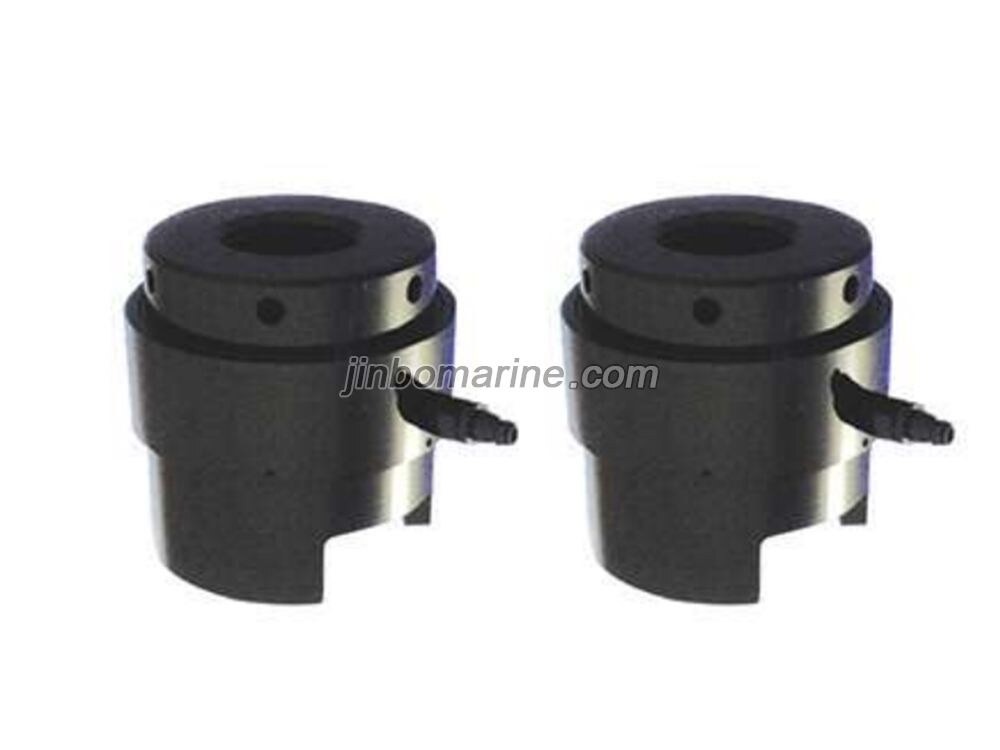

HLF Series Hydraulic Jack
The automatic reset design of the piston is suitable for frequent use. Suitable for stretching single specification bolts with high accuracy. It can be equipped with manual pumps, pneumatic hydraulic pumps, and multiple stretchers can be used simultaneously. The standard working pressure is 150Mpa.
Techincal data:
| Model | Size(mm) |
Maximum stretching (KN) |

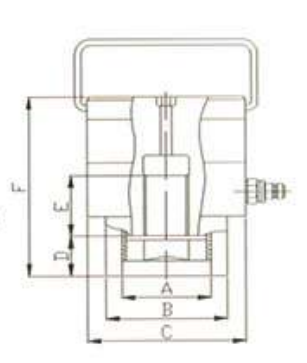

Dimensions(mm) | ||||||
| M | Inch | A | C | D | E | F | |||
| HLF020 | M20 | 51/64 | 200 | 42 | 52 | 65 | 19 | 20 | 94 |
| HLF024 | M24 | 1 | 290 | 49 | 60 | 78 | 22 | 24 | 102 |
| HLF027 | M27 | 1-1/8 | 380 | 55 | 67 | 86 | 25 | 27 | 108 |
| HLF030 | M30 | 1-1/8 | 460 | 61 | 74 | 97 | 27 | 30 | 106 |
| HLF033 | M33 | 1-1/4 | 570 | 66 | 81 | 107 | 29 | 33 | 114 |
| HLF036 | M36 | 1-3/8 | 670 | 71 | 90 | 117 | 32 | 36 | 118 |
| HLF039 | M39 | 1-1/2 | 800 | 77 | 96 | 127 | 34 | 39 | 125 |
| HLF042 | M42 | 1-5/8 | 920 | 83 | 102 | 137 | 37 | 42 | 134 |
| HLF045 | M45 | 1-3/4 | 1080 | 89 | 110 | 148 | 39 | 45 | 135 |
| HLF048 | M48 | 1-7/8 | 1220 | 94 | 116 | 158 | 42 | 48 | 140 |
| HLF052 | M52 | 2 | 1450 | 102 | 128 | 169 | 46 | 52 | 151 |
| HLF056 | M56 | 2-1/4 | 1680 | 106 | 135 | 176 | 49 | 56 | 158 |
| HLF060 | M60 | 2-3/8 | 2010 | 114 | 142 | 199 | 52 | 60 | 167 |
| HLF064 | M64 | 2-1/2 | 2210 | 120 | 151 | 211 | 55 | 64 | 172 |
| HLF068 | M68 | 2-3/4 | 2600 | 124 | 155 | 228 | 58 | 68 | 180 |
| HLF072 | M72 | 2-1/2 | 2880 | 130 | 168 | 238 | 62 | 72 | 186 |
| HLF076 | M80 | 3-1/4 | 3610 | 142 | 188 | 267 | 68 | 80 | 202 |
| HLF080 | M90 | 3-1/2 | 4650 | 160 | 210 | 300 | 77 | 90 | 220 |
| HLF085 | M100 | 4 | 5830 | 178 | 237 | 340 | 85 | 100 | 240 |
