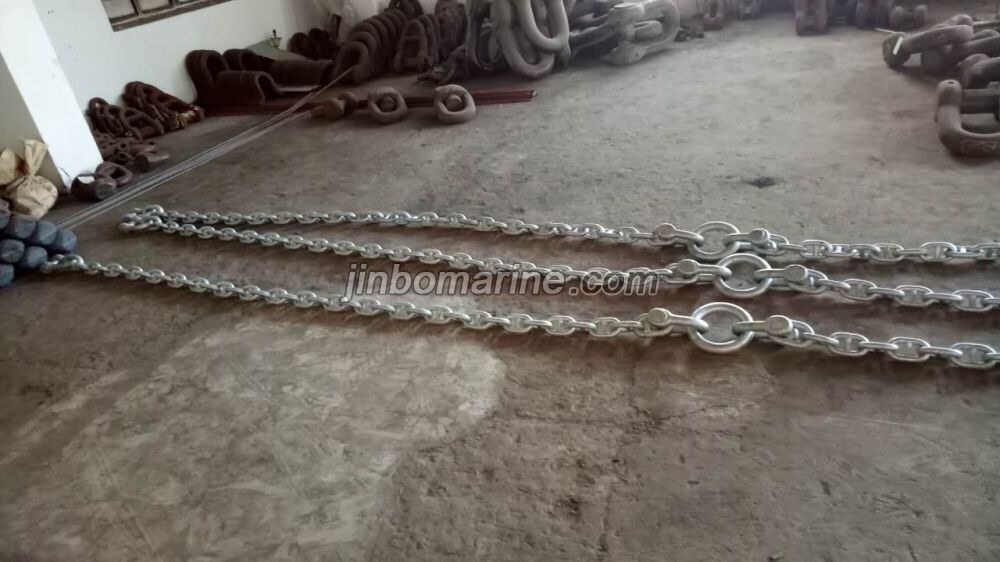

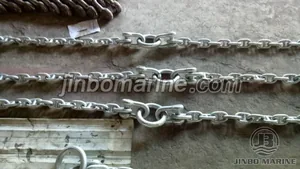

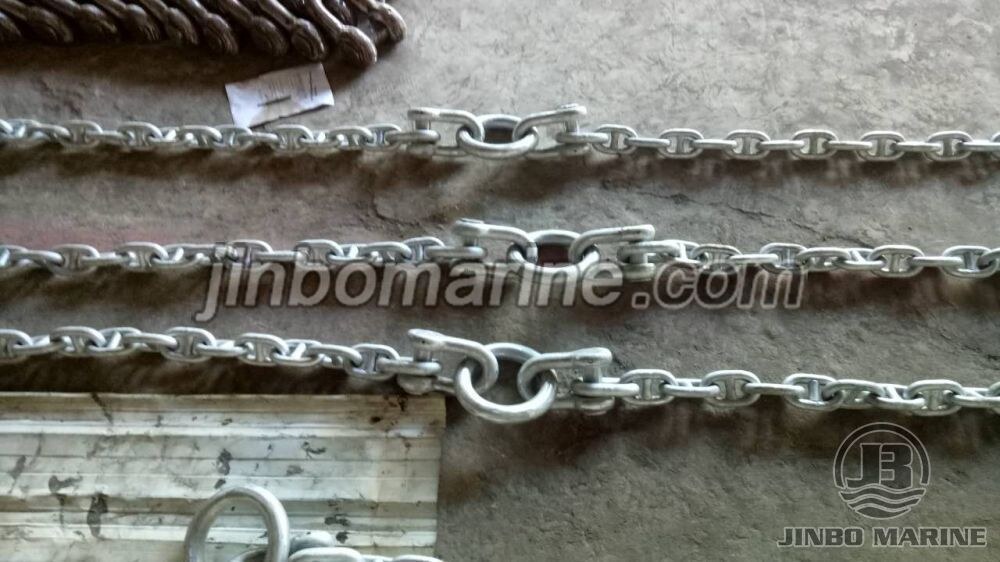

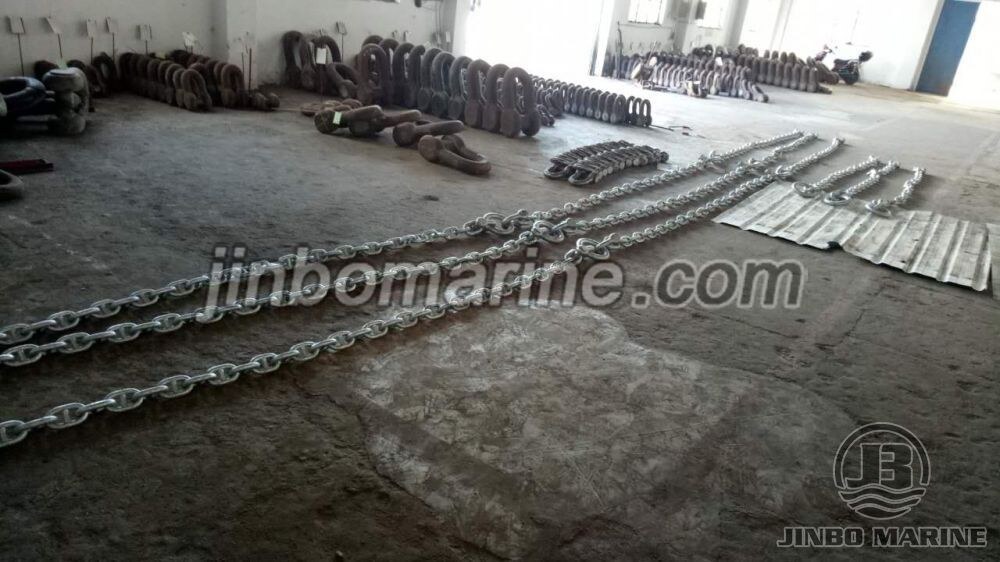

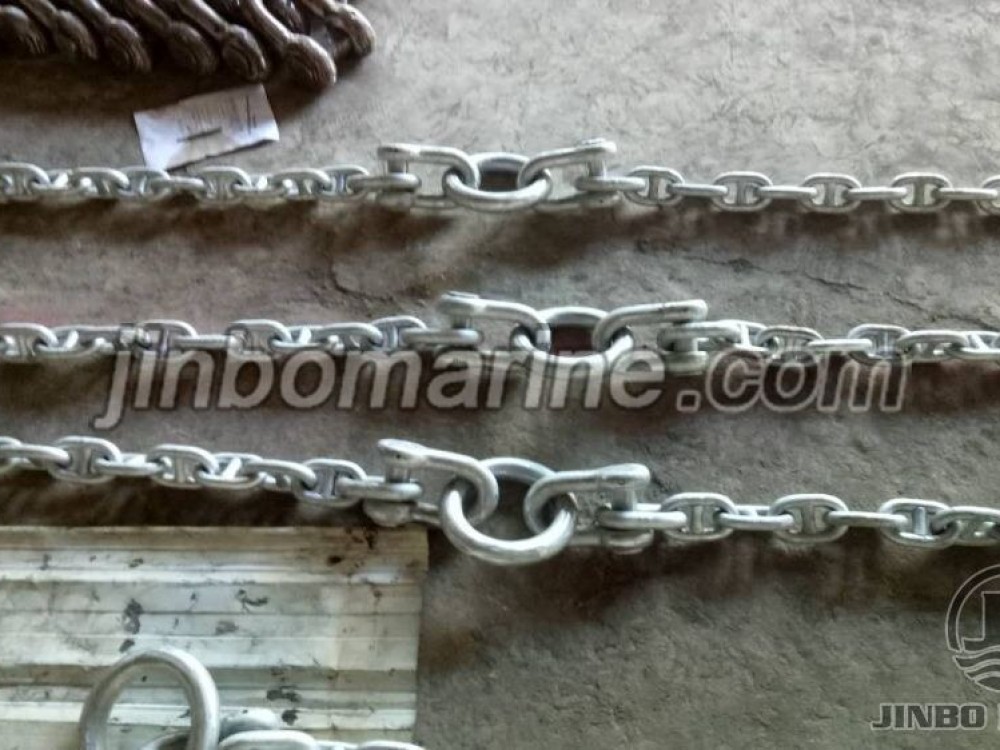

HDG Hose Pick up & Hang off Chain
- Category:Chafe Chain
- Material:Alloy Steel
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China HDG Hose Pick up & Hang off Chain:
HDG Hose Pick up & Hang off Chain used to facilitate lifting and securing of OCIMF Floating Hose String Oil Transfer System, Hose Pick Up & Hang Off asssemblies are available in a variety of configurations to suit requirement.

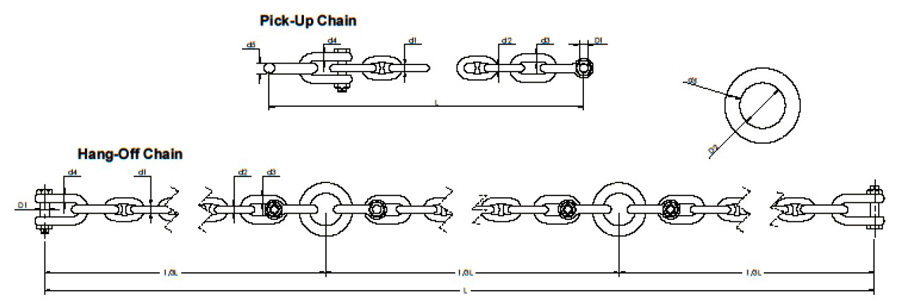

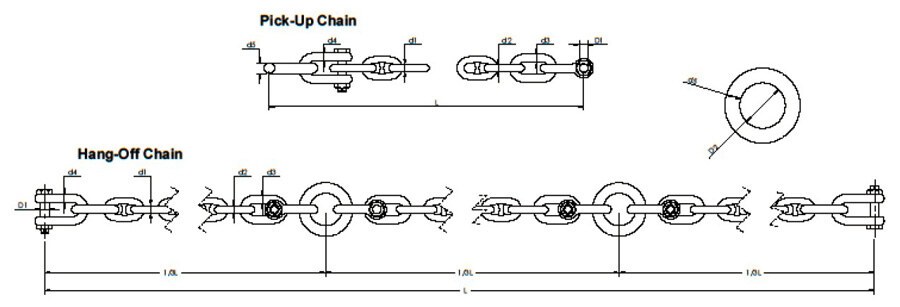

Size Table
| Hose Size | SWL | Proof Load(Kn) | Link Size(mm) | Shackle Size(mm) | Ring Size(mm） | Length L(M) | |||||||
| I/D(ins) | Length(ft) | (Tons) | Gr.2 | Gr.3 | d1 | d2 | d3 | D1 | d4 | D2 | d5 | Hang Off | Pick-up |
| 6,8 &10 | 25 | 5 | 150 | 210 | 19 | 21 | 23 | 25 | 22 | 125 | 30 | 9.14 | 1.5 |
| 30 | 10.67 | ||||||||||||
| 35 | 12.19 | ||||||||||||
| 12 | 25 | 8 | 201 | 281 | 22 | 24 | 26 | 28 | 25 | 125 | 36 | 9.14 | 1.5 |
| 30 | 10.67 | ||||||||||||
| 35 | 12.19 | ||||||||||||
| 16 | 25 | 11 | 278 | 389 | 26 | 28 | 32 | 35 | 32 | 135 | 42 | 9.14 | 1.5 |
| 30 | 10.67 | ||||||||||||
| 35 | 12.19 | ||||||||||||
| 20 | 25 | 15.5 | 367 | 514 | 30 | 33 | 36 | 42 | 38 | 135 | 46 | 9.14 | 1.5 |
| 30 | 10.67 | ||||||||||||
| 35 | 12.19 | ||||||||||||
Hot Dip Galvanized Pick Up & Hang Off Chain
