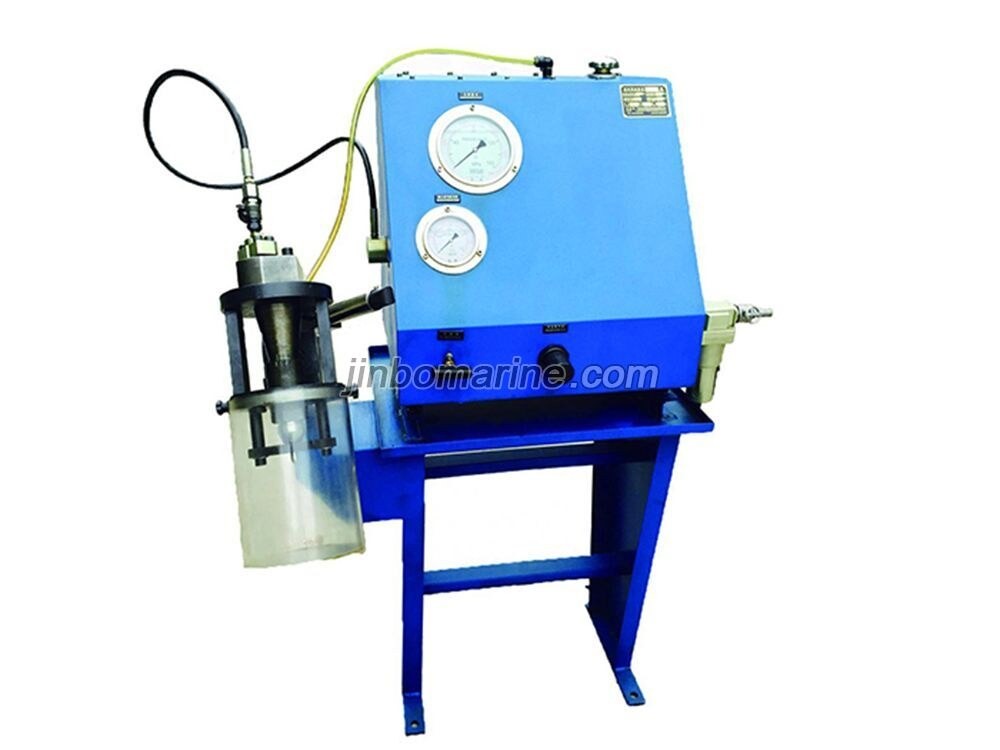

HP-720 Injector Test Bench Pneumatic Hydraulic Pump
- Category:High Pressure Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Hp-720 Injector Test Bench
1、Instructions for use of nozzle test bench
The valve seat series has many clamps, depending on the engine model. The dimensions of all clamps are approximately as follows for special instructions for use of seats equipped with built-in pneumatic / hydraulic tools.
High pressure hose: HD No. hp-720-04
Diameter: about 0.12 mm
Length: About 1000mm
Weight: About 0.5kg
2、Technical specifications
(1) Pneumatic / hydraulic test device
(2) The developed upgradeable pump process was used in the correction test of Sulzer RT telescopic fuel injector.
(3) Pneumatic disassembly / assembly tool support.
(4) The device test of marine fuel injection valve with initial pressure lower than 700bar.
Technical data
| Hydraulic output pressure | 0-720bar at Air input 10bar |
| 0-500bar at Air input 7bar | |
|
The air consumption is about 3300 L/min. Connect to 7bar air system with minimum 3/4" hose. |
|
| Maximum flow | 6L/min at 7bar air input, 0bar output |
| 4L/min at7bar air input,420bar output | |
| 2.8L/min at10bar air input,，700bar output | |
| Qty. of Pump | 6 sets HD AD070 pump |
| Maximum cycle frequency | 450 circulation/min at 7bar air input, 0bar output pressure |
| Actual outflow per cycle | 6cm3 |
| Tank capacity | 20L |
| Weight | 130Kgs Net Weight (Valve Seat 35kgs) |
| Size | 843x1032x1458mm (WxLxH) |
