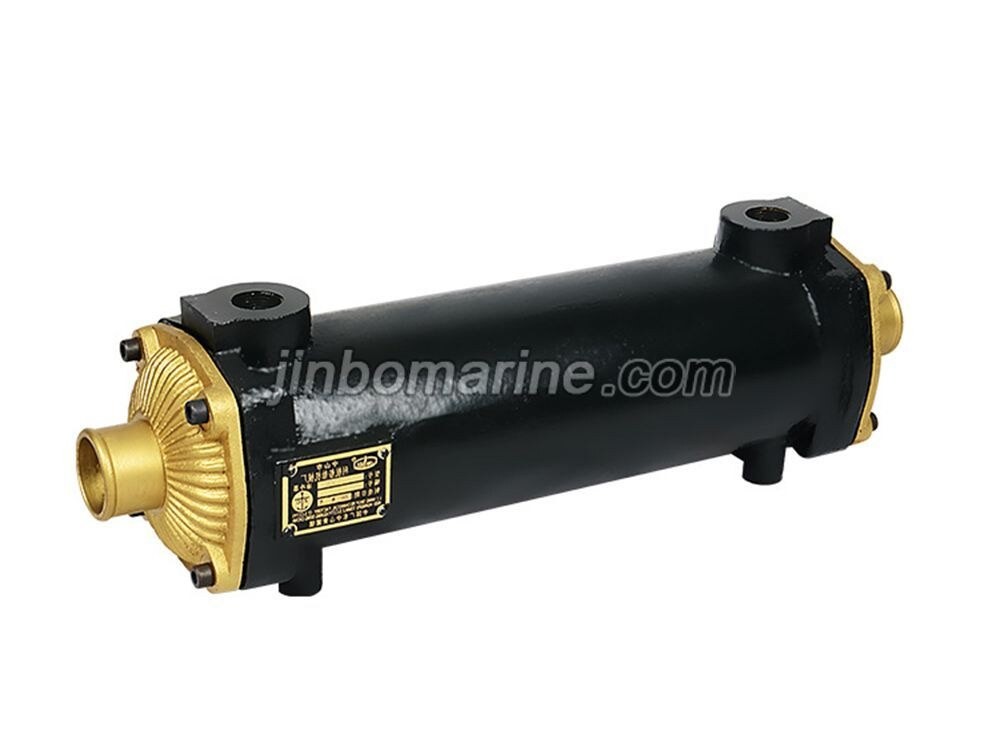

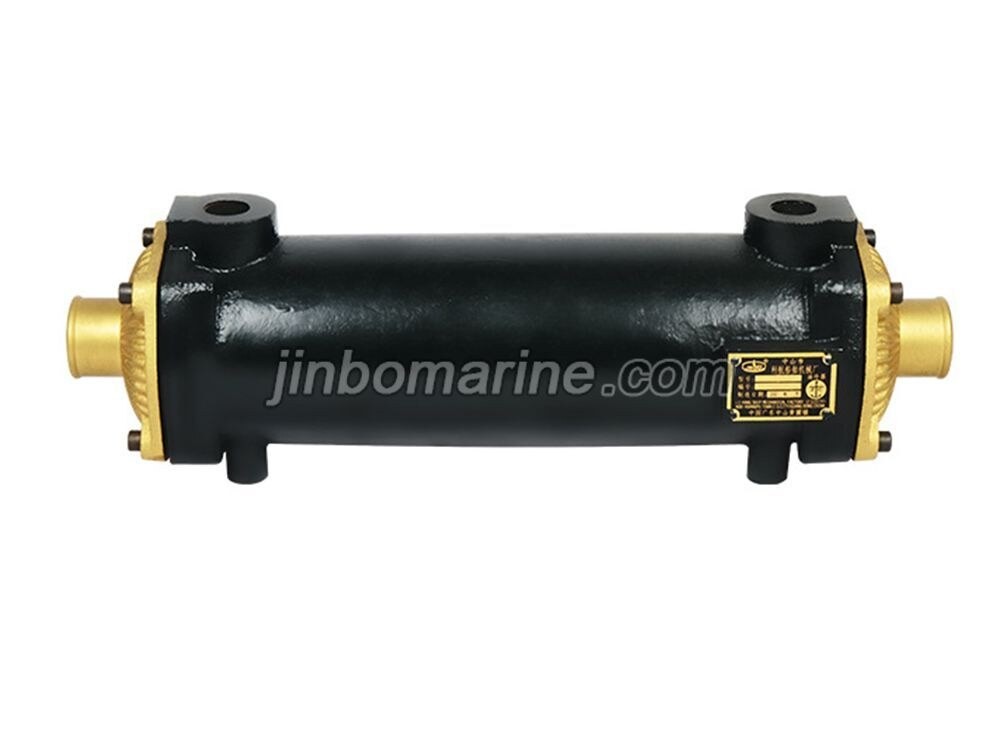

HP Diesel Engine SL190-SL386 Oil Cooler

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China HP Diesel Engine SL190-SL386 Oil Cooler:

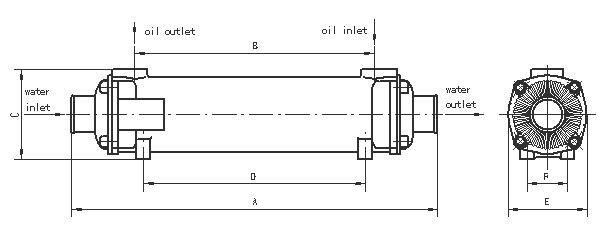

PARAMETER\TYPE A B C D E F DIAMETER DIAMETER AREA OF SCOPE
OF OIL OF SEA COOLING m2 APPLICABLE
mm mm mm mm mm mm WATER (FOR REFERENCE)
SL-135 374 224 115 168 97 50 M22×1.5 11/2" 0.25 135 watercraft
gear case
SL-190 289 140 103 104 95 52 G 3/4" 11/2" 0.17 40-72 HP diesel engine
SL-280 384 223 103 190 95 52 G 3/4" 11/2" 0.25 80-105 HP diesel engine
SL-D300 490 344 115 168 97 50 M22×1.5 11/2" 0.36 D300 HP diesel engine
SL-366 470 310 103 276 95 52 G 3/4" 11/2" 0.33 108-150 HP diesel engine
SL-376 468 324 140 288 125 50 G 3/4" 11/2" 0.55 240 HP diesel engine
SL-386 520 350 170 340 155 70 G 3/4" G11/4" 1 350-400 HP diesel engine
SL-VTA28 692 460 207 460 194 82 13/4" 23/8" 2.19 VTA28 HP diesel engine
