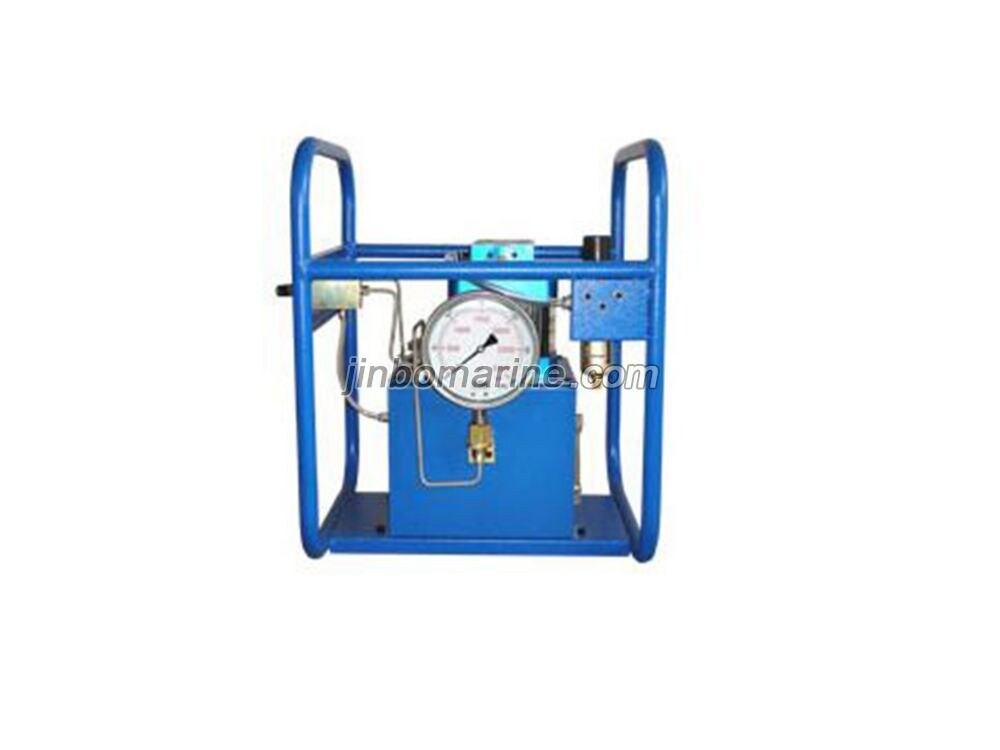

HPU-250 pneumatic hydraulic high pressure pump

HPU-250 pneumatic hydraulic high pressure pump is a new type of hydraulic stretching and pressing process equipment. It converts the lower air pressure into pressure oil and becomes an ideal power source.

HPU-250 pneumatic hydraulic high pressure pump has the advantages of high output pressure, simple operation, safety and reliability, convenient carrying and so on. It can be widely used for fastening large and medium-sized mechanical screws and keyless matching of large transmission parts and structural parts in manufacturing industries such as metallurgy, mining, petrochemical industry, shipbuilding industry, locomotive and rolling stock. It is time-saving, labor-saving, uniform force distribution and reliable sealing. It is an ideal tool for the assembly and matching of various large and medium-sized machinery

Specification:

Model HPU-250 pneumatic hydraulic high pressure pump
Output pressure Maximum 250 MPa (input air pressure 0.7MPa)
Pump operating speed About 450 cycles / min (input air pressure 0.8MPa)
Oil supply per cycle 0.8ml-0.049Cubic inch
Air consumption 1.05x L / min (input air pressure 0.8MPa)
Tank capacity Approx. 9.5 litres
Maximum flow (air pressure) About 0.35 L / min (input air pressure 0.8MPa)
Weightt 27KG (net weight)
Size 550×450×600mm
