Hydraulic Towing Winch
- Category:Marine Winch
- Certificate:ABS,LR, BV, GL, CCS, RINA, IRS
- Material:Cast steel,Stainless steel
- Packing Details:Nude Packing
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

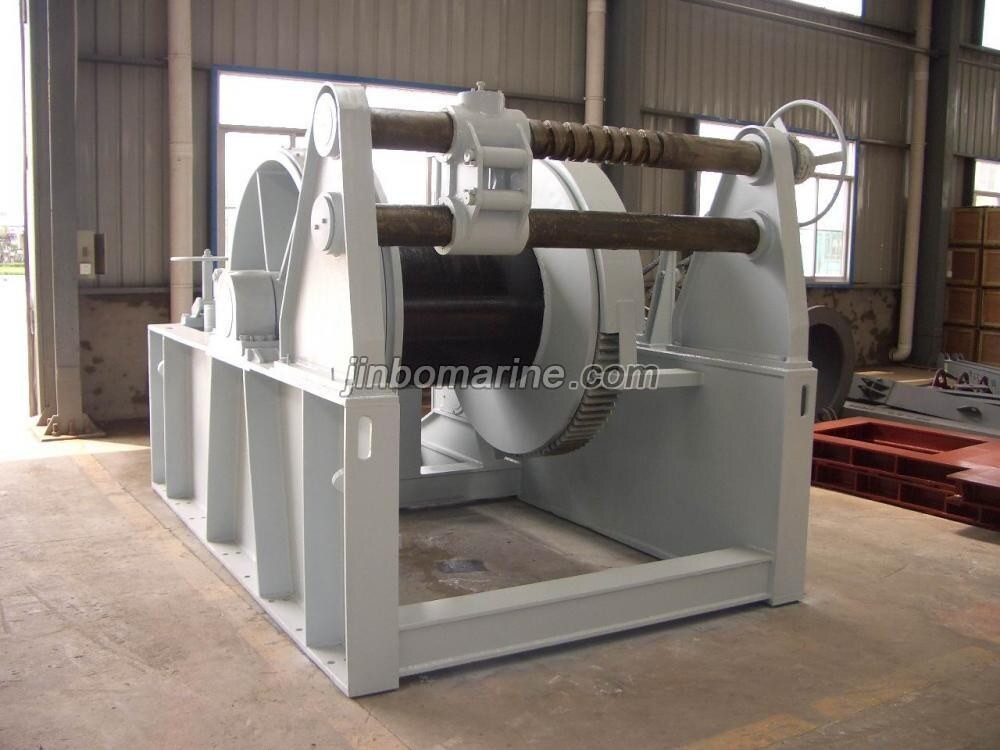

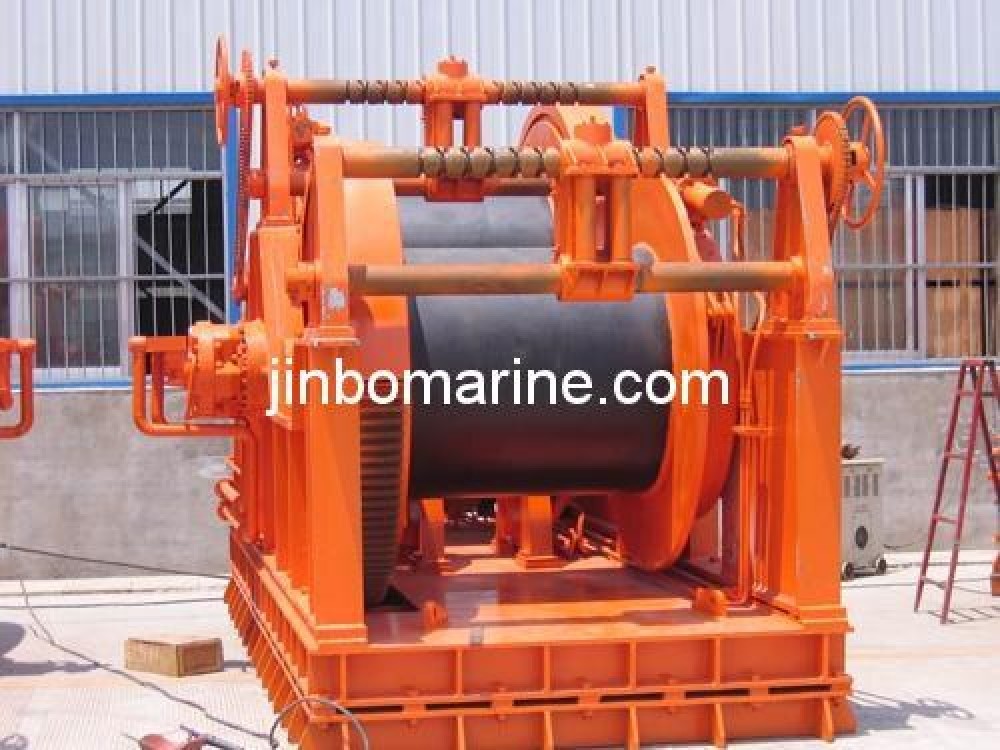

Hydraulic Towing Winch
General description
Wild range towing capacity can fit different vessel for towing operation with electric or hydraulic power driven by electric or diesel engine. High quality, easy operation, compact design, smooth operation for the lines without twisting.

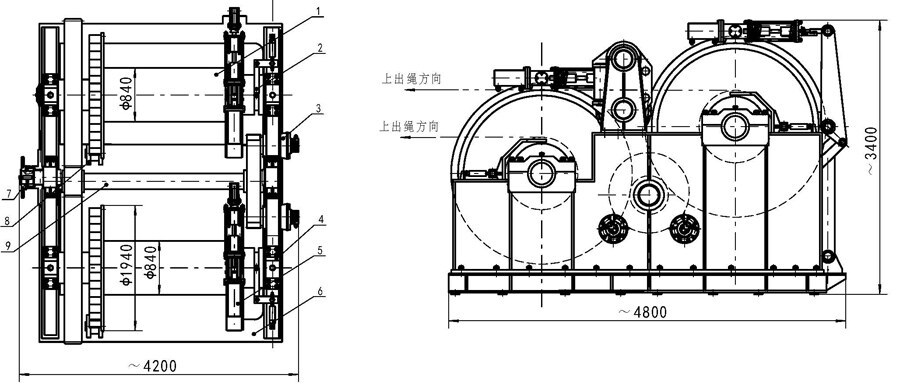

Installation drawing
1.Main shaft 2.The clutch device 3.Hyd.motor 4.Shoulder 5.Brake 6.Foundation 7.Rope device 8.Detent 9.Intermediate shaft device

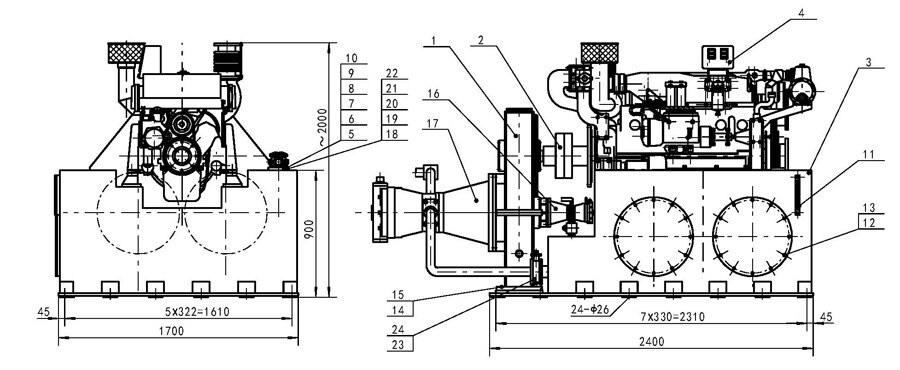

Diesel engine drawing
1.Switch box 2.Coupling 3.Oil tank 4.Diesel engine 5.Valve block 6.Air cleaner 7.Oil filter 8.Relief valve 9.Pressure switch 10.Pressure metre 11.Oil level and temp metre 12.Bolt 13.Gasket 14.Bolt 15.Gasket 16.Plunger pump 17.Plunger pump 18.Change valve 19.Relief valve 20.One-way valve 21.Check valve 22.Close valve 23.butterfly valve 24.Coupling
Main Specification
|
Description
|
Rated Pull | Rated Speed | Drum Capacity | Ele-Motor Power | Hydr-Motor Power |
| (kN) | (m/min) | (m) | (kW) | (kW) | |
| 5kN Electric Towing Winch | 5 | ≥12 | Ø8×100 | 3/1.2 | - |
| 10kN Electric(Hydraulic) Towing Winch | 10 | ≥12 | Ø10×150 | 4.3/1.7 | 5.5 |
| 20kN Electric(Hydraulic) Towing Winch | 20 | ≥12 | Ø15×150 | 8.5/3.5 | 11 |
| 30kN Electric(Hydraulic)Towing Winch | 30 | ≥15 | Ø17×150 | 11/11/7.5 | 15 |
| 40kN Electric(Hydraulic)Towing Winch | 40 | ≥15 | Ø18×150 | 16/16/11 | 22 |
| 50kN Electric(Hydraulic)Towing Winch | 50 | ≥15 | Ø20.5×180 | 22/22/16 | 30 |
| 75kN Electric(Hydraulic)Towing Winch | 75 | ≥15 | Ø26×200 | 30/30/22 | 45 |
| 80kN Electric(Hydraulic)Towing Winch | 80 | ≥15 | Ø26×200 | 30/30/22 | 45 |
| 100kN Electric(Hydraulic)Towing Winch | 100 | ≥15 | Ø30×200 | 45/45/30 | 45 |
| 125kN Electric(Hydraulic)Towing Winch | 125 | ≥15 | Ø30×200 | 45/45/30 | 75 |
| 160kN Electric(Hydraulic)Towing Winch | 160 | ≥15 | Ø32×250 | 60/60/45 | 75 |
| 200kN Electric(Hydraulic)Towing Winch | 200 | ≥9.6 | Ø41×250 | 60/60/45 | 75 |
| 250kN Electric(Hydraulic)Towing Winch | 250 | ≥9.6 | Ø44.5×250 | 60/60/45 | 90 |
| 315kN Electric(Hydraulic)Towing Winch | 315 | ≥7.8 | Ø52×250 | 60/60/45 | 90 |
| 400kN Electric(Hydraulic)Towing Winch | 400 | ≥7.8 | Ø56×250 | 85/85/64 | 110 |
| 450kN Electric(Hydraulic)Towing Winch | 450 | ≥7.8 | Ø56×250 | 85/85/64 | 110 |
| 1500kN Electric(Hydraulic)Towing Winch | 1500 | ≥4 | Ø95×250 | 150/150/72 | 200 |
| 2000kN Electric(Hydraulic)Towing Winch | 2000 | ≥4 | Ø100×250 | 180/180/135 |
270 |
