IMPA 590463 TD-24P replace JEX-24 Pneumatic Jet Chisels
- Category:Marine Tools
- Standards:IMPA Standard
- IMPA Code:590463
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

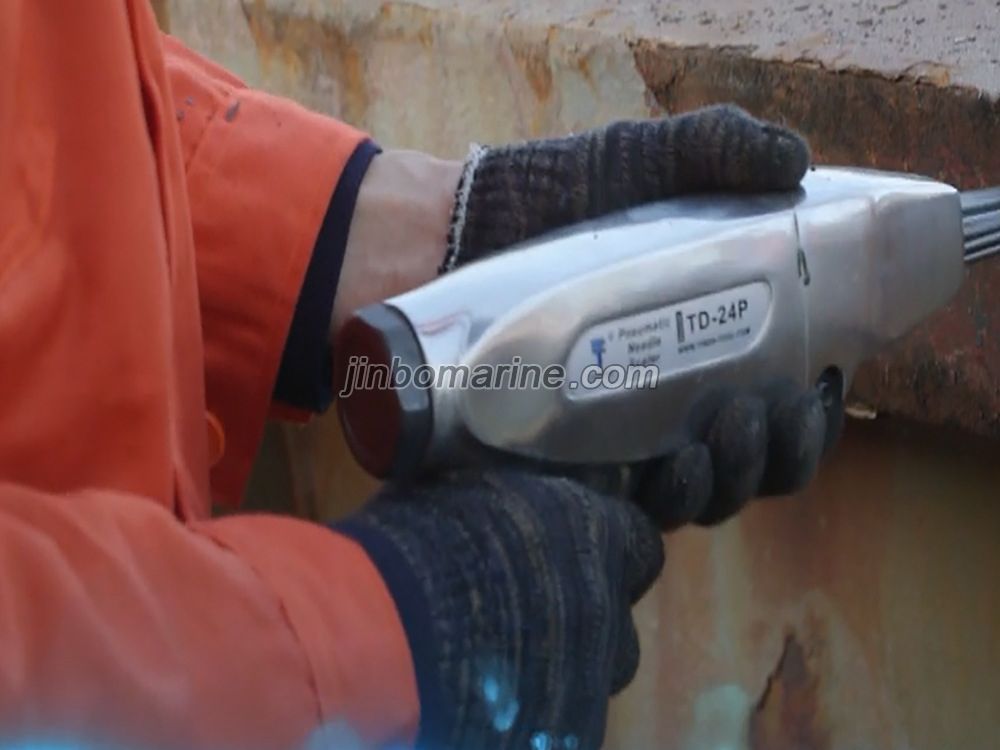

China TD-24P replace JEX-24 Pneumatic Jet Chisels:
IMPA 590463 TD-24P replace JEX-24 Pneumatic Jet Chisels, Air Needle Guns/ Pneumatic Jet Chisels/ Pneumatic Rattling Needle Chisels. The rust removal needles can be automatically adjusted to the outline of corners, deep holes, and curvature/ uneven surfaces to efficiently implement derusting, cleaning, chipping works. Our models, with the characters of light weight, reliable performance, easy operation & maintenance, are being widely applied in Marine, Constructions, Metal casting, Car care industries, or even for DIV at home.
Technical data:
| Model | TD-16P | TD-20P | TD-24P | TD-28P | |
| IMPA Code | 590161 | 590462 | 590463 | 590464 | |
| Body Shape | Pistol-grip | In-line | Pistol-grip | Pistol-grip | |
| Replace Model | JC-16 | JT-20 | JEX-24 | JEX-28 | |
|
Working
Pressure (Mpa) |
0.6-0.8 | ||||
|
Est.
Air Consumption (CBM/min) |
0.15 | 0.2 | 0.27 | 0.35 | |
|
Free
Load Blows Per Minute (BPM) |
4000 | 4000 | 4000 | 4500 | |
| Compatible Needles | Φ2*150mm | 29s | |||
| Φ2*180mm | 29s | 53s | 66s | ||
| Φ3*180mm | 12s | 23s | 28s | ||
| Φ4*180mm | 14s | ||||
| Standard Air Inlet | 30PM Quick-connection coupler | ||||
|
Unit
Weight (Kgs) |
1.5 | 2.5 | 2.7 | 3.5 | |
