Inflatable Rubber Fender
- Category:Marine Fender
- Material:Rubber
- Standards:ISO 17357 2002.
- Certificate:CCS,ABS,DNV,BV,RINA,LR,mill certificate etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Inflatable Rubber Fender.pdf
Details
Product Specification
Inflatable fender consist of 3 main layers: Inner Rubber, Reinforced Tyre Cord and Outer Rubber. The above components are mould-vulcanized as one body under high pressure after they have been assembled. End flanges are at both end for convenience of air charge and other purposes.

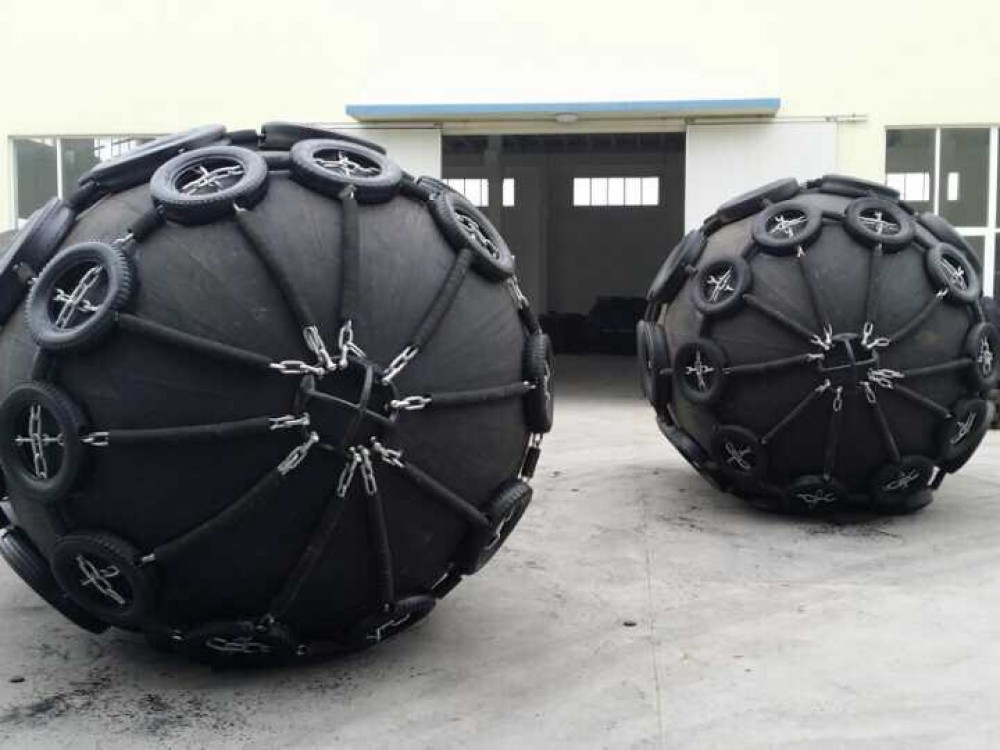

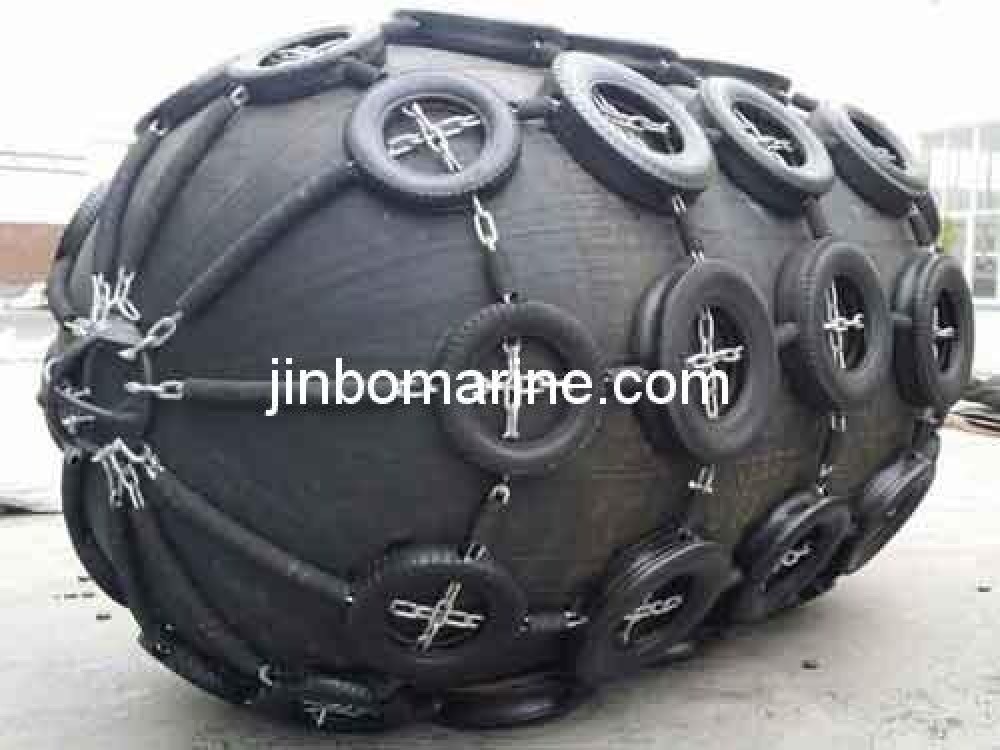

Marine fender have tyre network type,rubber network type and cord network type. We normally recommend fenders with a chain and tyre net for protection of the fender body(tyre network type),of course they can also be delivered without one.
Feature
1.high absorption of energy.
2.easy to be install and maintenance due to simple shape.
3.It can be widely used and it will be suitble to any size of the ship or wharf.
4.It can be absorbed most of the impact energy of pitching and rolling when ship alongside.
5.low pressure of unit area acting on ship.
6.excellent impact fatigue resistance.

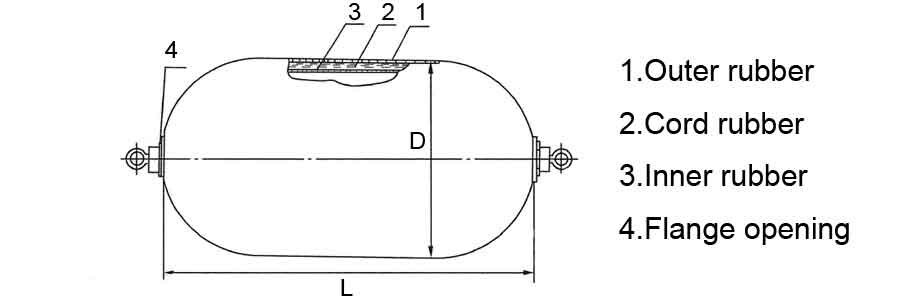

Structure Of Inflatable Rubber Fender
Size Chart
|
Specifications (mm) |
At 60% compression; |
Fender Boday Weight |
||
|
Initial Pressure is 0.05MPa |
±10% |
|||
|
Diameter |
Length |
Energy Absorption |
Reaction Force |
KG |
|
(KJ) |
(KN) |
|||
|
200 |
500 |
2 |
25 |
6 |
|
300 |
500 |
3 |
32 |
12 |
|
500 |
1000 |
6 |
64 |
25 |
|
600 |
1200 |
10 |
86 |
35 |
|
700 |
1500 |
17 |
137 |
50 |
|
1000 |
1500 |
32 |
181 |
80 |
|
1000 |
2000 |
45 |
257 |
100 |
|
1200 |
2000 |
63 |
297 |
120 |
|
1350 |
2500 |
100 |
426 |
170 |
|
1500 |
3000 |
153 |
579 |
320 |
|
1700 |
3000 |
190 |
637 |
400 |
|
2000 |
3500 |
308 |
875 |
590 |
|
2500 |
4000 |
663 |
1380 |
1000 |
|
2500 |
5500 |
932 |
2010 |
1400 |
|
3000 |
5000 |
1050 |
2030 |
1800 |
|
3000 |
6000 |
1315 |
2488 |
2200 |
|
3300 |
6500 |
1814 |
3015 |
2700 |
|
3500 |
6000 |
2018 |
3286 |
2800 |
|
3500 |
6500 |
2325 |
3656 |
3200 |
|
3500 |
7000 |
2650 |
4018 |
3600 |
|
3600 |
7200 |
3180 |
4821 |
4320 |
Other sizes besides the above also can be customized.
Initial pressure:both 0.05MPA and 0.08MPA available.
