Japan Stock Anchor
- Category:Marine Stock Anchor
- Material:Casting Steel
- Standards:GBT-548-1996
- Certificate:ABS, LR, BV, DNV, GL, RINA, NK, KR, RS, IRS, CCS
- Delivery Time:30 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Japan Stock Anchor:
Danforth High Holding Power Anchor
Japan Stock Anchor is from 500KGS to 8000KGS, the structure is simple, but the holding-power-to-weight is up to 12, this anchor is used as Stern Anchor for boat and sailing vessel.
We can delivery the anchors to you as per your requirement.
Technical Specification:
Material: Casting Steel
Weight: 500KGS-8000KGS
Classification: LR, ABS, DNV, GL, BV, NK, KR, IRS and CCS Certificate.

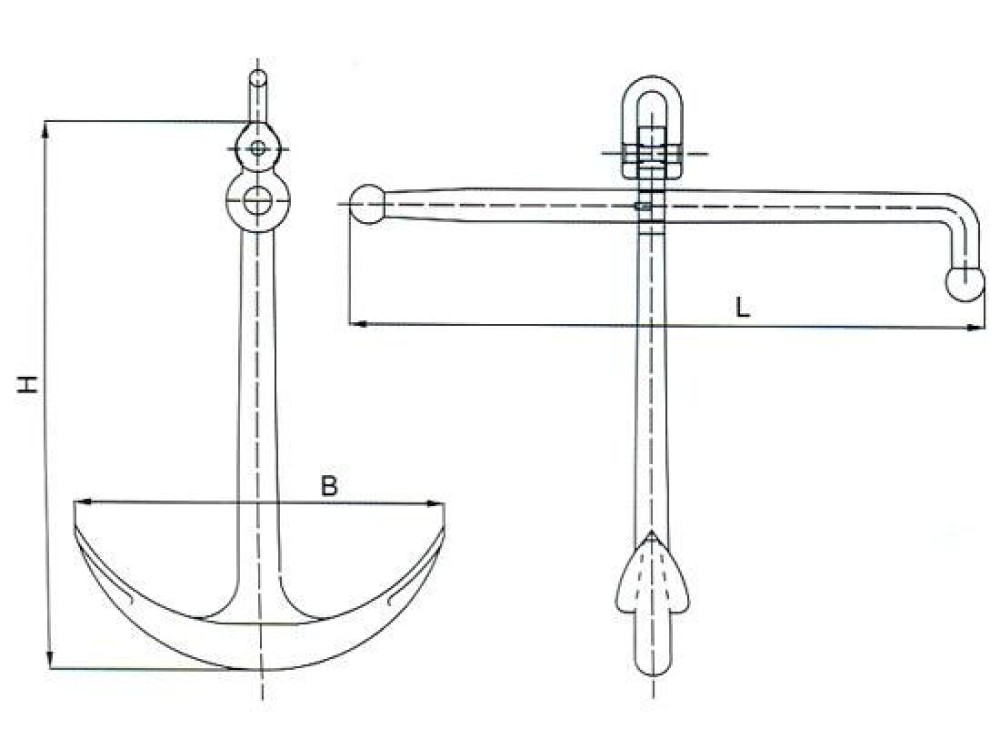

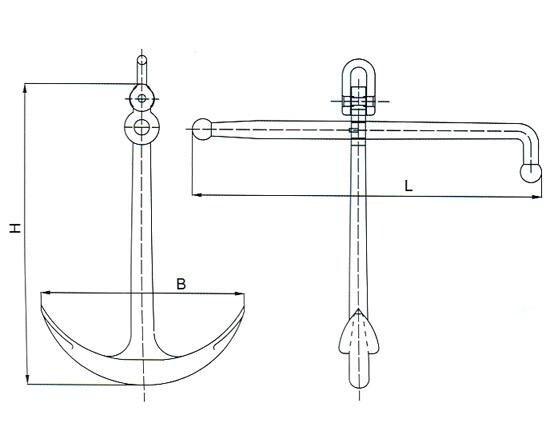

Dimension Table:
|
Nominal
Weight (KG) |
Size(mm) | ||
| H | L | B | |
| 500 | 2000 | 2065 | 1350 |
| 700 | 2260 | 2335 | 1510 |
| 750 | 2310 | 2342 | 1560 |
| 1000 | 2550 | 2637 | 1700 |
| 1500 | 2890 | 2960 | 1950 |
| 2000 | 3160 | 3272 | 2140 |
| 3000 | 3630 | 3555 | 2650 |
| 3500 | 3810 | 3820 | 2570 |
| 4000 | 4000 | 4135 | 2920 |
| 5000 | 4310 | 4470 | 3140 |
| 6000 | 4580 | 4740 | 3330 |
| 7000 | 4820 | 4980 | 3530 |
| 8000 | 5040 | 5215 | 3620 |
.JPG)
