Jason's Lifesaving Hanging Net

Request a Quote Not what you need, please send your RFQs via Email.

Download this page

Details

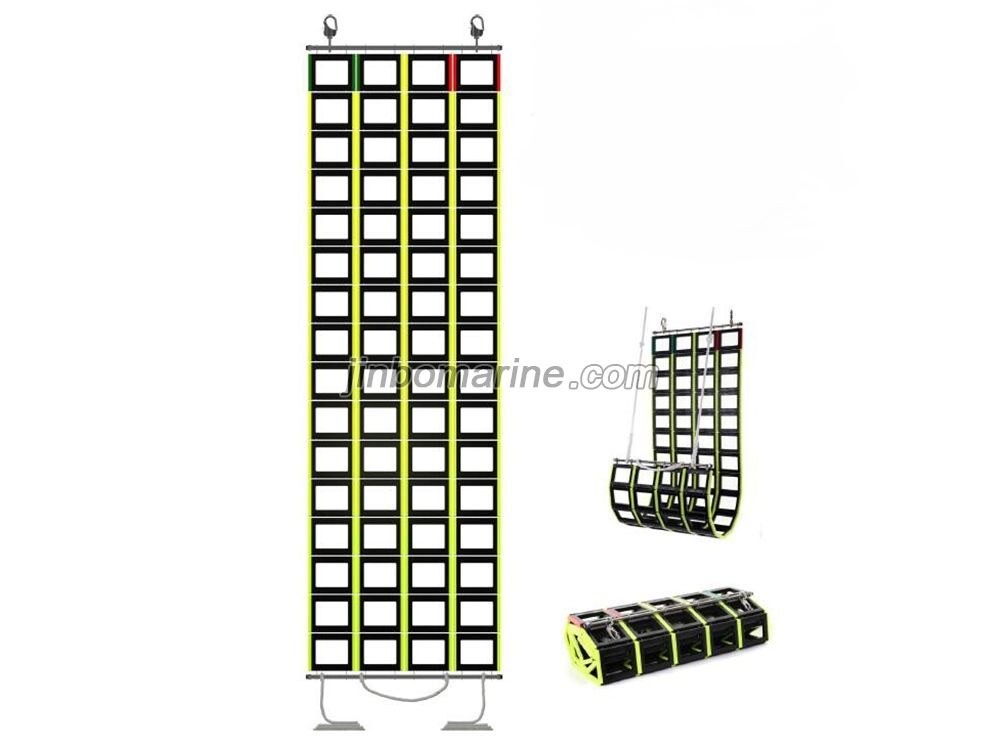

Jason's Lifesaving Hanging Net is fixed on the deck or pathway normally,in order to use it in several seconds.

It is easy to fold and store.

When use it , not easy to transformation and get stuck.

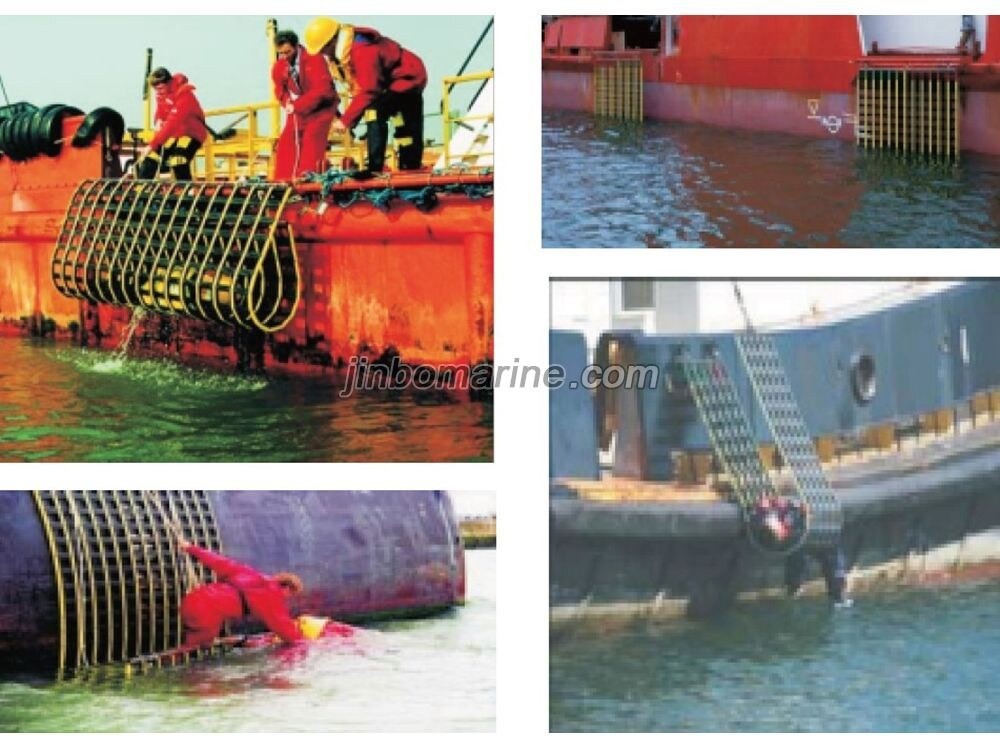

The man overboard can climb the hanging net by hand.

If there have injured rescued people,can be rescue on board easily, and won't be extruding by the hanging net.

In case of an emergency,it can allow many peoples to rescue or evacuate meanwhile.

Working Range	Width(mm)	Length(mm)	N.W.(kg)	Dia(mm)	G.W.kg	Width(mm)
1JBSTD04A 710mm Width - 0 to 1m Clear height	710	2290	18.3	37	22	42x42x80
1JBSTD04B 710mm Width - 1m to 1.5m Clear height	710	2860	22.4	39	66
1JBSTD04C 710mm Width - 1.5m to 2m Clear height	710	3430	26.3	42	31
1JBSTD04D 710mm Width - 2m to 2.5m Clear height	710	4000	31	43	36
1JBSTD04E 710mm Width - 2.5m to 3m Clear height	710	4570	35.1	46	41
1JBSTD05A 880mm Width - 0 to 1m Clear height	880	2290	22.4	37	28	42x42x100
1JBSTD05B 880mm Width - 1m to 1.5m Clear height	880	2860	27.7	39	33
1JBSTD05C 880mm Width - 1.5m to 2m Clear height	880	3430	33.1	42	39
1JBSTD05D 880mm Width - 2m to 2.5m Clear height	880	4000	38.4	43	44
1JBSTD05E 880mm Width - 2.5m to 3m Clear height	880	4570	43.3	46	49
1JBSTD06A 1050mm Width - 0 to 1m Clear height	1050	2290	26.7	37	32	42x42x120
1JBSTD06B 1050mm Width - 1m to 1.5m Clear height		2860	32.8	39	38
1JBSTD06C 1050mm Width - 1.5m to 2m Clear height		3430	39	42	44
1JBSTD06D 1050mm Width - 2m to 2.5m Clear height		4000	45.3	43	51
1JBSTD06E 1050mm Width - 2.5m to 3m Clear height		4570	51.5	46	57
