JB-4000 Radar Sart
- Category:Marine Navigation Equipment
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China JB-4000 Radar Sart:
1. operation frequency: 9200MHz ~ 9500MHz
2. polarization: horizontal
3. antenna: horizontal beamwidth omnidirectional <±2dB
vertical beamwidth ±12.5°
4. transmitter: scanning velocity foreward sweep time: 7.5±0.1μs;return sweep time: 0.4±0.1μs
Radiation power ≥400mw;Response delay <0.5μs
5. receiver: effective sensitivity≤-50dBm;Recovery time following excitation <10μs
6. operation temperature: -20℃ ~ +55℃
7. storage temperature: -30℃ ~ +65℃
8. battery: standby duration 96h, continuous operation 8h

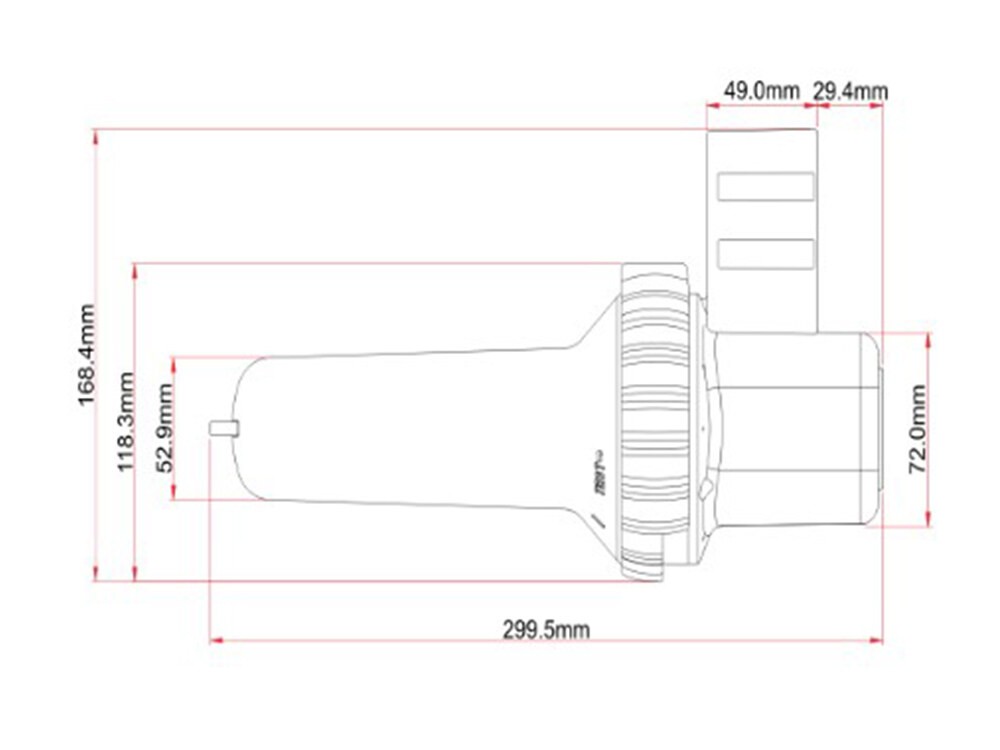

9. dimension: Max diameter: 118mm (brackets and accessories are excluded)
Max height: 299.5mm (special handspike excluded)
10. weight: < 1.5kg
2. polarization: horizontal
3. antenna: horizontal beamwidth omnidirectional <±2dB
vertical beamwidth ±12.5°
4. transmitter: scanning velocity foreward sweep time: 7.5±0.1μs;return sweep time: 0.4±0.1μs
Radiation power ≥400mw;Response delay <0.5μs
5. receiver: effective sensitivity≤-50dBm;Recovery time following excitation <10μs
6. operation temperature: -20℃ ~ +55℃
7. storage temperature: -30℃ ~ +65℃
8. battery: standby duration 96h, continuous operation 8h
9. dimension: Max diameter: 118mm (brackets and accessories are excluded)
Max height: 299.5mm (special handspike excluded)
10. weight: < 1.5kg
