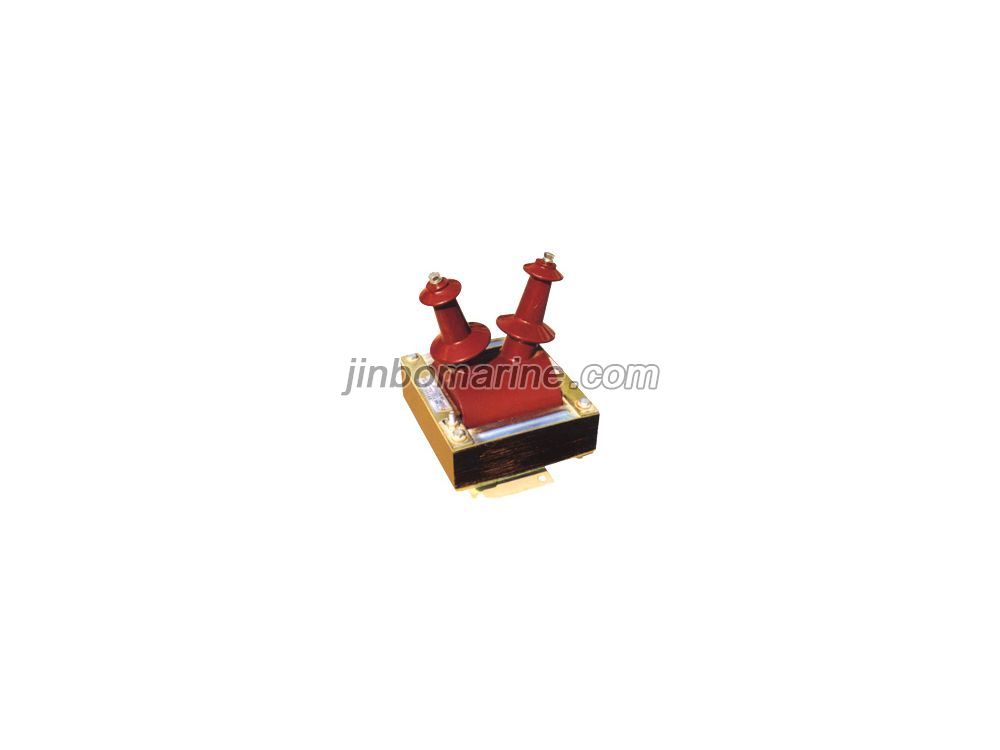

JDZ-10 Voltage Transformer
- Category:Marine Transformers
- Delivery Time:15 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
JDZ-10 Voltage Transformer
The product complies with standards GB1207 and IEC186
JDZ-10 Voltage Transformer Parameters
| Model | Rated Voltage Ratio/V | Rated Frequency/Hz |
| JDZ-3 |
1000/100 2000/100 3000/100 |
50,60 |
| JDZ-6 | 6000/100 | |
| JDZ-10 |
10000/100 10000/100/100 |
|
| JDZJ-3 |
2000/√3/100/√3/100/3 3000/√3/100/√3/100/3 |
|
| JDZJ-6 | 6000/√3/100/√3/100/3 | |
| JDZJ-10 | 10000/√3/100/√3/100/3 | |
| Model | Rated Output/VA | Ultimate Output /VA | ||||
|
0.2 grade |
0.5 grade |
1 grade |
3 grade |
6P grade |
||
| JDZ-3 | / | 30 | 50 | 80 | / | 200 |
| JDZ-6 | / | 50 | 80 | 200 | / | 400 |
| JDZ-10 | / | 80 | 150 | 300 | / | 500 |
| 40 | / | / | / | / | 200 | |
| 25 | 50 | / | / | / | 200 | |
| JDZJ-3 | / | 30 | 50 | 80 | 50 | 200 |
| JDZJ-6 | / | 50 | 80 | 200 | 50 | 400 |
| JDZJ-10 | / | 50 | 80 | 200 | 50 | 400 |
| 20 | / | / | / | 50 | 200 | |

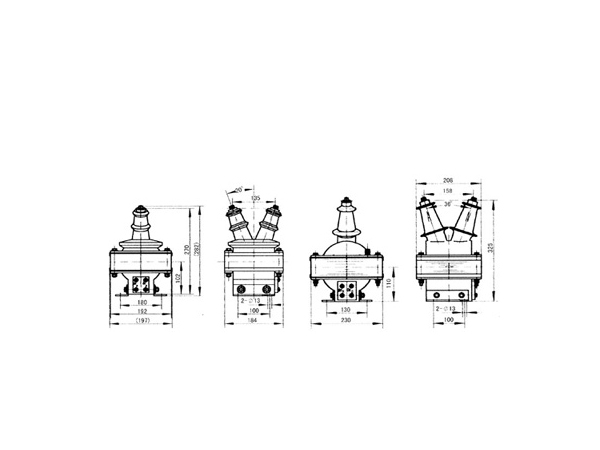

JDZ-10 Voltage Transformer Drawing
