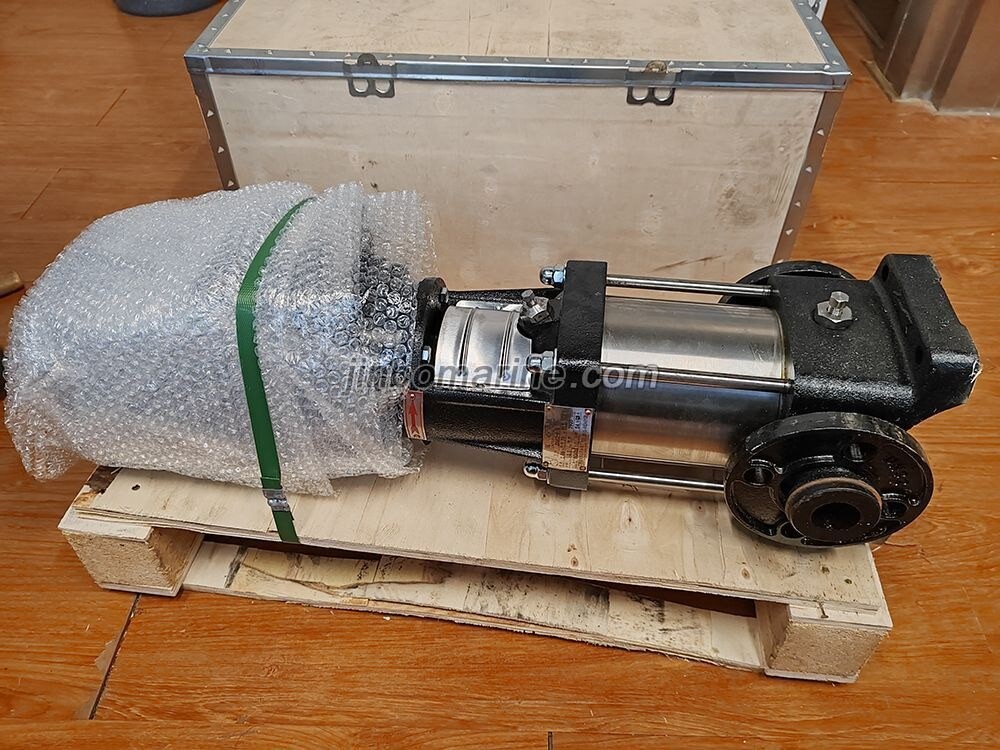

JGGC2-9/S Marine Centrifugal Pump
- Category:Centrifugal Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
JGGC2-9/S Marine Centrifugal Pump
JGGC/QDLF is a kind of multifunctional products. It can be used to convey various mediums from tap water to industrial liquid at different temperature and with different flow rate and pressure. JGGC/QDL type is applicable to conveying non-corrosive liquid, white JGGCN/QDLF is suitable for slightly corrosive liquid.
·Water supply: Water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.
·Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, and fire fighting system.
·Industrial liquid conveying: Pump For Marine Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali,
·Water treatment: Ultra filtration system, reverse osmosis system, distillation system, separator, swimming pool
·Irrigation: Farmland irrigation, spray irrigation, dripping irrigation
JGGC/QDLF is a kind of vertical non–self-priming multistage centrifugal pump, which is driven by a standard electric motor. The motor output shaft directly connects with the bet pump shaft through a coupling.

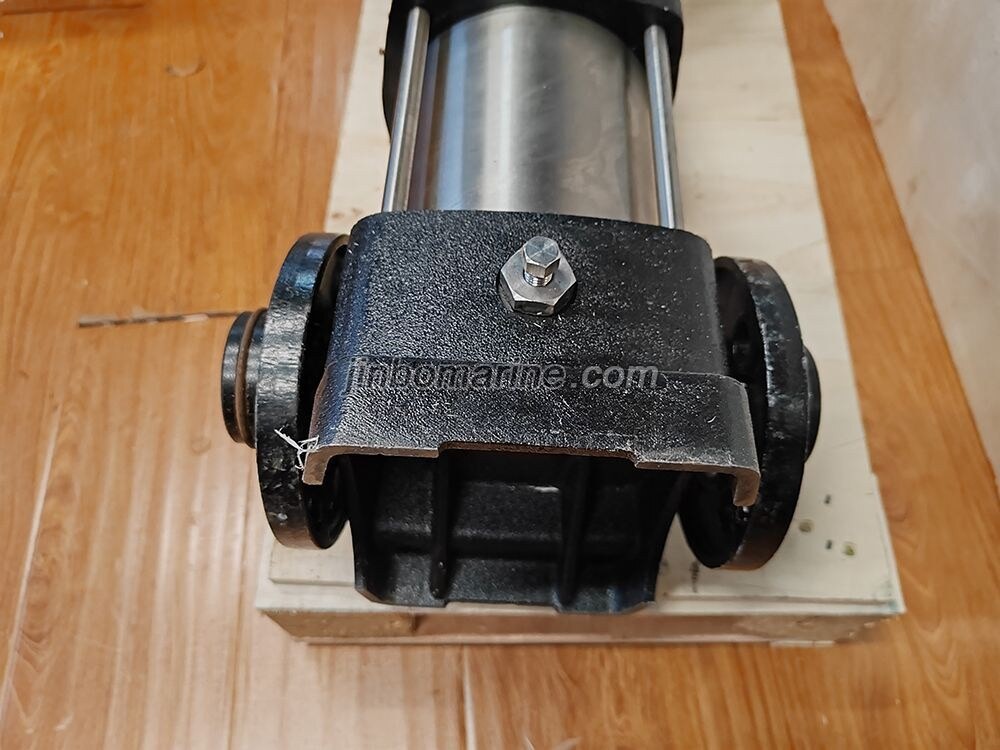

The pressure-resistant cylinder and flow passage components are fixed between pump head and in-and Outlet section with tie-bar bolts the inlet and outlet is Located at the pump bottom at the same plane. This Kind of pump can be equipped with an intelligent protector to effectively prevent it from dry running,
Out-of-phase and overload.
Pumps for Marine
Our product driven by Y-H marine motor is approved by China classification society that It is suitable to match with marine product as a boiler feed pump of for other use .
Explosion-proof Electric Pumps
Our product driven by YB type explosion-proof motor is suitable for various class explosion dangerous environments.
Electric motor
Full-enclosed air-blast two-pole standard motor
protection class : IP55
Insulation class : F
Standard voltage : 50Hz :1×220-230/240V
3×200-220/346-380V
3×220-240/380-415V
3×380-415V
60Hz :3×200-230/346-400V
3×220-255/380-440V
3×220-277/380-480V

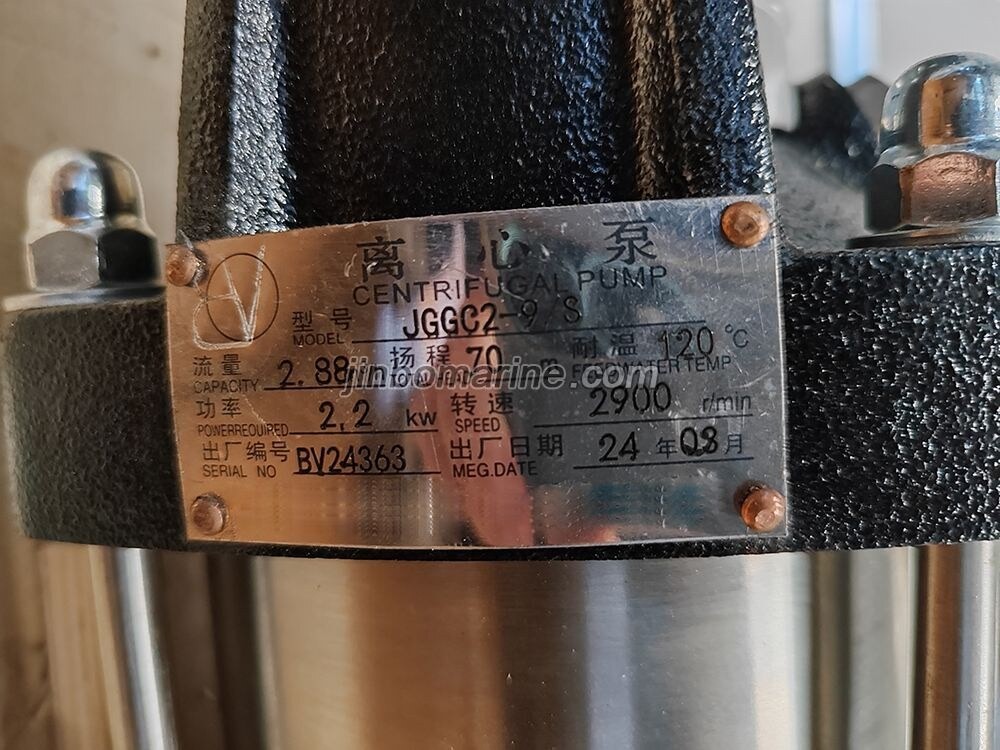

Data Sheet:
Model | JGGC2-9/S |
Capacity | 2.88m3/hour |
Total Head | 70m |
Power | 2.2kw |
Speed | 2900r/min |
Temperature resistance | 120℃ |

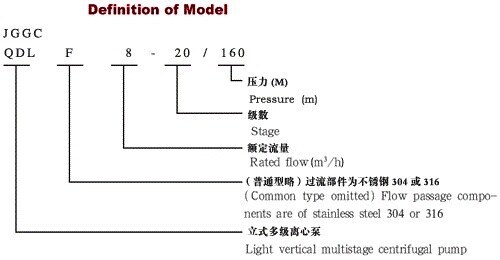

JGGC Series Marine Centrifugal Pump
Model | Stages | Standard voltage:50Hz 380V | Standard voltage:60Hz 440V | efficiency | ||||||
n:Speed(r/min)2900 | n:Speed(r/min)3500 | |||||||||
Rated flow | Pressure | Motor | Rated flow | Pressure | Motor | |||||
n | m3/h | l/s | m | kw | m3/h | l/s | m | kw | % | |
JGGC0.6 QDLF0.6 |
2 | 0.3 | 0.08 | 17 | 0.55 | 0.36 | 0.1 | 24.9 | 0.75 | 12.5 |
0.6 | 0.16 | 16 | 0.72 | 0.19 | 22.9 | 18 | ||||
0.8 | 0.22 | 14.6 | 0.96 | 0.26 | 20.9 | 22 | ||||
3 | 0.3 | 0.08 | 25.5 | 0.55 | 0.36 | 0.1 | 36.4 | 0.75 | 12.5 | |
0.6 | 0.16 | 24 | 0.72 | 0.19 | 34.3 | 18 | ||||
0.8 | 0.22 | 21.9 | 0.96 | 0.26 | 31.3 | 22 | ||||
4 | 0.3 | 0.08 | 34 | 0.55 | 0.36 | 0.1 | 48.6 | 0.75 | 12.5 | |
0.6 | 0.16 | 32 | 0.72 | 0.19 | 45.7 | 18 | ||||
0.8 | 0.22 | 29.2 | 0.96 | 0.26 | 41.7 | 22 | ||||
5 | 0.3 | 0.08 | 42.5 | 0.75 | 0.36 | 0.1 | 60.7 | 1.1 | 12.5 | |
0.6 | 0.16 | 40 | 0.72 | 0.19 | 57.1 | 18 | ||||
0.8 | 0.22 | 36.5 | 0.96 | 0.26 | 52.1 | 22 | ||||
6 | 0.3 | 0.08 | 51 | 0.75 | 0.36 | 0.1 | 72.9 | 1.1 | 12.5 | |
0.6 | 0.16 | 48 | 0.72 | 0.19 | 68.6 | 18 | ||||
0.8 | 0.22 | 43.8 | 0.96 | 0.26 | 62.6 | 22 | ||||
7 | 0.3 | 0.08 | 59.5 | 0.75 | 0.36 | 0.1 | 85 | 1.1 | 12.5 | |
0.6 | 0.16 | 56 | 0.72 | 0.19 | 80 | 18 | ||||
0.8 | 0.22 | 51.1 | 0.96 | 0.26 | 73 | 22 | ||||
8 | 0.3 | 0.08 | 68 | 1.1 | 0.36 | 0.1 | 97.1 | 1.5 | 12.5 | |
0.6 | 0.16 | 64 | 0.72 | 0.19 | 91.4 | 18 | ||||
0.8 | 0.22 | 58.4 | 0.96 | 0.26 | 83.4 | 22 | ||||
9 | 0.3 | 0.08 | 76.5 | 1.1 | 0.36 | 0.1 | 109.3 | 1.5 | 12.5 | |
0.6 | 0.16 | 72 | 0.72 | 0.19 | 102.9 | 18 | ||||
0.8 | 0.22 | 65.7 | 0.96 | 0.26 | 93.9 | 22 | ||||
10 | 0.3 | 0.08 | 85 | 1.1 | 0.36 | 0.1 | 121.4 | 1.5 | 12.5 | |
0.6 | 0.16 | 80 | 0.72 | 0.19 | 114.3 | 18 | ||||
0.8 | 0.22 | 73 | 0.96 | 0.26 | 104.3 | 22 | ||||
11 | 0.3 | 0.08 | 93.5 | 1.1 | 0.36 | 0.1 | 133.6 | 1.5 | 12.5 | |
0.6 | 0.16 | 88 | 0.72 | 0.19 | 125.7 | 18 | ||||
0.8 | 0.22 | 80.3 | 0.96 | 0.26 | 114.7 | 22 | ||||
12 | 0.3 | 0.08 | 102 | 1.1 | 0.36 | 0.1 | 145.7 | 2.2 | 12.5 | |
0.6 | 0.16 | 96 | 0.72 | 0.19 | 137.1 | 18 | ||||
0.8 | 0.22 | 87.6 | 0.96 | 0.26 | 125.1 | 22 | ||||
13 | 0.3 | 0.08 | 110.5 | 1.5 | 0.36 | 0.1 | 157.9 | 2.2 | 12.5 | |
0.6 | 0.16 | 104 | 0.72 | 0.19 | 148.6 | 18 | ||||
0.8 | 0.22 | 94.9 | 0.96 | 0.26 | 135.6 | 22 | ||||
14 | 0.3 | 0.08 | 119 | 1.5 | 0.36 | 0.1 | 170 | 2.2 | 12.5 | |
0.6 | 0.16 | 112 | 0.72 | 0.19 | 160 | 18 | ||||
0.8 | 0.22 | 102.2 | 0.96 | 0.26 | 146 | 22 | ||||
15 | 0.3 | 0.08 | 127.5 | 1.5 | 0.36 | 0.1 | 182.1 | 2.2 | 12.5 | |
0.6 | 0.16 | 120 | 0.72 | 0.19 | 171.4 | 18 | ||||
0.8 | 0.22 | 109.5 | 0.96 | 0.26 | 156.4 | 22 | ||||
16 | 0.3 | 0.08 | 136 | 1.5 | 0.36 | 0.1 | 194.3 | 2.2 | 12.5 | |
0.6 | 0.16 | 128 | 0.72 | 0.19 | 182.9 | 18 | ||||
0.8 | 0.22 | 116.8 | 0.96 | 0.26 | 166.9 | 22 | ||||
17 | 0.3 | 0.08 | 144.5 | 1.5 | 0.36 | 0.1 | 206.4 | 3 | 12.5 | |
0.6 | 0.16 | 136 | 0.72 | 0.19 | 194.3 | 18 | ||||
0.8 | 0.22 | 124.1 | 0.96 | 0.26 | 177.3 | 22 | ||||
18 | 0.3 | 0.08 | 153 | 2.2 | 0.36 | 0.1 | 218.6 | 3 | 12.5 | |
0.6 | 0.16 | 144 | 0.72 | 0.19 | 205.7 | 18 | ||||
0.8 | 0.22 | 131.4 | 0.96 | 0.26 | 187.7 | 22 | ||||
19 | 0.3 | 0.08 | 161.5 | 2.2 | 0.36 | 0.1 | 230.7 | 3 | 12.5 | |
0.6 | 0.16 | 152 | 0.72 | 0.19 | 217.1 | 18 | ||||
0.8 | 0.22 | 138.7 | 0.96 | 0.26 | 198.1 | 22 | ||||
20 | 0.3 | 0.08 | 170 | 2.2 | 0.36 | 0.1 | 242.9 | 4 | 12.5 | |
0.6 | 0.16 | 160 | 0.72 | 0.19 | 228.6 | 18 | ||||
0.8 | 0.22 | 146 | 0.96 | 0.26 | 208.6 | 22 | ||||
21 | 0.3 | 0.08 | 178.5 | 2.2 | 0.36 | 0.1 | 255 | 4 | 12.5 | |
0.6 | 0.16 | 168 | 0.72 | 0.19 | 240 | 18 | ||||
0.8 | 0.22 | 153.3 | 0.96 | 0.26 | 219 | 22 | ||||
22 | 0.3 | 0.08 | 187 | 2.2 | 0.36 | 0.1 | 267.1 | 4 | 12.5 | |
0.6 | 0.16 | 176 | 0.72 | 0.19 | 251.4 | 18 | ||||
0.8 | 0.22 | 160.6 | 0.96 | 0.26 | 229.4 | 22 | ||||
(NPSH)r:2m | ||||||||||
(D.of lmpel)φ:95mm | ||||||||||
JGGC 2.4 Series vertical multi-stage centrifugal pump | ||||||||||
Model | Stages | Standard voltage:50Hz 380V | Standard voltage:60Hz 440V | efficiency | ||||||
n:Speed(r/min)2900 | n:Speed(r/min)3500 | |||||||||
Rated flow | Pressure | Motor | Rated flow | Pressure | Motor | |||||
n | m3/h | l/s | m | kw | m3/h | l/s | m | kw | % | |
JGGC2.4 QDLF2.4 |
2 | 1 | 0.28 | 18 | 0.55 | 1.2 | 0.34 | 25.7 | 1.1 | 32 |
2 | 0.56 | 17 | 2.4 | 0.67 | 24.3 | 38 | ||||
2.4 | 0.67 | 16 | 2.88 | 0.8 | 22.9 | 39 | ||||
3 | 1 | 0.28 | 27 | 0.75 | 1.2 | 0.34 | 38.6 | 1.1 | 32 | |
2 | 0.56 | 25.5 | 2.4 | 0.67 | 36.4 | 38 | ||||
2.4 | 0.67 | 24 | 2.88 | 0.8 | 34.3 | 39 | ||||
4 | 1 | 0.28 | 36 | 1.1 | 1.2 | 0.34 | 51.4 | 1.5 | 32 | |
2 | 0.56 | 34 | 2.4 | 0.67 | 48.6 | 38 | ||||
2.4 | 0.67 | 32 | 2.88 | 0.8 | 45.7 | 39 | ||||
5 | 1 | 0.28 | 45 | 1.1 | 1.2 | 0.34 | 64.3 | 1.5 | 32 | |
2 | 0.56 | 42.5 | 2.4 | 0.67 | 60.7 | 38 | ||||
2.4 | 0.67 | 40 | 2.88 | 0.8 | 57.1 | 39 | ||||
6 | 1 | 0.28 | 54 | 1.5 | 1.2 | 0.34 | 77.1 | 2.2 | 32 | |
2 | 0.56 | 51 | 2.4 | 0.67 | 72.9 | 38 | ||||
2.4 | 0.67 | 48 | 2.88 | 0.8 | 68.6 | 39 | ||||
7 | 1 | 0.28 | 63 | 1.5 | 1.2 | 0.34 | 90 | 2.2 | 32 | |
2 | 0.56 | 59.5 | 2.4 | 0.67 | 85 | 38 | ||||
2.4 | 0.67 | 56 | 2.88 | 0.8 | 80 | 39 | ||||
8 | 1 | 0.28 | 72 | 1.5 | 1.2 | 0.34 | 102.9 | 2.2 | 32 | |
2 | 0.56 | 68 | 2.4 | 0.67 | 97.1 | 38 | ||||
2.4 | 0.67 | 64 | 2.88 | 0.8 | 91.4 | 39 | ||||
9 | 1 | 0.28 | 81 | 1.5 | 1.2 | 0.34 | 115.7 | 2.2 | 32 | |
2 | 0.56 | 76.5 | 2.4 | 0.67 | 109.3 | 38 | ||||
2.4 | 0.67 | 72 | 2.88 | 0.8 | 102.9 | 39 | ||||
10 | 1 | 0.28 | 90 | 1.5 | 1.2 | 0.34 | 128.6 | 3 | 32 | |
2 | 0.56 | 85 | 2.4 | 0.67 | 121.4 | 38 | ||||
2.4 | 0.67 | 80 | 2.88 | 0.8 | 114.3 | 39 | ||||
11 | 1 | 0.28 | 99 | 2.2 | 1.2 | 0.34 | 141.4 | 3 | 32 | |
2 | 0.56 | 93.5 | 2.4 | 0.67 | 133.6 | 38 | ||||
2.4 | 0.67 | 88 | 2.88 | 0.8 | 125.7 | 39 | ||||
12 | 1 | 0.28 | 108 | 2.2 | 1.2 | 0.34 | 154.3 | 3 | 32 | |
2 | 0.56 | 102 | 2.4 | 0.67 | 145.7 | 38 | ||||
2.4 | 0.67 | 96 | 2.88 | 0.8 | 137.1 | 39 | ||||
13 | 1 | 0.28 | 117 | 2.2 | 1.2 | 0.34 | 167.1 | 3 | 32 | |
2 | 0.56 | 110.5 | 2.4 | 0.67 | 157.9 | 38 | ||||
2.4 | 0.67 | 104 | 2.88 | 0.8 | 148.6 | 39 | ||||
14 | 1 | 0.28 | 126 | 2.2 | 1.2 | 0.34 | 180 | 4 | 32 | |
2 | 0.56 | 119 | 2.4 | 0.67 | 170 | 38 | ||||
2.4 | 0.67 | 112 | 2.88 | 0.8 | 160 | 39 | ||||
15 | 1 | 0.28 | 135 | 2.2 | 1.2 | 0.34 | 192.9 | 4 | 32 | |
2 | 0.56 | 127.5 | 2.4 | 0.67 | 182.1 | 38 | ||||
2.4 | 0.67 | 120 | 2.88 | 0.8 | 171.4 | 39 | ||||
16 | 1 | 0.28 | 144 | 3 | 1.2 | 0.34 | 205.7 | 4 | 32 | |
2 | 0.56 | 136 | 2.4 | 0.67 | 194.3 | 38 | ||||
2.4 | 0.67 | 128 | 2.88 | 0.8 | 182.9 | 39 | ||||
17 | 1 | 0.28 | 153 | 3 | 1.2 | 0.34 | 218.6 | 4 | 32 | |
2 | 0.56 | 144.5 | 2.4 | 0.67 | 206.4 | 38 | ||||
2.4 | 0.67 | 136 | 2.88 | 0.8 | 194.3 | 39 | ||||
18 | 1 | 0.28 | 162 | 3 | 1.2 | 0.34 | 231.4 | 4 | 32 | |
2 | 0.56 | 153 | 2.4 | 0.67 | 218.6 | 38 | ||||
2.4 | 0.67 | 144 | 2.88 | 0.8 | 205.7 | 39 | ||||
19 | 1 | 0.28 | 171 | 3 | 1.2 | 0.34 | 244.3 | 4 | 32 | |
2 | 0.56 | 161.5 | 2.4 | 0.67 | 230.7 | 38 | ||||
2.4 | 0.67 | 152 | 2.88 | 0.8 | 217.1 | 39 | ||||
20 | 1 | 0.28 | 180 | 3 | 1.2 | 0.34 | 257.1 | 5.5 | 32 | |
2 | 0.56 | 170 | 2.4 | 0.67 | 242.9 | 38 | ||||
2.4 | 0.67 | 160 | 2.88 | 0.8 | 228.6 | 39 | ||||
21 | 1 | 0.28 | 189 | 3 | 1.2 | 0.34 | 270 | 5.5 | 32 | |
2 | 0.56 | 178.5 | 2.4 | 0.67 | 255 | 38 | ||||
2.4 | 0.67 | 168 | 2.88 | 0.8 | 240 | 39 | ||||
22 | 1 | 0.28 | 198 | 4 | 1.2 | 0.34 | 282.9 | 5.5 | 32 | |
2 | 0.56 | 187 | 2.4 | 0.67 | 267.1 | 38 | ||||
2.4 | 0.67 | 176 | 2.88 | 0.8 | 251.4 | 39 | ||||
(NPSH)r:2m | ||||||||||
(D.of lmpel)φ:95mm | ||||||||||
JGGC4 Series vertical multi-stage centrifugal pump | ||||||||||
Model | Stages | Standard voltage:50Hz 380V | Standard voltage:60Hz 440V | efficiency | ||||||
n:Speed(r/min)2900 | n:Speed(r/min)3500 | |||||||||
Rated flow | Pressure | Motor | Rated flow | Pressure | Motor | |||||
n | m3/h | l/s | m | kw | m3/h | l/s | m | kw | % | |
JGGC4 QDLF4 |
2 | 3 | 0.83 | 17 | 0.75 | 3.6 | 1 | 24.3 | 1.1 | 46 |
4 | 1.11 | 16 | 4.8 | 1.33 | 22.9 | 48 | ||||
4.8 | 1.33 | 15 | 5.8 | 1.6 | 21.4 | 53 | ||||
3 | 3 | 0.83 | 25.5 | 0.75 | 3.6 | 1 | 36.4 | 1.1 | 46 | |
4 | 1.11 | 24 | 4.8 | 1.33 | 34.3 | 48 | ||||
4.8 | 1.33 | 22.5 | 5.8 | 1.6 | 32.1 | 53 | ||||
4 | 3 | 0.83 | 1.1 | 3.6 | 1 | 48.6 | 1.5 | 46 | ||
4 | 1.11 | 34 | 4.8 | 1.33 | 45.8 | 48 | ||||
4.8 | 1.33 | 32 | 5.8 | 1.6 | 42.9 | 53 | ||||
30 | ||||||||||
5 | 3 | 0.83 | 42.5 | 1.1 | 3.6 | 1 | 60.7 | 2.2 | 46 | |
4 | 1.11 | 40 | 4.8 | 1.33 | 57.1 | 48 | ||||
4.8 | 1.33 | 37.5 | 5.8 | 1.6 | 53.6 | 53 | ||||
6 | 3 | 0.83 | 51 | 1.5 | 3.6 | 1 | 72.9 | 2.2 | 46 | |
4 | 1.11 | 48 | 4.8 | 1.33 | 68.6 | 48 | ||||
4.8 | 1.33 | 45 | 5.8 | 1.6 | 64.3 | 53 | ||||
7 | 3 | 0.83 | 59.5 | 1.5 | 3.6 | 1 | 85 | 2.2 | 46 | |
4 | 1.11 | 56 | 4.8 | 1.33 | 80 | 48 | ||||
4.8 | 1.33 | 52.5 | 5.8 | 1.6 | 75 | 53 | ||||
8 | 3 | 0.83 | 68 | 2.2 | 3.6 | 1 | 97.1 | 3 | 46 | |
4 | 1.11 | 64 | 4.8 | 1.33 | 91.4 | 48 | ||||
4.8 | 1.33 | 60 | 5.8 | 1.6 | 85.7 | 53 | ||||
9 | 3 | 0.83 | 76.5 | 2.2 | 3.6 | 1 | 109.3 | 3 | 46 | |
4 | 1.11 | 72 | 4.8 | 1.33 | 102.9 | 48 | ||||
4.8 | 1.33 | 67.5 | 5.8 | 1.6 | 96.4 | 53 | ||||
10 | 3 | 0.83 | 85 | 2.2 | 3.6 | 1 | 121.4 | 3 | 46 | |
4 | 1.11 | 80 | 4.8 | 1.33 | 114.3 | 48 | ||||
4.8 | 1.33 | 75 | 5.8 | 1.6 | 107.1 | 53 | ||||
11 | 3 | 0.83 | 93.5 | 2.2 | 3.6 | 1 | 133.6 | 4 | 46 | |
4 | 1.11 | 88 | 4.8 | 1.33 | 125.7 | 48 | ||||
4.8 | 1.33 | 82.5 | 5.8 | 1.6 | 117.9 | 53 | ||||
12 | 3 | 0.83 | 102 | 3 | 3.6 | 1 | 145.7 | 4 | 46 | |
4 | 1.11 | 96 | 4.8 | 1.33 | 137.1 | 48 | ||||
4.8 | 1.33 | 90 | 5.8 | 1.6 | 128.6 | 53 | ||||
13 | 3 | 0.83 | 110 | 3 | 3.6 | 1 | 157.1 | 4 | 46 | |
4 | 1.11 | 104 | 4.8 | 1.33 | 148.6 | 48 | ||||
4.8 | 1.33 | 97 | 5.8 | 1.6 | 138.6 | 53 | ||||
14 | 3 | 0.83 | 119 | 3 | 3.6 | 1 | 170 | 4 | 46 | |
4 | 1.11 | 112 | 4.8 | 1.33 | 160 | 48 | ||||
4.8 | 1.33 | 105 | 5.8 | 1.6 | 150 | 53 | ||||
15 | 3 | 0.83 | 127 | 3 | 3.6 | 1 | 181.4 | 5.5 | 46 | |
4 | 1.11 | 120 | 4.8 | 1.33 | 171.4 | 48 | ||||
4.8 | 1.33 | 112 | 5.8 | 1.6 | 160 | 53 | ||||
16 | 3 | 0.83 | 136 | 3 | 3.6 | 1 | 194.3 | 5.5 | 46 | |
4 | 1.11 | 128 | 4.8 | 1.33 | 182.9 | 48 | ||||
4.8 | 1.33 | 120 | 5.8 | 1.6 | 171.4 | 53 | ||||
17 | 3 | 0.83 | 144 | 4 | 3.6 | 1 | 205.7 | 5.5 | 46 | |
4 | 1.11 | 136 | 4.8 | 1.33 | 194.3 | 48 | ||||
4.8 | 1.33 | 127 | 5.8 | 1.6 | 181.4 | 53 | ||||
18 | 3 | 0.83 | 153 | 4 | 3.6 | 1 | 218.6 | 5.5 | 46 | |
4 | 1.11 | 144 | 4.8 | 1.33 | 205.7 | 48 | ||||
4.8 | 1.33 | 135 | 5.8 | 1.6 | 192.9 | 53 | ||||
19 | 3 | 0.83 | 161 | 4 | 3.6 | 1 | 230 | 7.5 | 46 | |
4 | 1.11 | 152 | 4.8 | 1.33 | 217.1 | 48 | ||||
4.8 | 1.33 | 142 | 5.8 | 1.6 | 202.9 | 53 | ||||
20 | 3 | 0.83 | 170 | 4 | 3.6 | 1 | 242.9 | 7.5 | 46 | |
4 | 1.11 | 160 | 4.8 | 1.33 | 228.6 | 48 | ||||
4.8 | 1.33 | 150 | 5.8 | 1.6 | 214.3 | 53 | ||||
21 | 3 | 0.83 | 178 | 4 | 3.6 | 1 | 254.3 | 7.5 | 46 | |
4 | 1.11 | 168 | 4.8 | 1.33 | 240 | 48 | ||||
4.8 | 1.33 | 157 | 5.8 | 1.6 | 224.3 | 53 | ||||
22 | 3 | 0.83 | 187 | 4 | 3.6 | 1 | 267.1 | 7.5 | 46 | |
4 | 1.11 | 176 | 4.8 | 1.33 | 251.4 | 48 | ||||
4.8 | 1.33 | 165 | 5.8 | 1.6 | 235.7 | 53 | ||||
(NPSH)r:2m | ||||||||||
(D.of lmpel)φ:95mm | ||||||||||
JGGC 8 Series vertical multi-stage centrifugal pump | ||||||||||
Model | Stages | Standard voltage:50Hz 380V | Standard voltage:60Hz 440V | efficiency | ||||||
n:Speed(r/min)2900 | n:Speed(r/min)3500 | |||||||||
Rated flow | Pressure | Motor | Rated flow | Pressure | Motor | |||||
n | m3/h | l/s | m | kw | m3/h | l/s | m | kw | % | |
JGGC8 QDLF8 |
2 | 6 | 1.67 | 18 | 1.1 | 7.2 | 2 | 25.7 | 1.5 | 52 |
8 | 2.22 | 16 | 9.6 | 2.67 | 22.9 | 55 | ||||
10 | 2.78 | 13.6 | 12 | 3.34 | 19.4 | 57 | ||||
3 | 6 | 1.67 | 27 | 1.5 | 7.2 | 2 | 38.6 | 2.2 | 52 | |
8 | 2.22 | 24 | 9.6 | 2.67 | 34.3 | 55 | ||||
10 | 2.78 | 20.4 | 12 | 3.34 | 29.1 | 57 | ||||
4 | 6 | 1.67 | 36 | 2.2 | 7.2 | 2 | 51.4 | 3 | 52 | |
8 | 2.22 | 32 | 9.6 | 2.67 | 45.7 | 55 | ||||
10 | 2.78 | 27.2 | 12 | 3.34 | 38.9 | 57 | ||||
5 | 6 | 1.67 | 45 | 2.2 | 7.2 | 2 | 64.7 | 3 | 52 | |
8 | 2.22 | 40 | 9.6 | 2.67 | 57.1 | 55 | ||||
10 | 2.78 | 34 | 12 | 3.34 | 48.6 | 57 | ||||
6 | 6 | 1.67 | 54 | 2.2 | 7.2 | 2 | 77.1 | 4 | 52 | |
8 | 2.22 | 48 | 9.6 | 2.67 | 68.6 | 55 | ||||
10 | 2.78 | 40.8 | 12 | 3.34 | 58.3 | 57 | ||||
7 | 6 | 1.67 | 63 | 3 | 7.2 | 2 | 90 | 4 | 52 | |
8 | 2.22 | 56 | 9.6 | 2.67 | 80 | 55 | ||||
10 | 2.78 | 47.6 | 12 | 3.34 | 68 | 57 | ||||
8 | 6 | 1.67 | 72 | 3 | 7.2 | 2 | 102.9 | 5.5 | 52 | |
8 | 2.22 | 64 | 9.6 | 2.67 | 91.4 | 55 | ||||
10 | 2.78 | 54.4 | 12 | 3.34 | 77.7 | 57 | ||||
9 | 6 | 1.67 | 81 | 4 | 7.2 | 2 | 115.7 | 5.5 | 52 | |
8 | 2.22 | 72 | 9.6 | 2.67 | 102.9 | 55 | ||||
10 | 2.78 | 61.2 | 12 | 3.34 | 84.7 | 57 | ||||
10 | 6 | 1.67 | 90 | 4 | 7.2 | 2 | 128.6 | 5.5 | 52 | |
8 | 2.22 | 80 | 9.6 | 2.67 | 114.3 | 55 | ||||
10 | 2.78 | 68 | 12 | 3.34 | 97.1 | 57 | ||||
11 | 6 | 1.67 | 99 | 4 | 7.2 | 2 | 141.4 | 7.5 | 52 | |
8 | 2.22 | 88 | 9.6 | 2.67 | 125.7 | 55 | ||||
10 | 2.78 | 74.8 | 12 | 3.34 | 106.9 | 57 | ||||
12 | 6 | 1.67 | 108 | 5.5 | 7.2 | 2 | 154.3 | 7.5 | 52 | |
8 | 2.22 | 96 | 9.6 | 2.67 | 137.1 | 55 | ||||
10 | 2.78 | 81.6 | 12 | 3.34 | 116.6 | 57 | ||||
13 | 6 | 1.67 | 117 | 5.5 | 7.2 | 2 | 167.1 | 7.5 | 52 | |
8 | 2.22 | 104 | 9.6 | 2.67 | 148.6 | 55 | ||||
10 | 2.78 | 88.4 | 12 | 3.34 | 126.3 | 57 | ||||
14 | 6 | 1.67 | 126 | 5.5 | 7.2 | 2 | 180 | 7.5 | 52 | |
8 | 2.22 | 112 | 9.6 | 2.67 | 160 | 55 | ||||
10 | 2.78 | 95.2 | 12 | 3.34 | 136 | 57 | ||||
15 | 6 | 1.67 | 135 | 5.5 | 7.2 | 2 | 192.9 | 7.5 | 52 | |
8 | 2.22 | 120 | 9.6 | 2.67 | 171.4 | 55 | ||||
10 | 2.78 | 102 | 12 | 3.34 | 145.7 | 57 | ||||
16 | 6 | 1.67 | 144 | 5.5 | 7.2 | 2 | 205.7 | 11 | 52 | |
8 | 2.22 | 128 | 9.6 | 2.67 | 182.9 | 55 | ||||
10 | 2.78 | 109 | 12 | 3.34 | 155.7 | 57 | ||||
17 | 6 | 1.67 | 153 | 7.5 | 7.2 | 2 | 218.6 | 11 | 52 | |
8 | 2.22 | 136 | 9.6 | 2.67 | 194.3 | 55 | ||||
10 | 2.78 | 115 | 12 | 3.34 | 164.3 | 57 | ||||
18 | 6 | 1.67 | 162 | 7.5 | 7.2 | 2 | 231.4 | 11 | 52 | |
8 | 2.22 | 144 | 9.6 | 2.67 | 205.7 | 55 | ||||
10 | 2.78 | 122 | 12 | 3.34 | 174.3 | 57 | ||||
19 | 6 | 1.67 | 171 | 7.5 | 7.2 | 2 | 244.3 | 11 | 52 | |
8 | 2.22 | 152 | 9.6 | 2.67 | 217.1 | 55 | ||||
10 | 2.78 | 129 | 12 | 3.34 | 184.3 | 57 | ||||
20 | 6 | 1.67 | 180 | 7.5 | 7.2 | 2 | 257.1 | 15 | 52 | |
8 | 2.22 | 160 | 9.6 | 2.67 | 228.6 | 55 | ||||
10 | 2.78 | 136 | 12 | 3.34 | 194.3 | 57 | ||||
21 | 6 | 1.67 | 189 | 7.5 | 7.2 | 2 | 270 | 15 | 52 | |
8 | 2.22 | 168 | 9.6 | 2.67 | 240 | 55 | ||||
10 | 2.78 | 143 | 12 | 3.34 | 204.3 | 57 | ||||
22 | 6 | 1.67 | 198 | 7.5 | 7.2 | 2 | 282.9 | 15 | 52 | |
8 | 2.22 | 176 | 9.6 | 2.67 | 251.4 | 55 | ||||
10 | 2.78 | 150 | 12 | 3.34 | 214.3 | 57 | ||||
(NPSH)r:2m | ||||||||||
(D.of lmpel)φ:95mm | ||||||||||
JGGC 12.5 Series vertical multi-stage centrifugal pump | ||||||||||
Model | Stages | Standard voltag e:50Hz 380V | Standard voltage:60Hz 440V | efficiency | ||||||
n:Speed(r/min)2950 | n:Speed(r/min)3540 | |||||||||
Rated flow | Pressure | Motor | Rated flow | Pressure | Motor | |||||
n | m3/h | l/s | m | kw | m3/h | l/s | m | kw | % | |
JGGC12.5 | 2 | 9 | 2.5 | 32 | 2.2 | 10.8 | 3 | 45 | 4 | 54 |
QDLF12.5 | 12.5 | 3.74 | 30 | 15 | 4.17 | 42 | 60 | |||
16 | 4.44 | 27 | 19.2 | 5.33 | 38 | 60 | ||||
3 | 9 | 2.5 | 48 | 3 | 10.8 | 3 | 68 | 5.5 | 54 | |
12.5 | 3.74 | 45 | 15 | 4.17 | 64 | 60 | ||||
16 | 4.44 | 40 | 19.2 | 5.33 | 57 | 60 | ||||
4 | 9 | 2.5 | 64 | 4 | 10.8 | 3 | 91 | 7.5 | 54 | |
12.5 | 3.74 | 60 | 15 | 4.17 | 85 | 60 | ||||
16 | 4.44 | 54 | 19.2 | 5.33 | 77 | 60 | ||||
5 | 9 | 2.5 | 80 | 5.5 | 10.8 | 3 | 114 | 11 | 54 | |
12.5 | 3.74 | 75 | 15 | 4.17 | 107 | 60 | ||||
16 | 4.44 | 67 | 19.2 | 5.33 | 95 | 60 | ||||
6 | 9 | 2.5 | 96 | 7.5 | 10.8 | 3 | 137 | 15 | 54 | |
12.5 | 3.74 | 90 | 15 | 4.17 | 128 | 60 | ||||
16 | 4.44 | 80 | 19.2 | 5.33 | 114 | 60 | ||||
7 | 9 | 2.5 | 112 | 7.5 | 10.8 | 3 | 160 | 15 | 54 | |
12.5 | 3.74 | 105 | 15 | 4.17 | 150 | 60 | ||||
16 | 4.44 | 94 | 19.2 | 5.33 | 134 | 60 | ||||
8 | 9 | 2.5 | 128 | 11 | 10.8 | 3 | 182 | 18.5 | 54 | |
12.5 | 3.74 | 120 | 15 | 4.17 | 171 | 60 | ||||
16 | 4.44 | 107 | 19.2 | 5.33 | 152 | 60 | ||||
9 | 9 | 2.5 | 144 | 11 | 10.8 | 3 | 205 | 18.5 | 54 | |
12.5 | 3.74 | 135 | 15 | 4.17 | 192 | 60 | ||||
16 | 4.44 | 121 | 19.2 | 5.33 | 172 | 60 | ||||
10 | 9 | 2.5 | 160 | 11 | 10.8 | 3 | 228 | 18.5 | 54 | |
12.5 | 3.74 | 150 | 15 | 4.17 | 214 | 60 | ||||
16 | 4.44 | 134 | 19.2 | 5.33 | 191 | 60 | ||||
11 | 9 | 2.5 | 176 | 11 | 10.8 | 3 | 252 | 18.5 | 54 | |
12.5 | 3.74 | 165 | 15 | 4.17 | 235 | 60 | ||||
16 | 4.44 | 147 | 19.2 | 5.33 | 210 | 60 | ||||
12 | 9 | 2.5 | 192 | 15 | 10.8 | 3 | 272 | 22 | 54 | |
12.5 | 3.74 | 180 | 15 | 4.17 | 257 | 60 | ||||
16 | 4.44 | 161 | 19.2 | 5.33 | 230 | 60 | ||||
13 | 9 | 2.5 | 208 | 15 | 10.8 | 3 | 297 | 22 | 54 | |
12.5 | 3.74 | 195 | 15 | 4.17 | 278 | 60 | ||||
16 | 4.44 | 174 | 19.2 | 5.33 | 248 | 60 | ||||
14 | 9 | 2.5 | 224 | 15 | 10.8 | 3 | 320 | 22 | 54 | |
12.5 | 3.74 | 210 | 15 | 4.17 | 300 | 60 | ||||
16 | 4.44 | 187 | 19.2 | 5.33 | 267 | 60 | ||||
(NPSH)r:2.5m | ||||||||||
(D.of lmpel)φ:119mm |
Tel: 86-23-68428875,68428422,68838417
Fax: 86-4008266163-88928
Email: sales@jinbomarine.com
