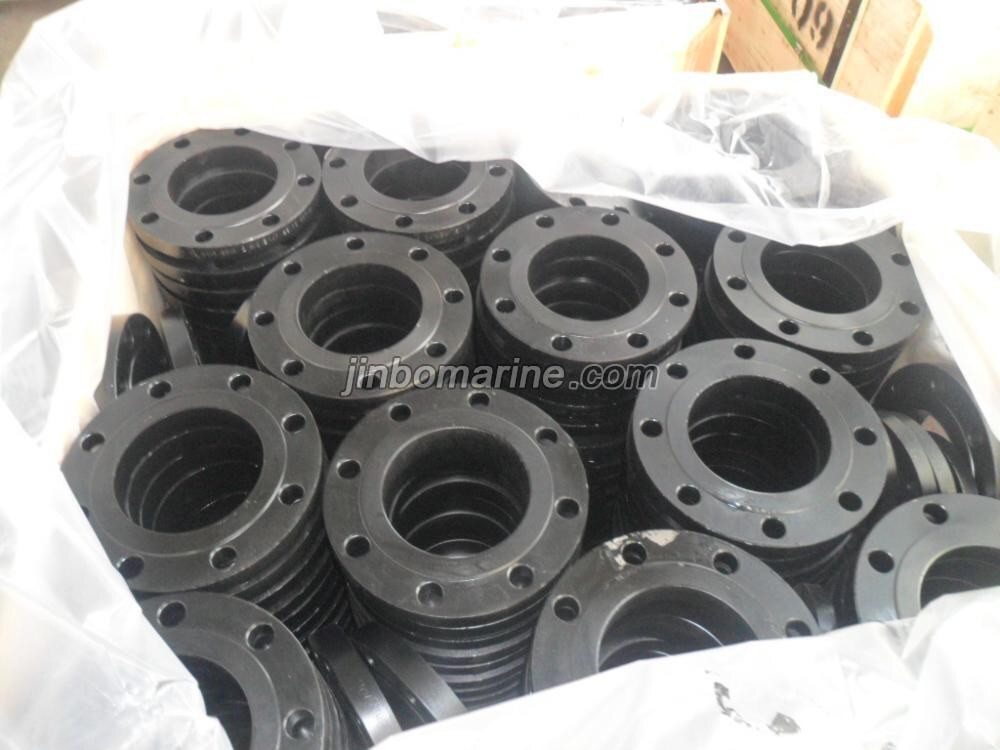

JIS B2220 SOP FF 10K Carbon Steel Plate Flange

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Product Description:

JIS B 2220 Steel Pipe SOP Flange Dimensions:DN20~DN300,3/4"~12"
JIS B 2220 Steel Pipe Pressure:10K
JIS B 2220 Steel Pipe SOP Flange Material:
Carbon Steel,STP G38,STP G42,STPT42,STB42,STS42,STPT49,STS49
10K SOP Flange Facing Types
American Series:Flat Face(FF)

JIS B2220 SOP FF 10K Plate Flange Surface treatment:

Black painting, anti-rust varnish, anti-rust oil or as per customer’s requirement.
JIS B2220 SOP FF 10K Plate Flange Packing:
Wooden case and wooden pallet.
JIS B2220 SOP FF 10K Plate Flange Delivery:
Within 25 days after getting necessary deposit or original L/C.
JIS B2220 SOP FF 10K Plate Flange Certificate
ISO 9001:2008,SGS,BV,etc

JIS B 2220 Dimensions of plate flanges for nominal pressure 10k FF SOP

Specification:

10K Plate Flange Nominal Size 10K Plate flange outer diameter Diameter of bolt
hole centre circle 		10K Plate Flange
Inside diameter 		Thickness Number of
bolt Diameter
of bolt hole

Nominal
designation
of thread
of bolt

DN D D1 D2 t n-d M
20 100 75 58 14 4-15 12
25 125 90 70 14 4-19 16
40 140 105 85 16 4-19 16
50 155 120 100 16 4-19 16
65 175 140 120 18 4-19 16
80 185 150 130 18 8-19 16
100 210 175 155 18 8-19 16
125 250 210 185 20 8-23 20
150 280 240 215 22 8-23 20
200 330 290 265 22 8-23 20
