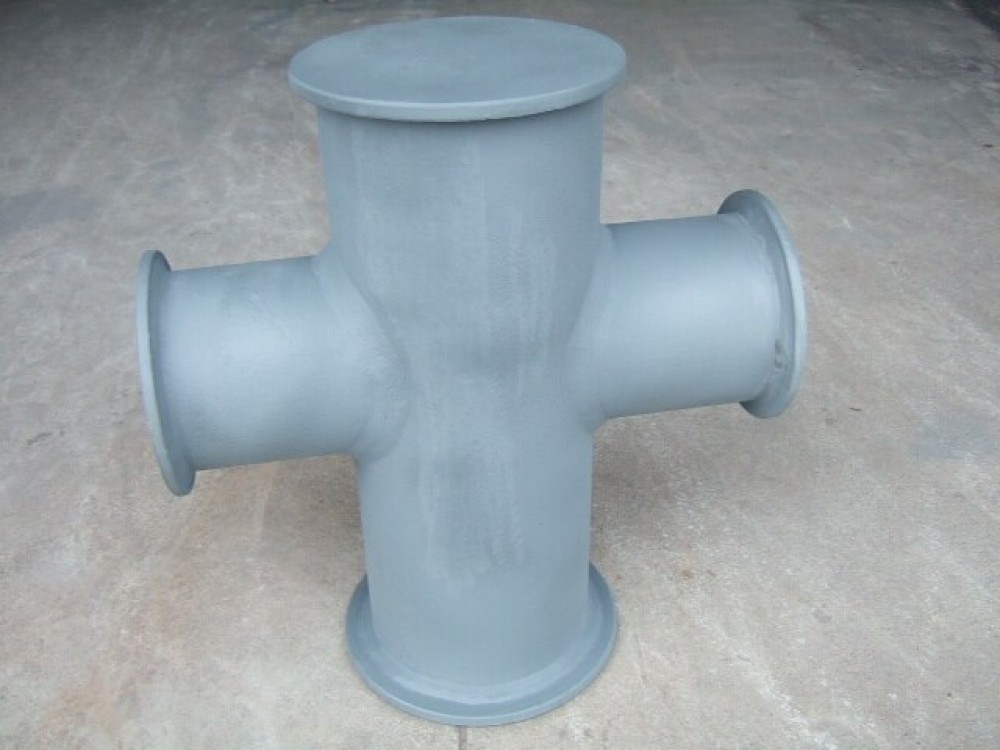

JIS F-2804 Single Cruciform Bollard
- Category:Marine Bollard
- Standards:JIS F-2804
- Material:steel plate,steel pipe.
- Certificate:mill certificate.
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Jis F 2804 Single Cruciform Bollard.pdf
Details
Feature:
1.Long working life
2.High quality with competitive price.
3.Can be customized.

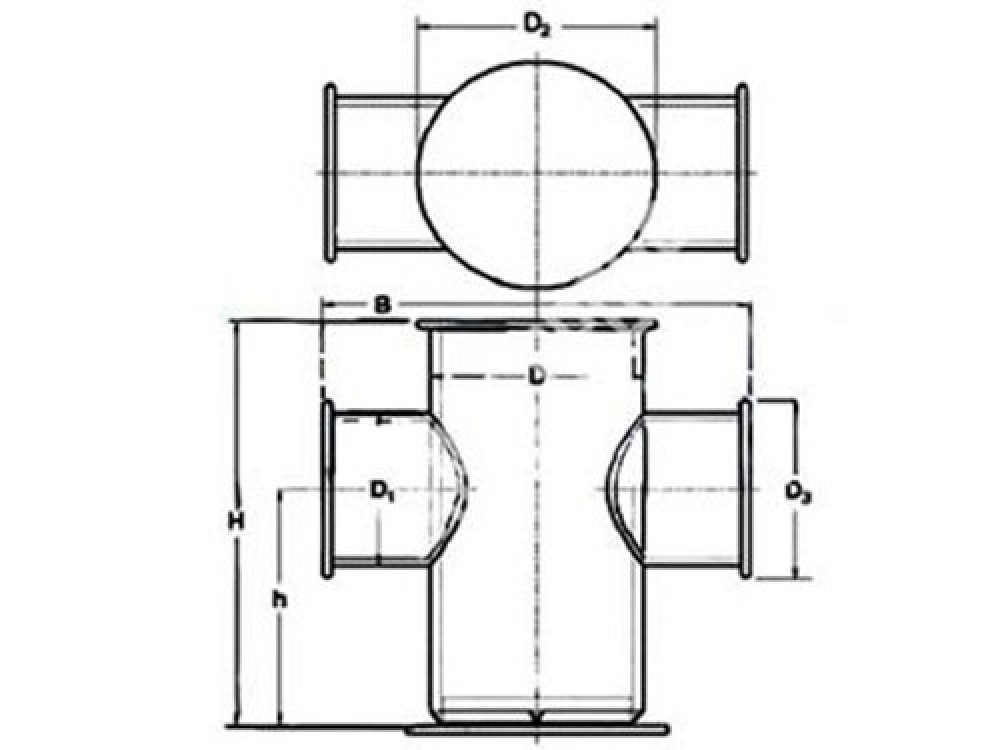

Dimension Table:
Single Cruciform Bollard JIS F-2804 | ||||||||||
Product No. | Nominal Dia.(mm) | Dimension(mm) | Wire Rope Dia.(mm) | |||||||
H | h | B | D | D1 | D2 | D3 | Weight(kg) | |||
SCB-001 | 150 | 480 | 280 | 460 | 165 | 114 | 206 | 158 | 33 | 16 |
SCB-002 | 200 | 560 | 320 | 520 | 216 | 165 | 256 | 206 | 60 | 22 |
SCB-003 | 250 | 640 | 360 | 610 | 267 | 216 | 308 | 256 | 102 | 28 |
SCB-004 | 300 | 680 | 380 | 660 | 318 | 267 | 360 | 308 | 154 | 34 |
SCB-005 | 350 | 720 | 420 | 720 | 355 | 267 | 400 | 312 | 186 | 38 |
Nominal size of double cruciform bollards:50mm,75mm,100mm,125mm,150mm,175mm,200mm,250mm,300mm
Our bollards can be used for steel cables and ropes.
Nice shaped, good quality and with very low mainteinance.
LR,BV,CCS Certificate could be provided
Material: Steel Q235 ( ASTM36, SS400); Steel Q345B ( ASTM572-50, SM490, 50B)
Operating Life:10~15 Years
Guarantee Periods: 2 Years
Certificate: CCS, BV, ABS, GL, NK, etc.
Epoxy paint is usually a preference of a customer.
This bollard is custom made to satisfy your special requirements.
We also customize bollard products for special requirements.
Core attributes:
A. High quality SG iron as standard
B. Strong and durable designs
C. Very low maintenance
D. Large line angles possible
E. Standard and custom anchors available
F. Specification and Type
G. Bollards are manufactured in a wide range of shapes, sizes and
capabilities. In general, the type bollard should alwayas well as the general
size ( i.e. height, head size, base size, etc) and load capacity.
